Mazda 2 DJ (2015 – 2023) Fuse Box Location & Diagrams
Mazda 2 DJ (2015–2023) fuse box locations and diagrams provide useful information for identifying fuses and their functions. This blog covers the fuse boxes, layouts, fuse ratings, and protected components, helping you quickly locate the correct fuse for electrical systems and troubleshooting needs.
Fuse Box Location
Passenger Compartment Fuse Box

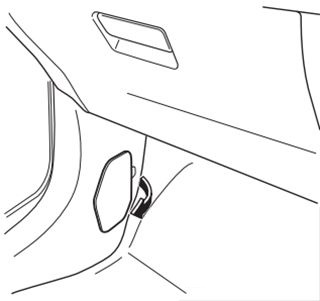

The cover is located on the left side of the passenger compartment, at the bottom, near the door (on the left-hand drive vehicles, it is also located there).

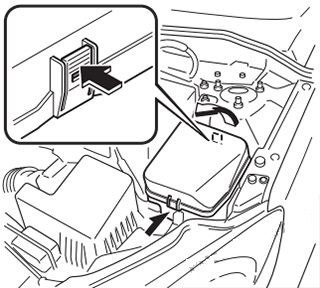

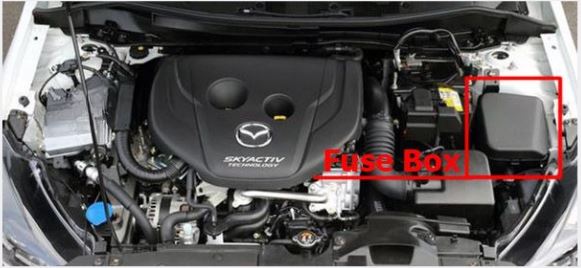

Engine Compartment Fuse Box
Fuse Box Diagrams

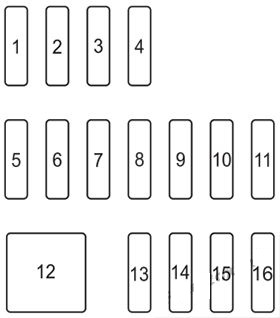

Passenger Compartment Fuse Box
| № | DESCRIPTION | AMP RATING | PROTECTED COMPONENT |
|---|---|---|---|
| 1 | — | — | — |
| 2 | — | — | — |
| 3 | — | — | — |
| 4 | — | — | — |
| 5 | F.OUTLET | 15 A | Accessory sockets |
| 6 | — | — | — |
| 7 | AT IND | 7.5 A | AT shift indicator (Some models) |
| 8 | MIRROR | 7.5 A | Power control mirror |
| 9 | — | — | — |
| 10 | P.WINDOW2 | 25 A | Power windows |
| 11 | R.WIPER | 15 A | Rear window wiper and washer |
| 12 | — 2017-2022: P.SEAT D | — 30 A | — 2023: Power seat* |
| 13 | — | — | — |
| 14 | SRS2/ESCL | 15 A | Electronic steering lock |
| 15 | SEAT WARM | 20 A | Seat warmer (Some models) |
| 16 | M.DEF | 7.5 A | Mirror defogger (Some models) |

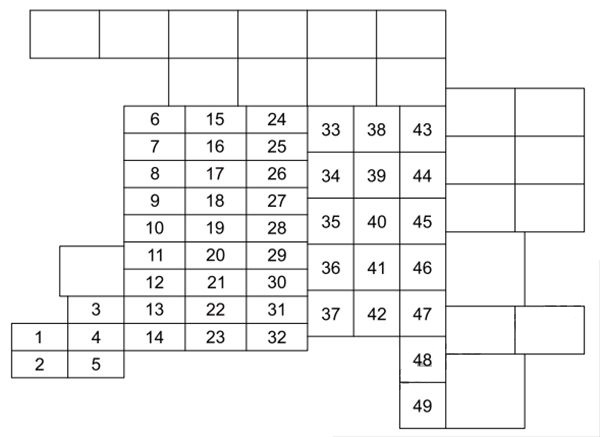

Engine Compartment Fuse Box
Mazda 2 DJ (2015 & 2016)
| № | DESCRIPTION | AMP RATING | PROTECTED COMPONENT |
|---|---|---|---|
| 1 | C/U IG1 | 15 A | For protection of various circuits |
| 2 | ENGINE IG1 | 7.5 A | Engine control system |
| 3 | SUNROOF | 10 A | — |
| 4 | INTERIOR | 15 A | Overhead light |
| 5 | ENG+B | 7.5 A | Engine control system |
| 6 | AUDIO2 | 15 A | Audio system |
| 7 | METER1 | 10 A | Instrument cluster |
| 8 | SRS1 | 7.5 A | Air bag |
| 9 | METER2 | 7.5 A | Instrument cluster (Some models) |
| 10 | RADIO | 7.5 A | Audio system |
| 11 | ENGINE3 | 15 A | Engine control system |
| 12 | ENGINE 1 | 15 A | Engine control system |
| 13 | ENGINE2 | 15 A | Engine control system |
| 14 | AUDIO1 | 25 A | Audio system |
| 15 | A/C MAG | 7.5 A | Air conditionerSome models (Some models) |
| 16 | AT PUMP | 15 A | Transaxle control system (Some models) |
| 17 | AT | 15 A | Transaxle control system (Some models) |
| 18 | D.LOCK | 25 A | Power door locks |
| 19 | H/L RH | 20 A | Headlight (RH) |
| 20 | ENG+B2 | 7.5 A | Engine control system |
| 21 | TAIL | 20 A | Tail lights, Number plate lights, Position lights |
| 22 | — | — | — |
| 23 | ROOM | 25 A | Overhead light |
| 24 | FOG | 15 A | Front fog lights (Some models) |
| 25 | H/CLEAN | 20 A | Headlight washer (Some models) |
| 26 | STOP | 10 A | Brake lights, Rear fog light (Some models) |
| 27 | HORN | 15 A | Horn |
| 28 | H/L LH | 20 A | Headlight (LH) |
| 29 | ABS/DSC S | 30 A | ABS, Dynamic stability control system (Some models) |
| 30 | HAZARD | 15 A | Hazard warning flashers, Direction indicator lights |
| 31 | FUEL PUMP | 15 A | Fuel system (Some models) |
| 32 | FUEL WARM | 25 A | Fuel warmer (Some models) |
| 33 | WIPER | 20 A | Front window wiper |
| 34 | CABIN+B | 50 A | For protection of various circuits |
| 35 | FAN2 | 30 A | Cooling fan (Some models) |
| 36 | FUEL PUMP | 30 A | — |
| 37 | ABS/DSC M | 50 A | ABS, Dynamic stability control system (Some models) |
| 38 | EVVT | 20 A | Engine control system (Some models) |
| 39 | — | — | — |
| 40 | FAN1 | 30 A | Cooling fan (Some models) |
| 41 | FAN 3 | 40 A | Cooling fan (Some models) |
| 42 | ENG.MAIN | 40 A | Engine control system |
| 43 | EPS | 60 A | Power steering system (Some models) |
| 44 | DEFOG | 40 A | Rear window defogger |
| 45 | 1G2 | 30 A | For protection of various circuits |
| 46 | INJECTOR | 30 A | Engine control system (Some models) |
| 47 | HEATER | 40 A | Air conditioner |
| 48 | P. WINDOW 1 | 30 A | Power windows |
| 49 | DCDC DE | 40 A | For protection of various circuits (Some models) |
Mazda 2 DJ (2017 – 2023)
| № | DESCRIPTION | AMP RATING | PROTECTED COMPONENT |
|---|---|---|---|
| 1 | C/U IG1 | 15 A | For protection of various circuits |
| 2 | ENGINE IG1 | 7.5 A | Engine control system |
| 3 | SUNROOF | 10 A | — |
| 4 | INTERIOR | 15 A | Overhead light 2019-2023: For protection of various circuits |
| 5 | ENG+B | 7.5 A | Engine control system |
| 6 | AUDIO2 | 15 A | Audio system/Engine Control System |
| 7 | METER1 | 10 A | Instrument cluster |
| 8 | SRS1 | 7.5 A | Air bag |
| 9 | METER2 | 7.5 A | Instrument cluster (Some models) |
| 10 | RADIO | 7.5 A | Audio system |
| 11 | ENGINE3 | 15 A | Engine control system |
| 12 | ENGINE 1 | 15 A | Engine control system |
| 13 | ENGINE2 | 15 A | Engine control system |
| 14 | AUDIO1 | 25 A | Audio system |
| 15 | A/C MAG | 7.5 A | Air conditionerSome models (Some models) |
| 16 | AT PUMP | 15 A | Transaxle control system (Some models) |
| 17 | AT | 15 A | Transaxle control system (Some models) |
| 18 | D.LOCK | 25 A | Power door locks |
| 19 | H/L RH | 20 A | Headlight (RH) |
| 20 | ENG+B2 | 7.5 A | Engine control system |
| 21 | TAIL | 20 A | Tail lights, Number plate lights, Position lights |
| 22 | ST.HEATER | 15 A | — |
| 22 | — | — 15A/20A | — 2019-2023: Heated steering wheel*/Adaptive LED Headlights (ALH)” |
| 23 | ROOM | 25 A | Overhead light 2019-2023: For protection of various circuits |
| 24 | FOG | 15 A | Front fog lights (Some models) 2019-2023: – |
| 25 | H/CLEAN | 20 A | Headlight washer (Some models) |
| 26 | STOP | 10 A | Brake lights, Rear fog light (Some models) |
| 27 | HORN | 15 A | Horn |
| 28 | H/L LH | 20 A | Headlight (LH) |
| 29 | ABS/DSC S | 30 A | ABS, Dynamic stability control system (Some models) |
| 30 | HAZARD | 15 A | Hazard warning flashers, Direction indicator lights |
| 31 | FUEL PUMP | 15 A | Fuel system (Some models) |
| 32 | FUEL WARM | 25 A | Fuel warmer (Some models) 2019-2023: – |
| 33 | WIPER | 20 A | Front window wiper |
| 34 | CABIN+B | 50 A | For protection of various circuits |
| 35 | FAN2 | 30 A | Cooling fan (Some models) |
| 36 | FUEL PUMP | 30 A | — |
| 37 | ABS/DSC M | 50 A | ABS, Dynamic stability control system (Some models) |
| 38 | EVVT | 20 A | Engine control system (Some models) |
| 39 | — | — | — |
| 40 | FAN1 | 30 A | Cooling fan (Some models) |
| 41 | FAN 3 | 40 A | Cooling fan (Some models) 2021: – |
| 42 | ENG.MAIN | 40 A | Engine control system |
| 43 | EPS | 60 A | Power steering system (Some models) |
| 44 | DEFOG | 40 A | Rear window defogger |
| 45 | 1G2 | 30 A | For protection of various circuits |
| 46 | INJECTOR | 30 A | Engine control system (Some models) |
| 47 | HEATER | 40 A | Air conditioner |
| 48 | P. WINDOW 1 | 30 A | Power windows |
| 49 | DCDC DE | 40 A | For protection of various circuits (Some models) |
