Mazda CX-5 (2013 – 2016) Fuse Box Location & Diagrams
The Mazda CX-5 (2013–2016) features fuse boxes that protect essential electrical systems and vehicle components. Knowing their locations and fuse assignments makes it easier to identify electrical faults, replace blown fuses, and maintain important functions. This article covers fuse box locations, diagrams, fuse ratings, and protected components.
Fuse Box Location

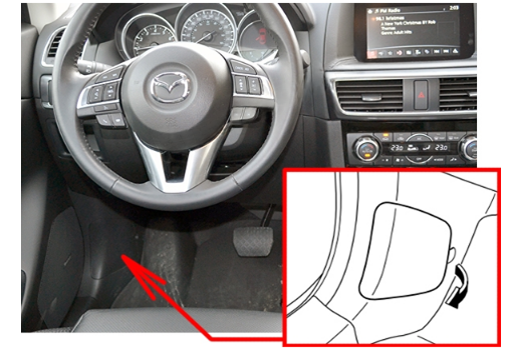

Passenger Compartment Fuse Box
The fuse box is located behind the cover on the left side of the vehicle, under the dashboard.

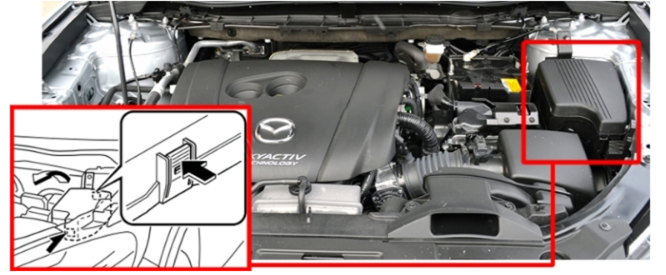

Engine Compartment Fuse Box
Fuse Box Diagrams

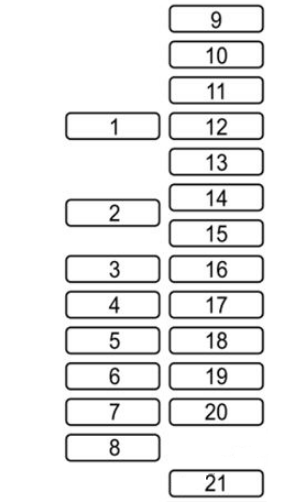

Passenger Compartment Fuse Box
| # | Fuse Name | Rating | Protected Component (by Year) |
|---|---|---|---|
| 1 | P.SEAT D | 30A | Power seat — 2013–2016 |
| 2 | P.WINDOW3 | — (2013); 30A (2014–2016) | —(2013–2016) |
| 3 | R.OUTLET3 | 15A | Accessory sockets — 2013–2016 |
| 4 | P.WINDOW2 | 25A | Power windows — 2013–2016 |
| 5 | SRS2/ESCL | 15A | Seat weight sensor — 2013–2015; — 2016 |
| 6 | D.LOCK | 25A | Power door locks — 2013–2016 |
| 7 | SEAT WARM | 20A | Seat warmer — 2013–2016 |
| 8 | SUNROOF | 10A | Moonroof — 2013–2016 |
| 9 | F.OUTLET | 15A | Accessory sockets — 2013–2016 |
| 10 | MIRROR | 7.5A | Power control mirror — 2013–2016 |
| 11 | R.OUTLET1 | — (2013 ); 15A (2014–2016) | — (2013–2016) |
| 12 | — | — | — (2013–2016) |
| 13 | — | — | — (2013–2016) |
| 14 | — | — | — (2013–2016) |
| 15 | — | — | — (2013–2016) |
| 16 | — | — | — (2013–2016) |
| 17 | M.DEF | 7.5A | Mirror defroster — 2013; Mirror defogger — 2014–2016 |
| 18 | — | — | — (2013–2016) |
| 19 | — | — | — (2013–2016) |
| 20 | AT IND | 7.5A (2014-2016) | Not present — 2013; AT shift indicator — 2014–2016 |
| 21 | P.SEAT P | — (2014-2015); 30 A(2016) | Not present — 2013; — (2014–2015); Power seat — 2016 |

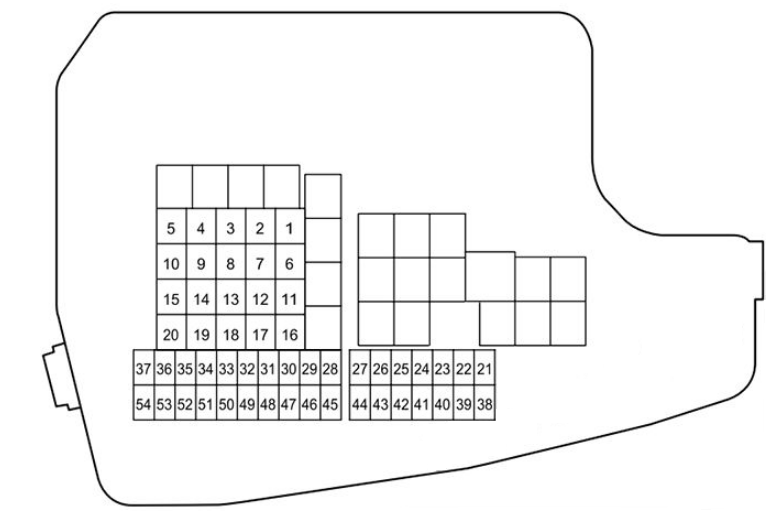

Engine Compartment Fuse Box
| # | Fuse Name | Rating | Protected Component (by Year) |
|---|---|---|---|
| 1 | ADD FAN GE | 30A | Cooling fan — 2013–2016 |
| 2 | IG2 | 30A | For protection of various circuits — 2013–2016 |
| 3 | INJECTOR | 30A | Engine control system — 2013–2016 |
| 4 | FAN DE | 40A | — (2013–2016) |
| 5 | P.WINDOW1 | 30A | Power windows — 2013–2016 |
| 6 | — | — | — (2013–2016) |
| 7 | ADD FAN DE | 40A | — (2013–2016) |
| 8 | EVVT (2016: EVVT SCR1) | 20A | Engine control system — 2013–2016 |
| 9 | DEFOG | 40A | Rear window defroster — 2013; Rear window defogger — 2014–2016 |
| 10 | DCDC DE | 40A | — (2013–2016) |
| 11 | FAN GE | 30A | Cooling fan — 2013–2016 |
| 12 | EPB L | 20A | Electric parking brake (LH) — 2016 only (fuse not present 2013–2015) |
| 13 | AUDIO | 40A | Audio system — 2016 only (fuse not present 2013–2015) |
| 14 | EPB R | 20A | Electric parking brake (RH) — 2016 only (fuse not present 2013–2015) |
| 15 | ENG.MAIN | 40A | Engine control system — 2013–2016 |
| 16 | ABS/DSC M | 50A | ABS, Dynamic stability control system — 2013–2016 |
| 17 | CABIN.+B | 50A | For protection of various circuits — 2013–2016 |
| 18 | WIPER | 20A | Front window wiper and washer — 2013–2016 |
| 19 | HEATER | 40A | Air conditioner — 2013–2016 |
| 20 | DCDC REG | 30A | —( 2013–2016) |
| 21 | ENGINE.IG1 | 7.5A | Engine control system — 2013–2016 |
| 22 | C/U IG1 | 15A | For protection of various circuits — 2013–2016 |
| 23 | H/L LOW L / HID L | 15A | Headlight (LH), Headlight low beam (LH) — 2013; Headlight low beam (LH) — 2014–2016 |
| 24 | H/L LOW R | 15A | Headlight low beam (RH) — 2013–2016 |
| 25 | ENGINE3 | 15A | Engine control system — 2013–2016 |
| 26 | ENGINE2 | 15A | Engine control system — 2013–2016 |
| 27 | ENGINE1 | 15A | Engine control system — 2013–2016 |
| 28 | AT | 15A | Transaxle control system — 2013; Transaxle control system, Ignition switch — 2014–2016 |
| 29 | H/CLEAN | 20A | — (2013–2016) |
| 30 | A/C | 7.5A | Air conditioner — 2013–2016 |
| 31 | AT PUMP | 15A | — (2013–2015); Transaxle control system — 2016 |
| 32 | STOP | 10A | Brake lights — 2013–2016 |
| 33 | R.WIPER | 15A | Rear window wiper — 2013–2016 |
| 34 | H/L HI | 20A | Headlight high beam — 2013–2016 |
| 35 | HID R (2016: HID R/ST.HEATER) | 15A | Headlight (RH) — 2013–2015; — 2016 |
| 36 | FOG | 15A | Fog lights — 2013–2016 |
| 37 | ENG.+B | 7.5A | Engine control system — 2013–2016 |
| 38 | AUDIO2 | 7.5A | Audio system — 2013–2016 |
| 39 | GLOW SIG | 5A | Not present — 2013; — (2014–2016) |
| 40 | METER2 | 7.5A | — (2013–2016) |
| 41 | METER1 | 10A | Instrument cluster — 2013–2016 |
| 42 | SRS1 | 7.5A | Air bag — 2013–2016 |
| 43 | BOSE | 25A | Bose® Sound System-equipped model — 2013–2016 |
| 44 | AUDIO1 | 15A | Audio system — 2013–2016 |
| 45 | ABS/DSC S | 30A | ABS, Dynamic stability control system — 2013–2016 |
| 46 | FUEL PUMP | 15A | Fuel system — 2013–2016 |
| 47 | FUEL WARM | 25A | — (2013–2016) |
| 48 | TAIL | 15A | Taillights, License plate lights — 2013–2016 |
| 49 | FUEL PUMP2(2014-2015) (2016: FUEL PUMP2/SCR2) | 25A | Not present — 2013; — (2014–2016) |
| 50 | HAZARD | 25A | Hazard warning flashers, Turn signal lights, Parking lights (Front side-marker) — 2013–2016 |
| 51 | DRL | 15A | Daytime running lights — 2013–2016 |
| 52 | R.OUTLET2 | 15A | Accessory sockets — 2013–2016 |
| 53 | HORN | 15A | Horn — 2013–2016 |
| 54 | ROOM | 15A | Overhead light — 2013–2016 |
