Vauxhall Antara (2011-2014) Fuse Box Location & Diagrams
The Vauxhall Antara (2011–2014) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Antara.
Fuse Box Location

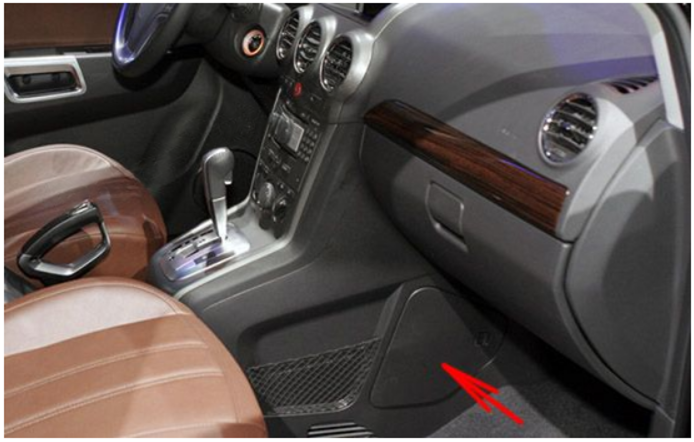

Passenger Compartment Fuse Box
The fuse box is located on the left-hand side of the front passenger seat footwell, or, in right-hand drive vehicles, on the left-hand side of the driver’s seat footwell.

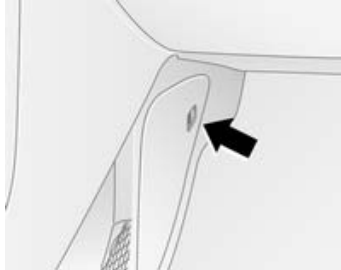

Release the latch to open the cover.

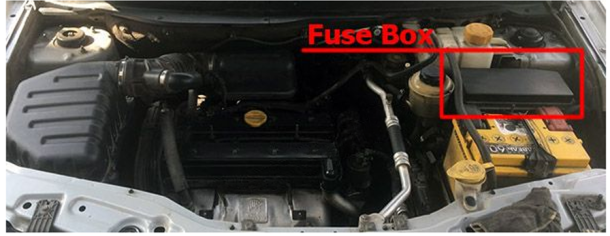

Engine Compartment Fuse Box
The fuse box is located next to the coolant reservoir in the engine compartment.

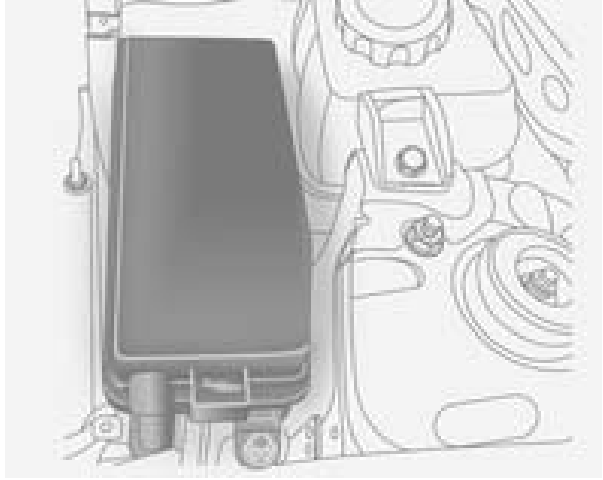

To open, disengage the cover and tilt it upwards.
Fuse Box Diagrams

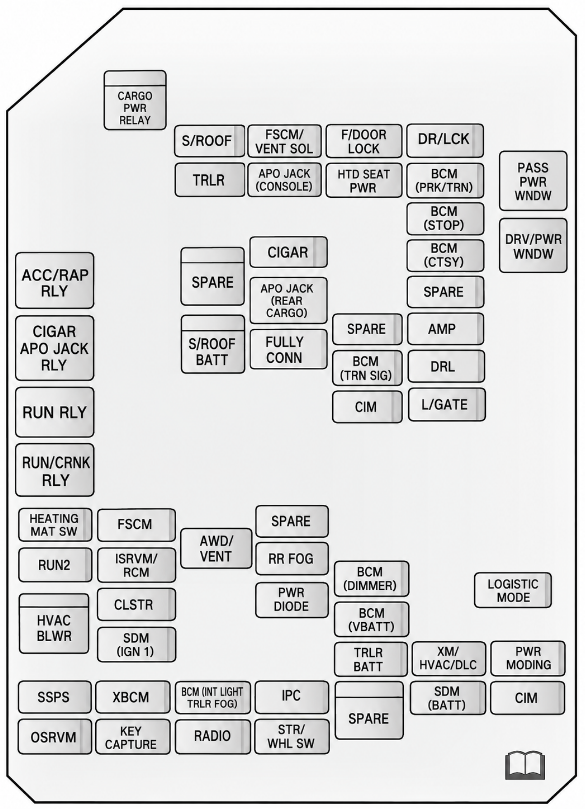

Passenger Compartment Fuse Box
| Fuse | Circuit |
|---|---|
| AMP | Amplifier |
| APO JACK (CONSOLE) | Power outlet (centre console) |
| APO JACK (REAR CARGO) | Power outlet (load compartment) |
| AWD/VENT | All-wheel drive, ventilation |
| BCM (CTSY) | Courtesy lights |
| BCM (DIMMER) | Instrument illumination |
| BCM (INT LIGHT TRLR FOG) | Interior lights, trailer fog light |
| BCM (PRK/TRN) | Parking lights, turn signals |
| BCM (STOP) | Brake lights |
| BCM (TRN SIG) | Turn signals |
| BCM (VBATT) | Battery voltage |
| CIGAR | Cigarette lighter |
| CIM | Communications Integration Module |
| CLSTR | Instrument cluster |
| DRL | Daytime running lights |
| DR/LCK | Driver door lock |
| DRVR PWR SEAT | Driver power seat |
| DRV/PWR WNDW | Driver power window |
| F/DOOR LOCK | Fuel filler flap |
| FRT WSR | Front washer |
| FSCM | Fuel system |
| FSCM/VENT SOL | Fuel system, vent solenoid |
| HEATING MAT SW | Heating mat switch |
| HTD SEAT PWR | Seat heating |
| HVAC BLWR | Climate control, air conditioning fan |
| IPC | Instrument panel cluster |
| ISRVM/RCM | Interior mirror, remote compass module |
| KEY CAPTURE | Key capture |
| L/GATE | Tailgate |
| LOGISTIC MODE | Logistic mode |
| OSRVM | Exterior mirrors |
| PASS PWR WNDW | Passenger power window |
| PWR DIODE | Power diode |
| PWR MODING | Power moding |
| RADIO | Radio |
| RR FOG | Heated rear window |
| RUN 2 | Power battery key on run |
| RUN/CRNK | Run crank |
| SDM (BATT) | Safety Diagnosis Module (Battery) |
| SDM (IGN 1) | Safety Diagnosis Module (Ignition) |
| SPARE | — |
| S/ROOF | Sunroof |
| S/ROOF BATT | Sunroof battery |
| SSPS | Power steering |
| STR/WHL SW | Steering wheel |
| TRLR | Trailer |
| TRLR BATT | Trailer battery |
| XBCM | Export Body Control Module |
| XM/HVAC/DLC | XM satellite radio, climate control, data link connection |

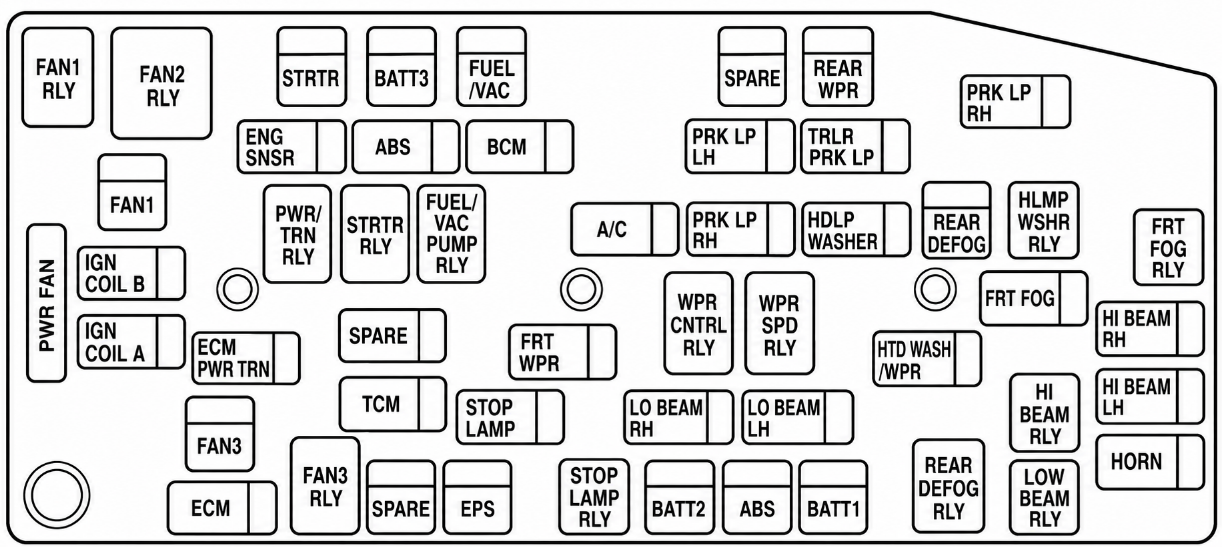

Engine Compartment Fuse Box
| Fuse | Circuit / Function |
|---|---|
| ABS | Anti-lock Brake System |
| A/C | Climate control / air conditioning system |
| BATT1 | Instrument panel fuse box |
| BATT2 | Instrument panel fuse box |
| BATT3 | Instrument panel fuse box |
| BCM | Body Control Module |
| ECM | Engine Control Module |
| ECM PWR TRN | Engine Control Module / Powertrain |
| ENG SNSR | Engine sensors |
| EPB | Electric parking brake |
| FAN1 | Cooling fan |
| FAN3 | Cooling fan |
| FRT FOG | Front fog lights |
| FRT WPR | Front wiper |
| FUEL/VAC | Fuel pump / vacuum pump |
| HDLP WASHER | Headlight washer |
| HI BEAM LH | Left-hand high beam |
| HI BEAM RH | Right-hand high beam |
| HORN | Horn |
| HTD WASH/MIR | Heated washer fluid / heated exterior mirrors |
| IGN COIL A | Ignition coil |
| IGN COIL B | Ignition coil |
| LO BEAM LH | Left-hand low beam |
| LO BEAM RH | Right-hand low beam |
| PRK LP LH | Left-hand parking light |
| PRK LP RH | Right-hand parking light |
| PWM FAN | Pulse-width modulation fan |
| REAR DEFOG | Heated rear window |
| REAR WPR | Rear wiper |
| SPARE | Not used / spare |
| STOP LAMP | Brake lights |
| STRTR | Starter |
| TCM | Transmission Control Module |
| TRLR PRK LP | Trailer parking lights |
