Vauxhall Movano B (2010–2018) Fuse Box Location & Diagrams
The Vauxhall Movano B (2010–2018) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Movano B.
Fuse Box Location

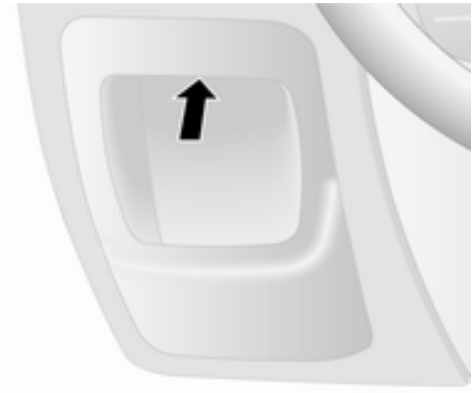

Passenger Compartment Fuse Box
Located behind the trim panel on the left-hand side of the instrument panel. Pull the upper part of the trim panel to remove.

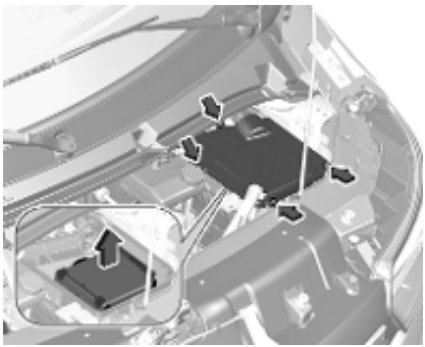

Engine Compartment Fuse Box
Load Compartment Fuse Box

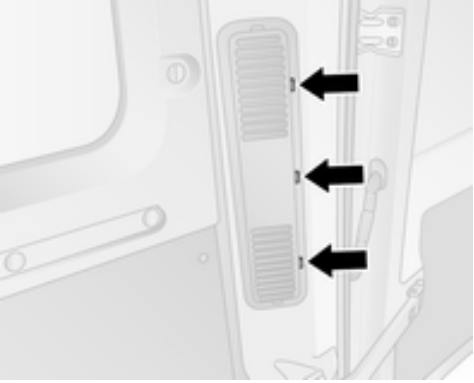

Combi
Located behind the trim panel on the right-hand side of the load compartment, beside the rear door. Using a suitable tool, e.g. a flat-blade screwdriver, unclip the trim panel at the 3 locations shown in the illustration and remove. Do not store any objects behind this panel.

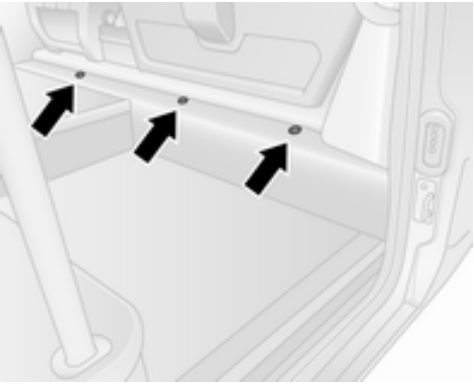

Bus
Located below the step trim panel on the lower right-hand side of the load compartment. Using a suitable tool, e.g. a flat-blade screwdriver, unclip the trim panel at the 3 locations shown in the illustration and remove. Do not store any objects behind this panel.
Fuse Box Diagrams
Passenger Compartment Fuse Box
| Symbol | Circuit |
|---|---|
 | Infotainment system / Seat heating / Vehicle display screen / Audio connections / Alarm |
 | Power outlet |
 | Cigarette lighter |
 | Instrument panel |
 | Central locking |
 | Interior lights |
 | Turn signals / Rear fog lights / Body control module |
 | Diagnostic connector |
 | ABS / Electronic Stability Program |
 | Interior lights / Brake lights |
 | Body control module |
 | Brake light |
 | Body control module / Power windows / Heating and ventilation system / Air conditioning |
 | Left heated rear window |
 | Right heated rear window |
 | Windscreen washer |
 | Electronic immobiliser |
 | Heated seats |
 | Cornering light |
 | Hands-free connection |
 | Tachograph |
 | Power take-off |
 | Horn |
 | Preheating / Diesel fuel filter |
 | Climate control fan |
 | Heated exterior mirrors |
 | Left-hand side light |
 | Right-hand side light |
 | Pneumatic suspension |
 | Navigation system |
 | Additional adaptations |
 | Power windows / Body control module |
Engine Compartment Fuse Box
| Symbol | Circuit |
|---|---|
 | Right side lights |
 | Left side lights |
 | Right low beam |
 | Left low beam |
 | Front fog light |
 | Left high beam |
 | Right high beam |
 | ABS |
 | Windscreen wiper |
 | Heating and ventilation system / Air conditioning |
 | Heated windscreen |
| Pneumatic suspension |
Load Compartment Fuse Box

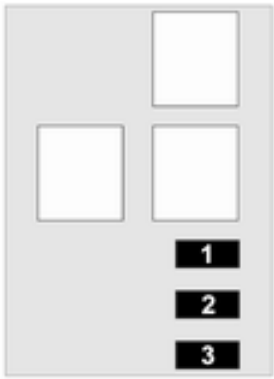

Combi
| № | Circuit |
|---|---|
| 1 | Speed 3: additional evaporator |
| 2 | Speed 2: additional evaporator |
| 3 | Speed 1: additional evaporator |
Bus
| № | Circuit |
|---|---|
| 1 | Stop-start |
| 2 | Power sliding door lock electro‐magnet |
| 3 | Power sliding door lock buzzer |
| 4 | Speed 2: right-hand evaporator fan |
| 5 | Speed 2: left-hand evaporator fan |
| 6 | Speed 1: left-hand evaporator fan |
| 7 | Left-hand heating |
| 8 | Speed 3: left-hand evaporator fan |
| 9 | Condenser fan |
| 10 | Right-hand heating |
| 11 | Speed 3: right-hand evaporator fan |
| 12 | Power sliding door |
| 13 | Corridor lighting |
| 14 | Foot panel |
| 15 | Child safety warning buzzer |
| 16 | Speed 1: right-hand evaporator fan |
Some circuits may be protected by several fuses
