Fuse Box Location

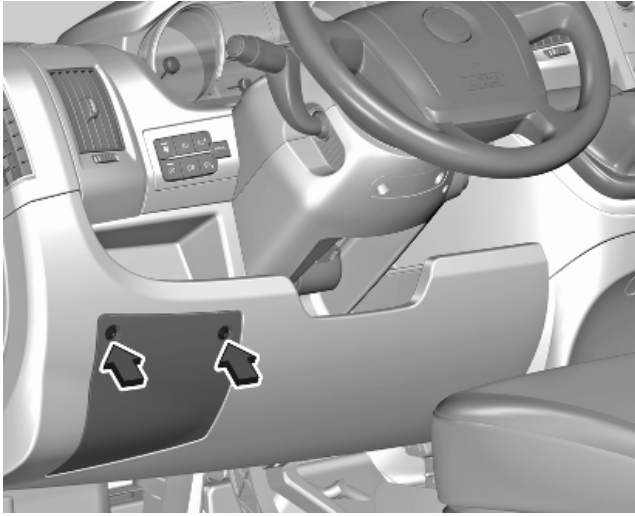

Passenger Compartment Fuse Box
The fuse box is located behind a cover in the instrument panel at the left side. Remove the screws with the screwdriver and remove the cover to access the fuses.

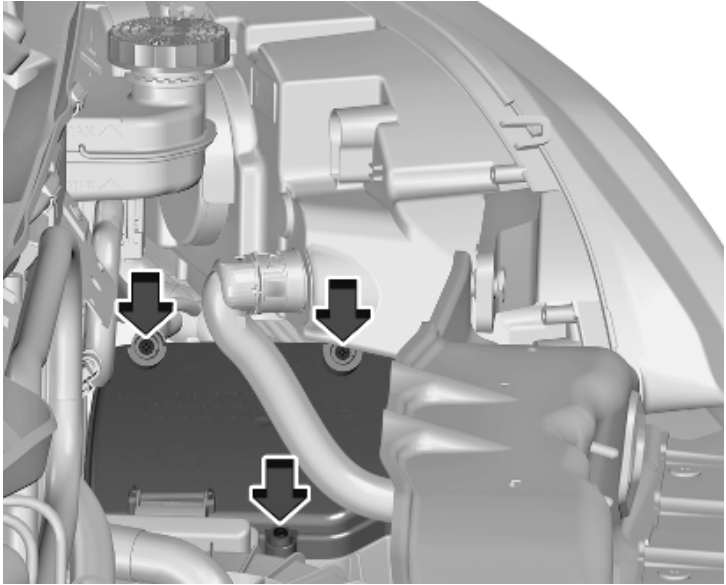

Engine Compartment Fuse Box
The fuse box is in the front left of the engine compartment. Remove the screws and tilt the casing to access the fuses.

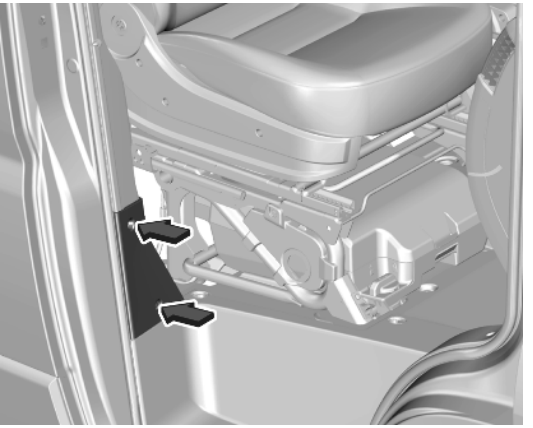

Additional Fuse Box
There is a fuse box located in the right B-pillar:
- Remove the screws with the screwdriver.
- Pull the casing up to the side and clips it out to access fuses.
Fuse Box Diagrams

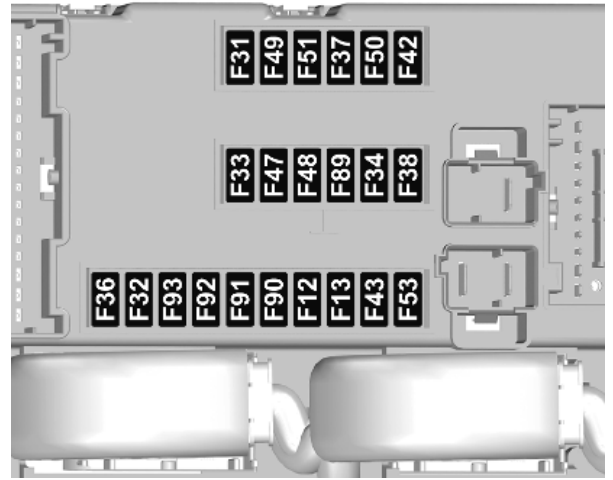

Passenger Compartment Fuse Box
| № | Circuit |
|---|---|
| 12 | Right low beam |
| 13 | Left low beam |
| 31 | Instrument panel control unit |
| 32 | Interior lights |
| 33 | Stop-start system |
| 34 | Interior lights Minibus – Hazard warning flashers |
| 36 | Infotainment system / Climate control / Alarm / Tachograph / Battery disconnecting control unit / Additional heater / Tyre pressure monitoring / Stop-start system |
| 37 | Brake system / Instrument panel |
| 38 | Central locking system |
| 42 | Electronic stability control system / Traction control system / ABS / Brake lights |
| 43 | Windscreen washer |
| 47 | Electric windows |
| 48 | Electric windows |
| 49 | Parking assist / Infotainment system / Steering wheels controls / Central and side control panels / Auxiliary control panel / Battery disconnecting control unit / Trailer hitch / Rain sensor / Stop-start system |
| 50 | Airbag system / Pretensioners |
| 51 | Tachograph / Power steering / Climate control system / Reversing lights / Navigation system / Lane departure warning / Rear view camera / Headlights |
| 53 | Insrument panel |
| 89 | – |
| 90 | Left high beam |
| 91 | Right high beam |
| 92 | Left front fog light |
| 93 | Right front fog light |

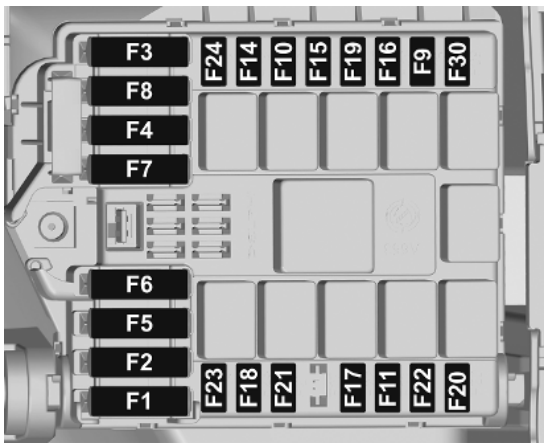

Engine Compartment Fuse Box
| № | Circuit |
|---|---|
| 1 | ABS |
| 2 | Fuel system |
| 3 | Ignition switch |
| 4 | Fuel system |
| 5 | Climate control system |
| 6 | Climate control system |
| 7 | Climate control system |
| 8 | Climate control system |
| 9 | Power outlet rear |
| 10 | Horn |
| 14 | Power outlet front |
| 15 | Cigarette lighter |
| 19 | Climate control system |
| 20 | Windscreen washer |
| 21 | Fuel system |
| 23 | ABS |
| 24 | Auxiliary control panel / Electric mirrors |
| 30 | Climate control system |

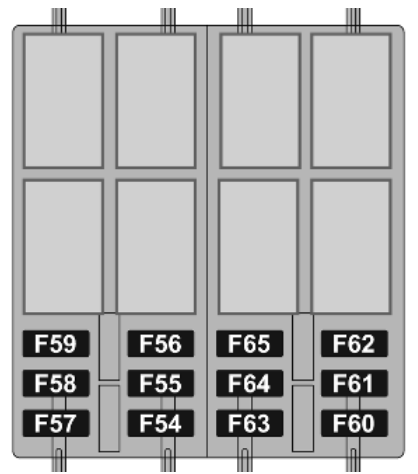

Additional Fuse Box
| № | Circuit |
|---|---|
| 54 | Climate control system |
| 55 | Seat heating |
| 56 | Power outlet rear passenger |
| 57 | Additional heater |
| 58 | Heated rear window |
| 59 | Heated rear window |
| 60 | – |
| 61 | – |
| 62 | – |
| 63 | Additional heater |
| 64 | – |
| 65 | Additional heater |
