Vauxhall Corsa E (2014–2019) Fuse Box Location & Diagrams
The Vauxhall Corsa E (2014–2019) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Corsa E.
Fuse Box Location
Passenger Compartment Fuse Box

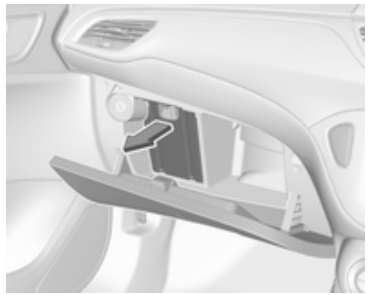

The fuse box is located behind a cover in the glovebox. Open the glovebox, then open the cover and fold it down.
Engine Compartment Fuse Box

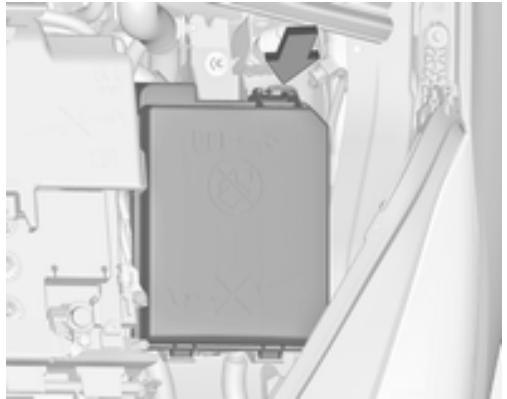

The fuse box is in the front left of the engine compartment. Disengage the cover and fold it upwards until it stops. Remove the cover vertically upwards.
Fuse Box Diagrams
Passenger Compartment Fuse Box

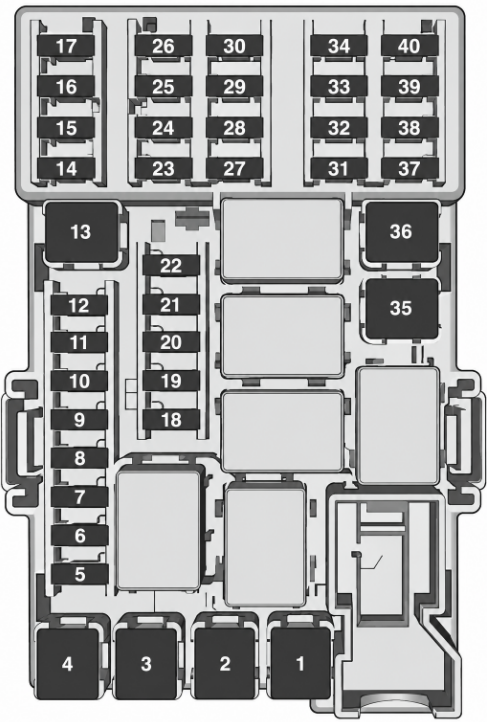

| Fuse No. | Function |
|---|---|
| 1 | – |
| 2 | – |
| 3 | Power windows |
| 4 | Voltage transformer |
| 5 | Body control module 1 |
| 6 | Body control module 2 |
| 7 | Body control module 3 |
| 8 | Body control module 4 |
| 9 | Body control module 5 |
| 10 | Body control module 6 |
| 11 | Body control module 7 |
| 12 | Body control module 8 |
| 13 | – |
| 14 | Tailgate |
| 15 | Airbag system |
| 16 | Data link connection |
| 17 | Ignition |
| 18 | Air conditioning system |
| 19 | 2014–2018: Sunroof; 2019: – |
| 20 | Parking assist / Rain sensor / Front camera |
| 21 | Brake switch |
| 22 | 2014–2018: Audio system; 2019: Infotainment system |
| 23 | Display |
| 24 | – |
| 25 | Auxiliary jack |
| 26 | Instrument panel |
| 27 | 2014–2016: Seat heating, driver; 2017–2019: – |
| 28 | – |
| 29 | – |
| 30 | 2014–2016: Instrument panel / Seat heating / FlexDock; 2017–2019: – |
| 31 | Horn |
| 32 | 2014–2016: Seat heating, passenger; 2017–2019: – |
| 33 | Heated steering wheel |
| 34 | – |
| 35 | Tyre repair kit |
| 36 | – |
| 37 | Rear wiper |
| 38 | Cigarette lighter |
| 39 | 2014–2018: Power windows / Sunroof / Automatic transmission display; 2019: Power windows / Automatic transmission display |
| 40 | – |
Engine Compartment Fuse Box
Fuse Box 1

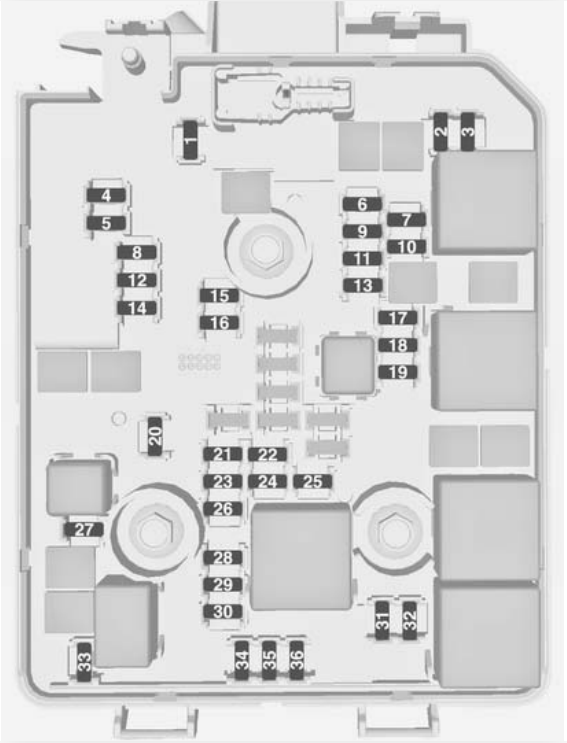

| Fuse No. | Function |
|---|---|
| 1 | 2014: Trailer interface module. 2015–2018: Trailer interface module, rear carrier system. 2019: – |
| 2 | – |
| 3 | Battery sensor |
| 4 | 2014: Chassis control module. 2015–2019: Chassis control module, fuel pump |
| 5 | ABS |
| 6 | 2014: Daytime running light left. 2015–2018: Low beam and daytime running light left, Xenon high beam shutter left and right. 2019: Low beam and daytime running light left, Xenon high beam |
| 7 | – |
| 8 | 2014: Transmission control module. 2015–2018: MTA transmission control module, LPG control module. 2019: LPG control module |
| 9 | 2014, 2018–2019: Body control module. 2015–2017: Body control module voltage detection |
| 10 | 2014: Headlamp levelling, TPMS, trailer interface module. 2015–2019: Headlamp levelling |
| 11 | Rear wiper |
| 12 | 2014: Window defog. 2015–2019: Heated rear window |
| 13 | 2014: Daytime running light right. 2015–2019: Low beam and daytime running light right |
| 14 | 2014: Mirror defog. 2015–2019: Heated exterior mirror |
| 15 | – |
| 16 | 2014: Chassis control module, pump kit. 2015–2019: Brake booster kit |
| 17 | 2014: Interior mirror. 2015–2017: Ignition, crank power supply. 2018–2019: Ignition signal, water pump |
| 18 | Engine control module |
| 19 | Fuel pump |
| 20 | – |
| 21 | 2014: Injection coil. 2015–2019: Engine solenoids, engine sensors |
| 22 | – |
| 23 | 2014–2017: Injection system. 2018–2019: Ignition coils, injectors |
| 24 | Washer system |
| 25 | 2014: Lighting system. 2015–2019: – |
| 26 | 2014: Engine control module. 2015–2019: Engine sensors |
| 27 | 2014–2017: Heater shut-off valve. 2018–2019: Engine management |
| 28 | Engine control module |
| 29 | Engine control module |
| 30 | Engine control module |
| 31 | 2014: Left headlamp. 2015–2019: High beam left, Xenon low beam left |
| 32 | 2014: Right headlamp. 2015–2019: High beam right, Xenon low beam right |
| 33 | Engine control module |
| 34 | Horn |
| 35 | 2014: Clutch. 2015–2019: Air conditioning compressor clutch |
| 36 | Front fog lights |

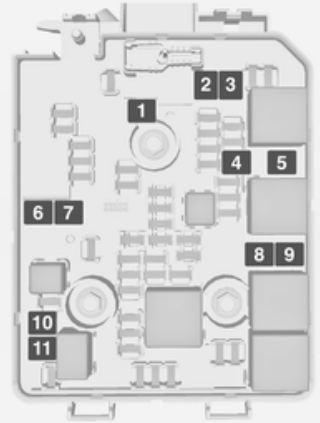

| Fuse No. | Function |
|---|---|
| 1 | 2014–2018: ABS pump; 2019: ABS |
| 2 | Front wiper |
| 3 | Blower |
| 4 | 2014–2017: Instrument panel; 2018–2019: Seat heating |
| 5 | 2014–2016: –; 2017–2019: Cooling fan |
| 6 | 2014–2017: Diesel fuel heater; 2018–2019: – |
| 7 | Transmission |
| 8 | 2014–2016: Cooling fan low; 2017–2019: Cooling fan |
| 9 | 2014–2016: Cooling fan high; 2017–2019: Cooling fan |
| 10 | Cooling fan |
| 11 | Starter |
After having changed defective fuses close the fuse box cover and press until it engages. If the fuse box cover is not closed correctly, malfunction may occur.
