Vauxhall Mokka II (2020–2022) Fuse Box Location & Diagrams
The Vauxhall Mokka II (2020–2022) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Mokka II.
Fuse Box Location
Passenger Compartment Fuse Box

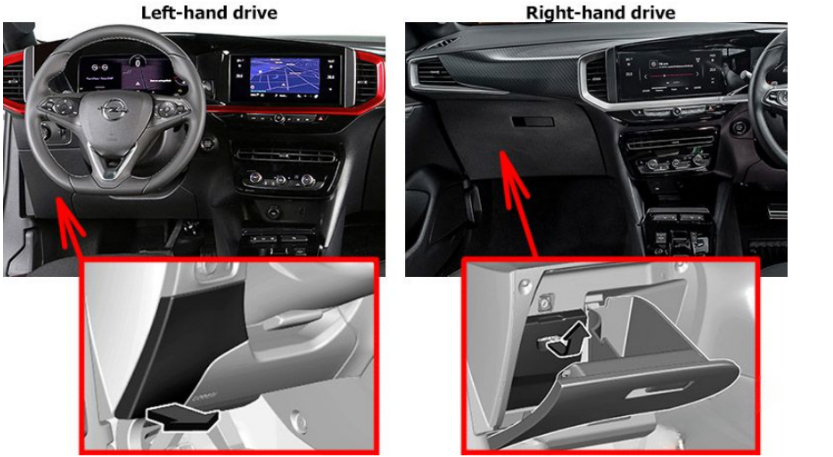

Left Side
In left-hand drive vehicles, the fuse box is behind a cover in the instrument panel. Disengage cover at the bottom side and remove.
In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover.
A fuse extractor may be located in the cover of the left side of the instrument panel. The extractor has two sides, each side is designed for a different type of fuses.

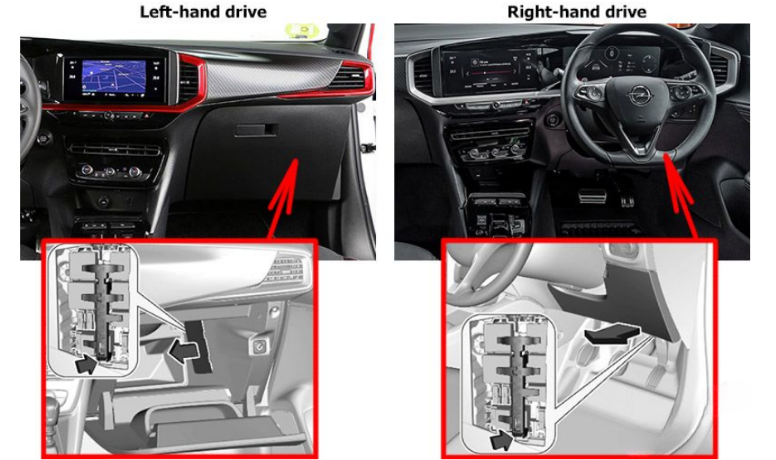

Right Side
In left-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover. Remove the bracket.
In right-hand drive vehicles, the fuse box is located behind a cover in the instrument panel. Disengage cover at the bottom side and remove. Remove the bracket.

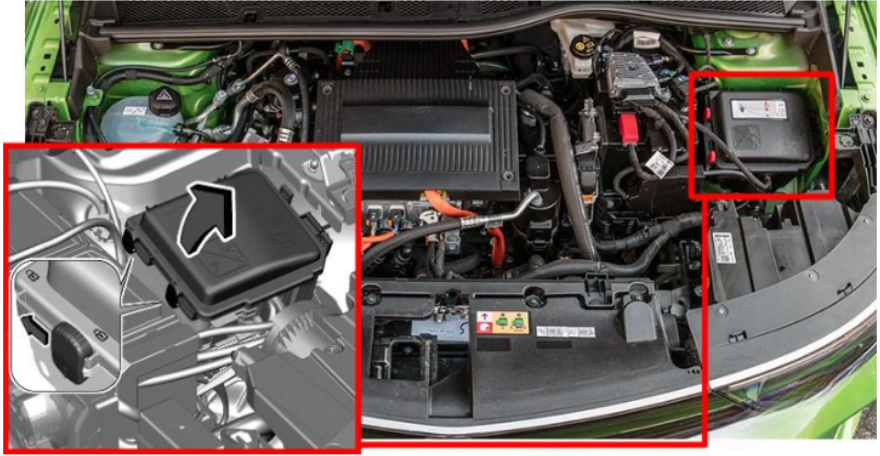

Engine Compartment Fuse Box
The fuse box is in the front left of the engine compartment. Disengage the cover and remove it.
Fuse Box Diagrams
Passenger Compartment Fuse Box

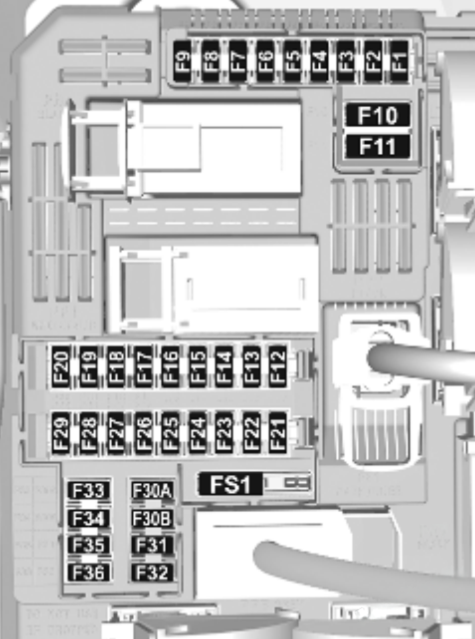

Left Side
| № | Circuit |
|---|---|
| 1 | Radar / Electric steering / Clutch switch |
| 3 | Inductive charging / Keyless operation |
| 4 | Horn |
| 5 | Windscreen washer |
| 6 | Windscreen washer |
| 7 | USB |
| 8 | Rear wiper |
| 9 | Interior lighting |
| 10 | Central locking system |
| 11 | Central locking system |
| 12 | Diagnostic connector module |
| 13 | Non-electric: Climate control system Electric: Climate control module / radio faceplate |
| 14 | Alarm / Opel Connect / Keyless operation |
| 15 | Electric: Electronic shifter module / Headlight control unit |
| 16 | Electric: Low voltage network separation device |
| 17 | 2020: Instrument cluster / 2021-2022: Driver Information Centre |
| 18 | Electric: Reserved for Aftersales equipment |
| 19 | Electric: Steering column control / Steering wheel controls |
| 21 | Non-electric: Power button / Anti-theft locking system Electric: Power button |
| 22 | Rain sensor / Light sensor / Camera |
| 23 | Seatbelt reminder / Brake twin function switch / Trailer |
| 24 | Infotainment / Parking assist / Rear view camera |
| 25 | Airbag |
| 27 | Anti-theft alarm system |
| 28 | Trailer |
| 29 | Infotainment |
| 31 | Cigarette lighter /12 V power outlet |
| 32 | Heated steering wheel |
| 33 | Non-electric: Climate control system / Automatic transmission Electric: Pedestrian safety alert / Temperature preconditioning |
| 34 | Parking assist / Exterior mirror adjustment |
| 35 | Exterior lighting |
| 36 | Interior lighting |

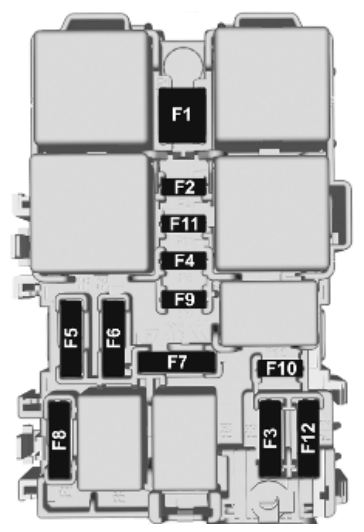

Right Side
| № | Circuit |
|---|---|
| 1 | Heated rear window |
| 2 | Heated exterior mirrors |
| 3 | Power windows front |
| 4 | Exterior mirror adjustment / Folding mirrors |
| 5 | Power windows rear |
| 10 | Heated front seats |

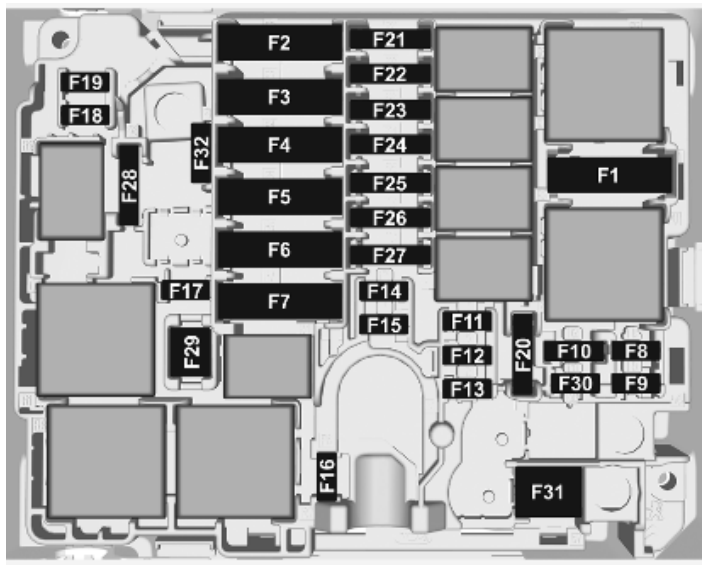

Engine Compartment Fuse Box
After having changed defective fuses, close the fuse box cover and lock it. If the fuse box cover is not closed correctly, malfunction may occur.
| No. | Circuit |
|---|---|
| 1 | Climate control system |
| 2 | Brake system |
| 3 | Fuse box (right side of the instrument panel) |
| 4 | Brake system |
| 5 | Body control module (Non-electric) |
| 6 | Cooling fan |
| 7 | Body control module |
| 8 | Engine control module / Fuel pump (Non-electric); Valve climate control (Electric) |
| 9 | NOX sensor / Diesel water sensor (Non-electric); Electric vehicle control unit (Electric) |
| 10 | Engine control module (Non-electric); Electric vehicle control unit (Electric) |
| 11 | Engine control module (Non-electric); Electric vehicle control unit (Electric) |
| 12 | Diagnostic link connector |
| 13 | Body control module (Non-electric); Body control module / Climate control system (Electric) |
| 14 | Battery sensor (Non-electric) |
| 15 | Trailer control module (Non-electric); E-service plug (Electric) |
| 16 | Right headlight |
| 17 | Engine control module / NOX sensor (Non-electric) |
| 18 | Right high beam |
| 19 | Left high beam |
| 20 | Engine control module / Fuel pump / Diesel heater (Non-electric); Electric vehicle control unit (Electric) |
| 21 | Starter (Non-electric) |
| 22 | Automatic transmission (Non-electric); Cooling fan / Vacuum pump / Electric vehicle control unit (Electric) |
| 23 | Climate control system (Non-electric); AC/DC converter / DC/DC converter (Electric) |
| 24 | Climate control system (Non-electric) |
| 25 | Fuse box (trailer) (Non-electric); High voltage battery interface (Electric) |
| 26 | Motor controller (electric motor and inverter) (Electric) |
| 27 | Body control module |
| 28 | Selective catalytic reduction system (Non-electric) |
| 29 | Windscreen wiper |
| 30 | Diesel glow plug control unit (Non-electric); Body control module (Electric) |
| 31 | Climate control system (Non-electric); Body control module (Electric) |
| 32 | Steering wheel |
