Vauxhall Corsa D (2007–2014) Fuse Box Location & Diagrams
The Vauxhall Corsa D (2007–2014) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Corsa D.
Fuse Box Location
Passenger Compartment Fuse Box

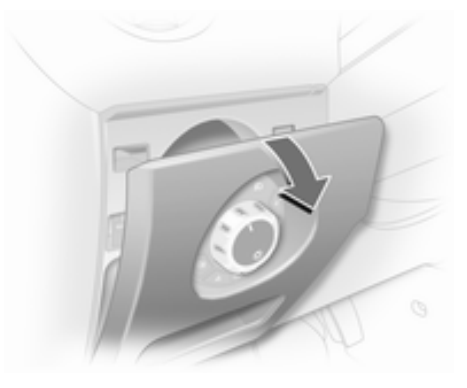

In left-hand drive vehicles, the fuse box is behind the light switch. Pull the top edge of the panel and fold it down.

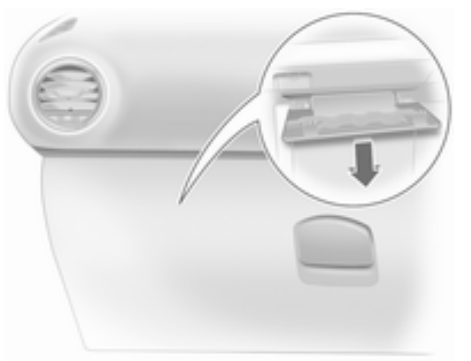

In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover. To close, first put on the cover, then lock it into position.
Engine Compartment Fuse Box

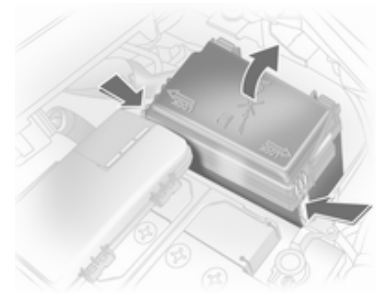

The fuse box is in the front left of the engine compartment. Disengage the cover, lift it upwards and remove.
Load Compartment Fuse Box

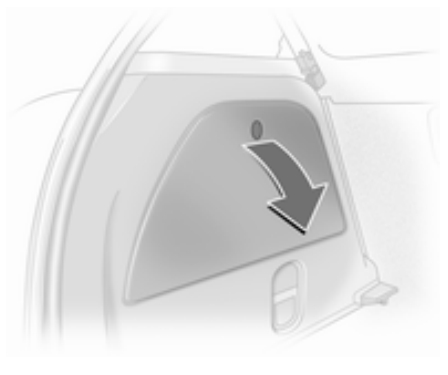

The fuse box is on the left side of the load compartment behind a cover. Remove the cover.
Fuse Box Diagrams

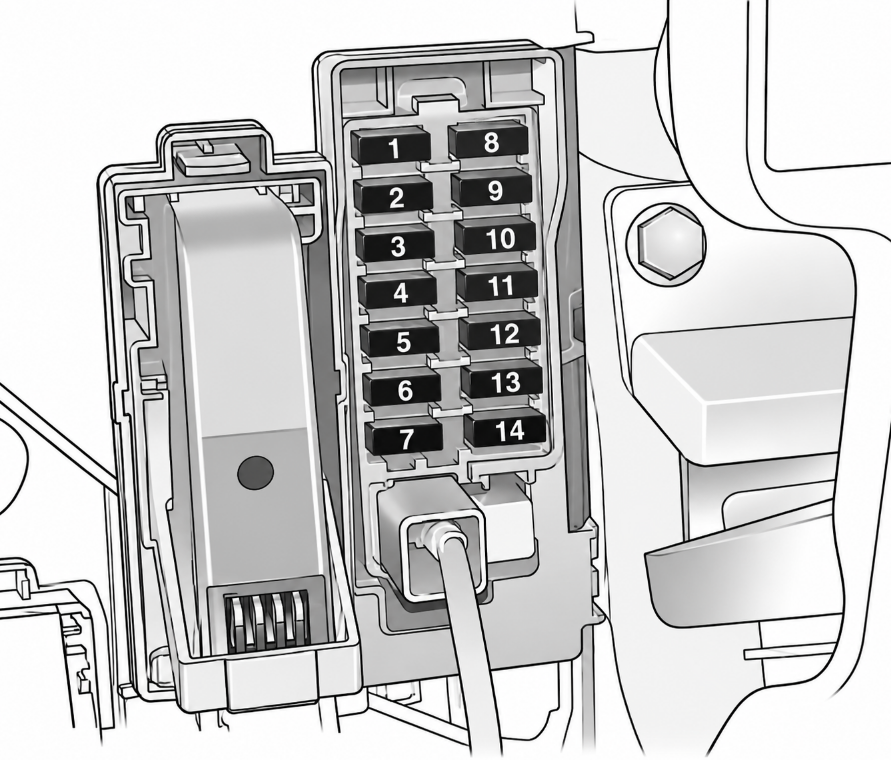

Passenger Compartment Fuse Box
| No. | Circuit |
|---|---|
| 1 | – |
| 2 | Instruments, Info-Display |
| 3 | Radio |
| 4 | Ignition switch |
| 5 | Windscreen washer system |
| 6 | Central locking system, tailgate |
| 7 | Central locking system |
| 8 | – |
| 9 | Courtesy light |
| 10 | Electrical power steering |
| 11 | Light switch, brake light |
| 12 | ABS, brake light |
| 13 | Heated steering wheel |
| 14 | Park assist, rain sensor, interior mirror |

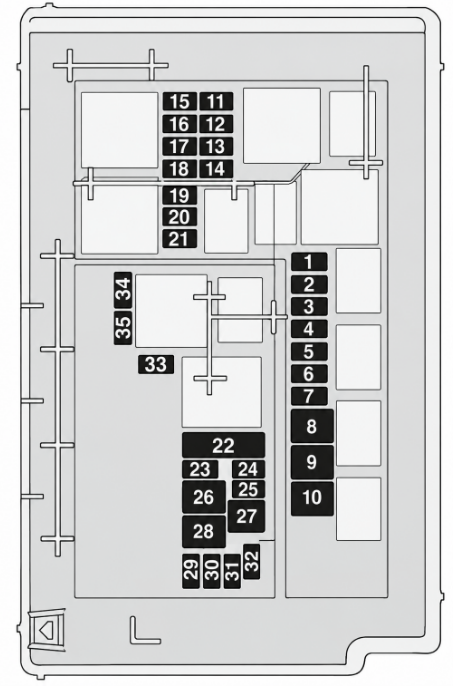

Engine Compartment Fuse Box
| No. | Circuit |
|---|---|
| 1 | Starter |
| 2 | Air conditioning system |
| 3 | Diesel fuel filter heater |
| 4 | Horn |
| 5 | Manual transmission automated, automatic transmission |
| 6 | Engine control unit |
| 7 | Fog lights |
| 8 | Engine cooling |
| 9 | Engine cooling |
| 10 | Manual transmission automated |
| 11 | Glow plugs, ignition system |
| 12 | Headlight range adjustment, Adaptive forward lighting |
| 13 | Air conditioning system |
| 14 | Manual transmission automated |
| 15 | High beam (right) |
| 16 | High beam (left) |
| 17 | Main relay |
| 18 | Engine control unit |
| 19 | Airbags |
| 20 | Main relay |
| 21 | Main relay |
| 22 | Central control unit |
| 23 | Tyre repair kit |
| 24 | Fuel pump |
| 25 | ABS |
| 26 | Heated rear window |
| 27 | ABS |
| 28 | Interior fan |
| 29 | Cigarette lighter |
| 30 | Air conditioning system |
| 31 | Power window (left) |
| 32 | Power window (right) |
| 33 | Heated exterior mirrors |
| 34 | – |
| 35 | – |

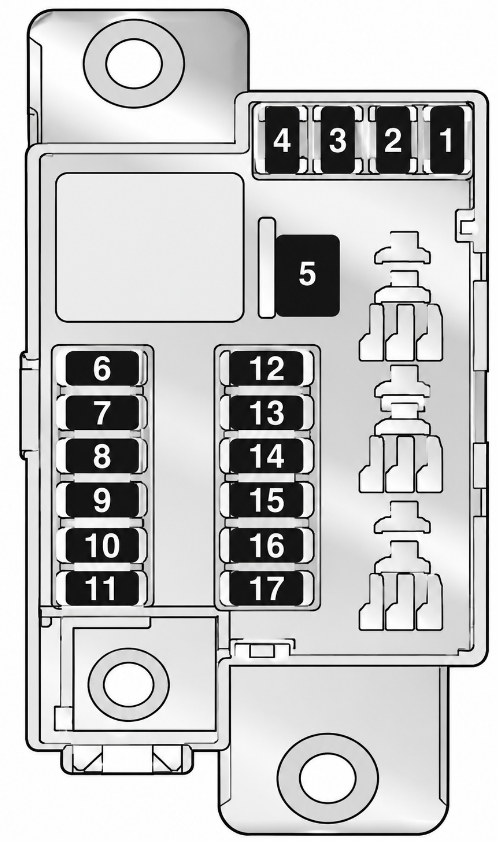

Load Compartment Fuse Box
| No. | Circuit |
|---|---|
| 1 | Adaptive forward lighting |
| 2 | – |
| 3 | Seat heater (left) |
| 4 | Seat heater (right) |
| 5 | – |
| 6 | – |
| 7 | – |
| 8 | Rear carrier system, towing equipment |
| 9 | – |
| 10 | – |
| 11 | – |
| 12 | – |
| 13 | – |
| 14 | – |
| 15 | Rear carrier system, towing equipment |
| 16 | – |
| 17 | Sunroof |
