Alfa Romeo MiTo (2008 – 2013) Fuse Box Location & Diagrams
Explore the Alfa Romeo MiTo (2008–2013) fuse box location, fuse diagrams, and relay details with accurate information. This article provides clear fuse panel locations, layouts, and assignments to help owners identify electrical components, troubleshoot issues, and maintain essential vehicle systems with confidence.
Fuse Box Location

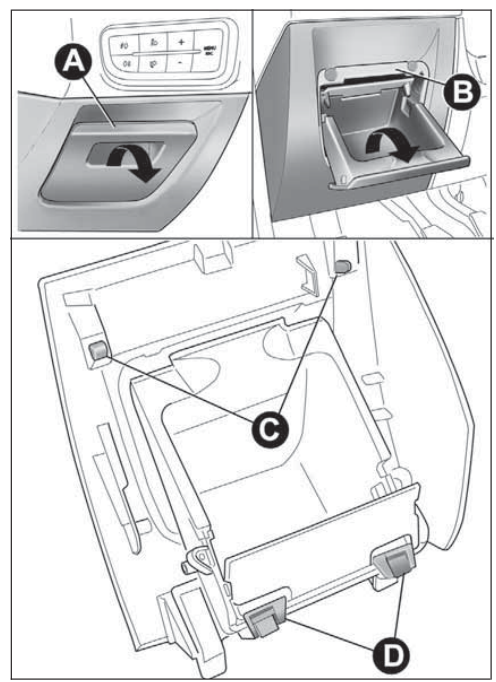

Passenger Compartment Fuse Box

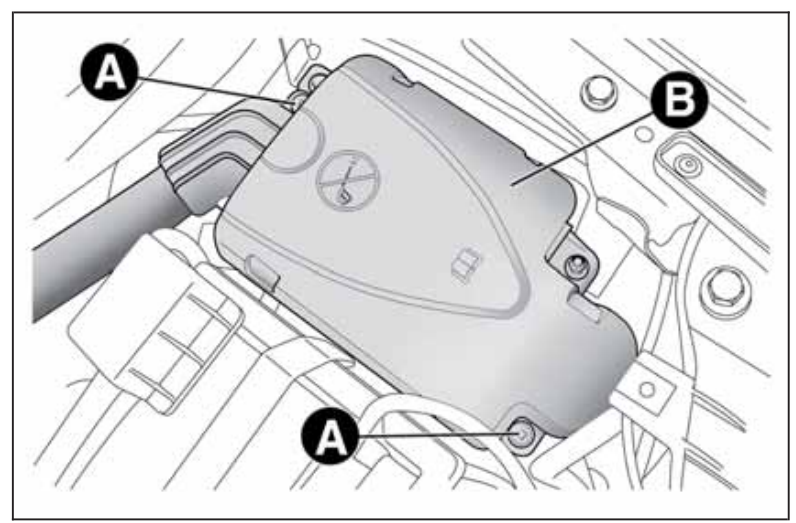

Engine Compartment Fuse Box
Fuse Box Diagrams

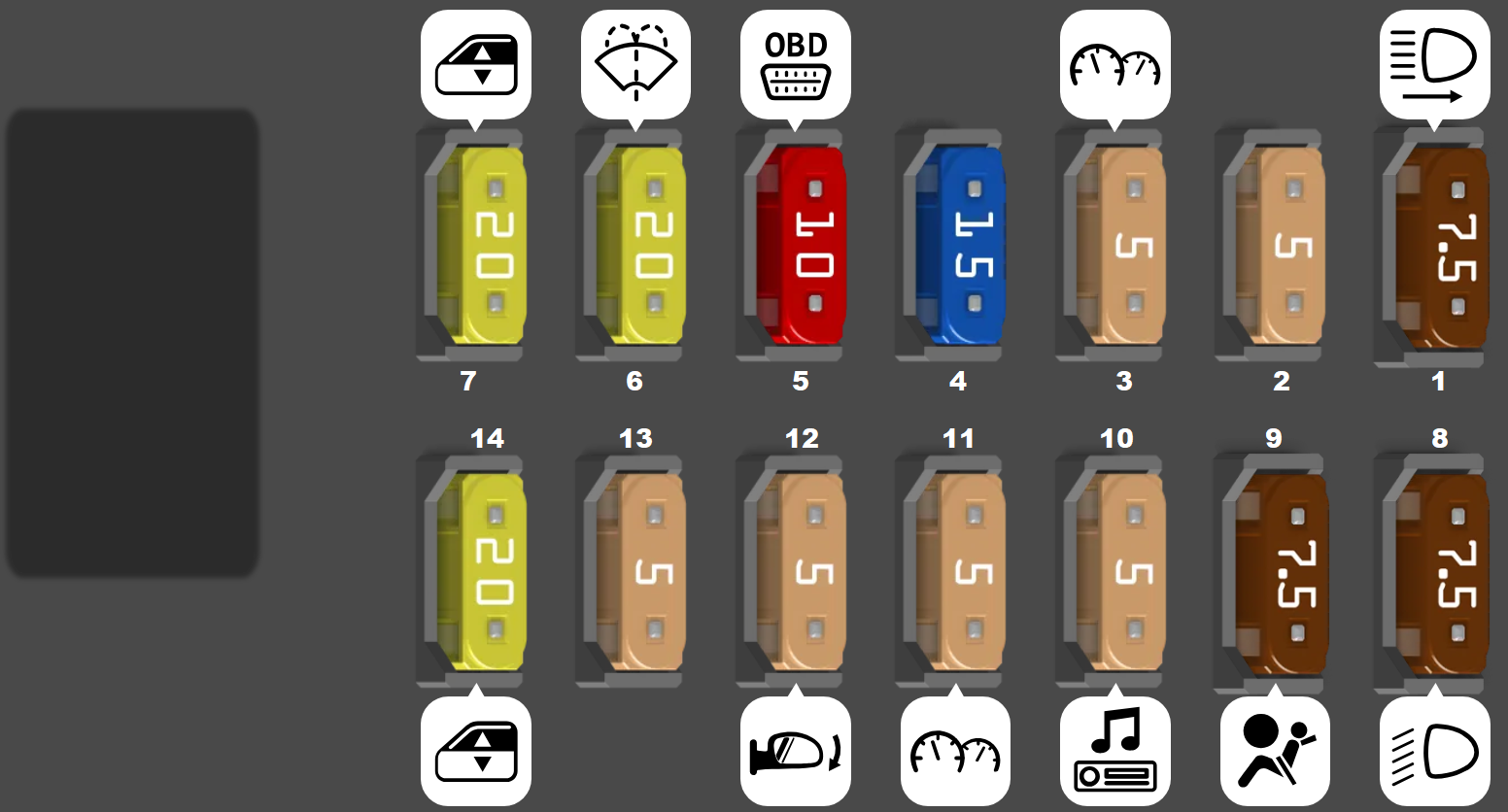

Passenger Compartment Fuse Box
| Type | No. | Description |
|---|---|---|
| Fuse MINI 7.5A | 1 | Right headlights |
| Fuse MINI 5A | 2 | Interior light(s), Luggage compartment light(s) |
| Fuse MINI 5A | 3 | Instrument panel |
| Fuse MINI 15A | 4 | Central locking |
| Fuse MINI 10A | 5 | Alarm horn, Alarm sensors, Diagnostic connector, Climate control, Cooling fan, Bluetooth control unit, Radio and navigation unit, Electric mirror controls, Tyre pressure monitor control unit |
| Fuse MINI 20A | 6 | Windscreen washer, Rear windscreen washer |
| Fuse MINI 20A | 7 | Passenger’s power window |
| Fuse MINI 7.5A | 8 | Dipped beam, Headlight levelling |
| Fuse MINI 7.5A | 9 | Airbag |
| Fuse MINI 5A | 10 | Bluetooth control unit, Climate control, Brake light switch, Clutch switch, Radio, Cooling fan, Engine control unit, Reversing light switch |
| Fuse MINI 5A | 11 | Brake light switch, Instrument panel, Headlight range control |
| Fuse MINI 5A | 12 | Electrochromatic mirror, Navigation, Light control, Parking sensor, Rain/dusk sensor, Tyre pressure monitor control unit, Sunroof |
| Fuse MINI 5A | 13 | Engine compartment junction block |
| Fuse MINI 20A | 14 | Driver’s side power window |

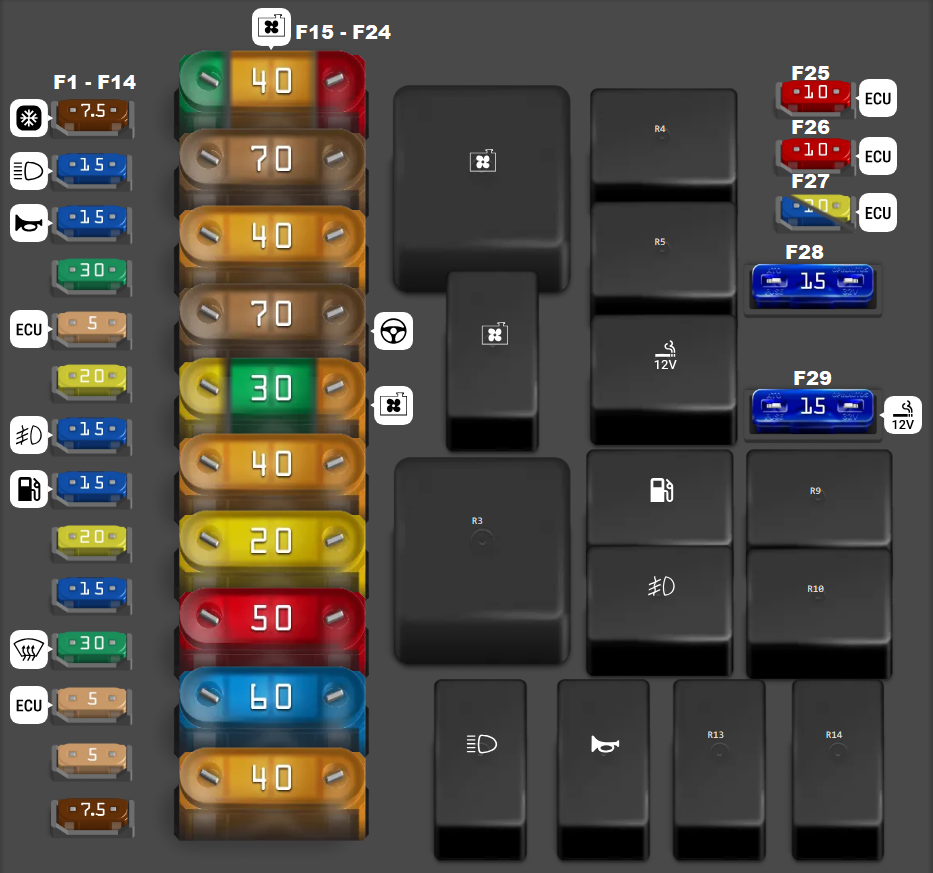

Engine Compartment Fuse Box
| Type | No. | Description |
|---|---|---|
| Fuse MINI 7.5A | F1 | Air-conditioning compressor |
| Fuse MINI 15A | F2 | Main beam |
| Fuse MINI 15A | F3 | Horns |
| Fuse MINI 30A | F4 | Additional heater 1 |
| Fuse MINI 5A | F5 | Engine control |
| Fuse MINI 20A | F6 | Brake control (BS) |
| Fuse MINI 15A | F7 | Fog lights |
| Fuse MINI 15A | F8 | Fuel pump |
| Fuse MINI 20A | F9 | Headlight washer |
| Fuse MINI 15A | F10 | Automatic transmission |
| Fuse MINI 30A | F11 | Rear windscreen demister and defroster |
| Fuse MINI 5A | F12 | Engine control |
| Fuse MINI 5A | F13 | Brake control (BS), Electric steering, Yaw rate sensor |
| Fuse MINI 7.5A | F14 | Mirror defroster, Heated nozzles |
| Fuse MAXI 30A | F15 | Cooling fan, high speed |
| Fuse MAXI 40A | F15 | Cooling fan, high speed |
| Fuse MAXI 50A | F15 | Cooling fan, high speed |
| Fuse MAXI 70A | F16 | Body control unit |
| Fuse MAXI 40A | F17 | Brake vacuum pump |
| Fuse MAXI 70A | F18 | Electric steering |
| Fuse MAXI 20A | F19 | Cooling fan, low speed |
| Fuse MAXI 30A | F19 | Cooling fan, low speed |
| Fuse MAXI 40A | F19 | Cooling fan, low speed |
| Fuse MAXI 40A | F20 | Climate control fan |
| Fuse MAXI 20A | F21 | Ignition switch |
| Fuse MAXI 50A | F22 | Additional heater 2 |
| Fuse MAXI 60A | F23 | Glow plug control unit |
| Fuse MAXI 40A | F24 | Luggage compartment control unit |
| Fuse MINI 10A | F25 | Engine control |
| Fuse MINI 10A | F26 | Engine control |
| Fuse MINI 15A | F27 | Engine control |
| Fuse MINI 20A | F27 | Engine control |
| Fuse ATO 15A | F28 | Heated windscreen |
| Fuse ATO 15A | F29 | Power socket/Cigar lighter |
| Relay | R1 | Cooling fan, high-speed relay |
| Relay | R2 | Cooling fan, low-speed relay |
| Relay | R3 | Climate control fan relay |
| Relay | R4 | Engine management relay |
| Relay | R5 | Heated windscreen relay |
| Relay | R6 | Power socket relay |
| Relay | R7 | Fuel pump relay; Additional relay fuel pump |
| Relay | R8 | Fog light relay |
| Relay | R9 | Start inhibitor relay |
| Relay | R10 | Heated rear windscreen relay |
| Relay | R11 | Main beam relay |
| Relay | R12 | Horn relay |
| Relay | R13 | Air-conditioning compressor relay or Horn |
| Relay | R14 | Headlight washer relay |
