Alfa Romeo MiTo (2013 – 2018) Fuse Box Location & Diagrams
Find the Alfa Romeo MiTo (2013–2018) fuse box location, fuse diagrams, and relay details with accurate information. This article provides clear fuse panel layouts, component descriptions, and electrical system details to help owners locate fuses, diagnose issues, and maintain essential vehicle functions efficiently.
Fuse Box Location

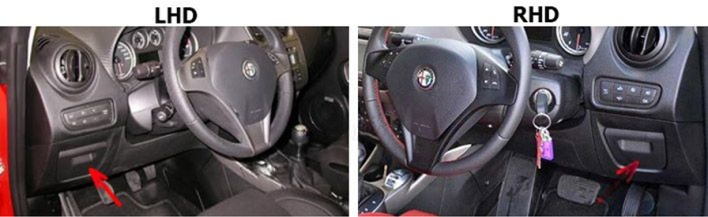

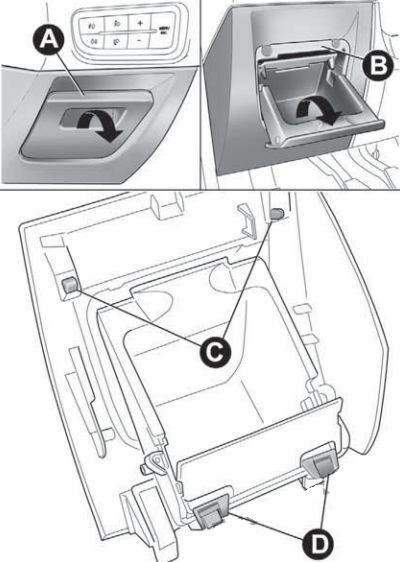

Passenger Compartment Fuse Box

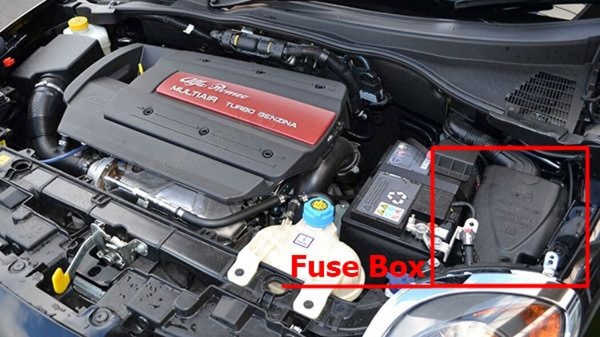

Engine Compartment Fuse Box
This is located next to the battery.

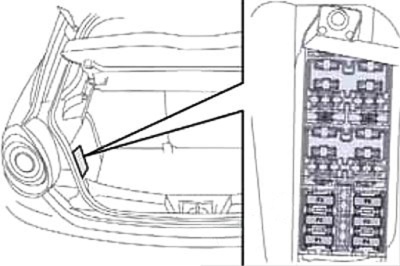

Luggage Compartment Fuse Box
Fuse Box Diagrams

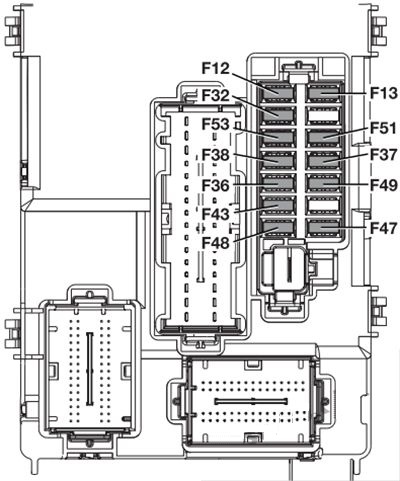

Passenger Compartment Fuse Box
| № | AMPS | DEVICE PROTECTED |
|---|---|---|
| F12 | 7,5 | Right dipped beam headlight 2015,2016 : Available 2017: FREE |
| F13 | 7,5/5 | Left dipped beam headlight 2015,2016: Headlamp alignment corrector |
| F13 | 7,5 | Headlight alignment adjustment system |
| 2015, 2016:F31 2014:F32 | 5 5 | 2015, 2016 INT/A relay for engine compartment junction unit Front roof light, Luggage compartment roof light, Sun visor courtesy light, Door puddle lights, Glove compartment light 2017: INT/A Engine compartment control unit relays |
| F36 | 10
15 | 2014: Radio, sound system setup system (for versions/markets, where provided), Uconnect™ 5″ radio (for versions/markets, where provided), climate control system control unit, alarm system control unit, volumetric system control unit, EOBD external diagnosis socket, tyre pressure monitoring control unit 2015:2016 EOBD diagnosis port supply, radio, Bluetooth®, radionavigator (where provided), alarm siren; alarm volumetric sensors, electric fan, TPMS, electric mirror controls, climate control system controls 2017: EOBD diagnosis plug supply / Uconnect/ Alarm buzz / Alarm volumetric sensors / Electrofan /TPMS system / Electric mirror controls/Climate control system controls |
| F37 | 5 | Instrument panel, brake light on switch 2015, 2016 : Brake light switch (NO/2017:NA), instrument panel node, headlight alignment corrector |
| F38 | 15 | Door lock motor on doors, Safe Lock motor on doors, Tailgate unlocking motor 2015, 2016 : Doors and luggage compartment central locking |
| F43 | 20 | Windscreen/rear window washer pump |
| F47 | 20 | Electric window motor complete with control unit (driver side door) |
| F48 | 20 | Electric window motor complete with control unit (passenger side door) |
| F49 | 5 | Parking sensor control unit, rain/dusk sensor on interior rear view mirror, electrochromic sensor on interior rear view mirror, seat belts fastened warning light display on interior rear view mirror, control panel lighting (central control panel, driver side control panel, control panel on steering wheel), heater pad activation switches on front seats, alarm system volumetric sensor control unit, electric sun roof control unit 2015: 2016 Parkinq sensors, control lighting, electrochromic mirror, rain/dusk sensor, soft top, TMPS; cigar lighterlighting, SBR system panel |
| F51 | 5 | Clutch activation switch, brake light switch, relay switch coils on engine fuse box control unit, control system on internal climate control/heater unit, flow meter, water presence in diesel sensor, radio, radio setup system (for versions/markets, where provided) 2015: 2016: Climate control system controls, radio preparation system; Bluetooth®, brake light switch (NC), clutch switch, reverse switch, flow meter (diesel versions), water in diesel filter sensor (diesel versions) |
| F53 | 5 | Instrument panel 2015, 2016 Instrument Panel Node |

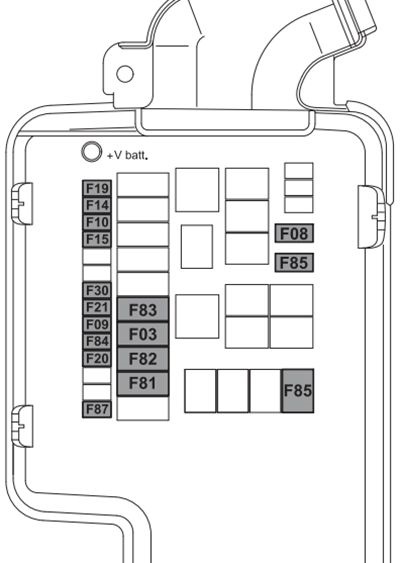

Engine Compartment Fuse Box
| № | AMPS | DEVICE PROTECTED |
|---|---|---|
| F03 | 20 | Starter 2017: Ignition device |
| F08 | 40 | Passenger compartment electric fan |
| F09 | 5 | Additional heater (Turbo TwinAir 105 HP and 1.3 JTD M . 2 85 HP versions) 2017: Additional heater (Turbo TwinAir and 1.3 JTD M . 2 versions) |
| F10 | 15 | Two-tone horns |
| F14 | 15 | Main beam headlights |
| F15 | 30 | Additional heater (PTC 1) |
| F19 | 7,5 | Air conditioning compressor |
| F20 | 30 | Heated rear windscreen, defrosting system |
| F21 | 15 | Electric fuel pump in tank |
| F30 | 15 | Fog lights |
| F81 | 60 | Additional heater (PTC2) |
| F82 | 40 | Additional heater (PTC1) |
| F82 | 50 | Additional heater (PTC2) |
| F83 | – | Free |
| F84 | 20 | HI-FI sound system (control units, Bassbox speaker) mechanical gearbox setup |
| F85 | 15 | Power socket on tunnel |
| F87 | 7,5 | Electric door mirror demisters, demisters on windscreen jets, relay switch coil for heated windscreen |

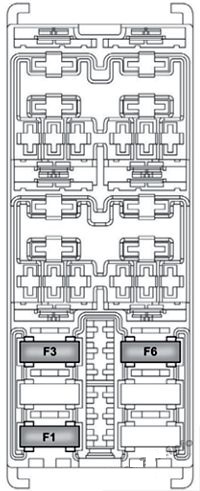

Luggage Compartment Fuse Box
| № | AMPS | DEVICE PROTECTED |
|---|---|---|
| F1 | 20 | Electric roof opening system |
| F3 | 15 | Luggage compartment power socket |
| F6 | 15 | Front seat heater |
