BMW X3 F25 (2011 – 2017) Fuse Box Location & Diagrams
The BMW X3 F25 (2011–2017) features multiple fuse boxes that protect essential electrical systems. This blog provides accurate fuse box locations, detailed diagrams, and fuse assignments to help you quickly identify, inspect, and replace the correct fuse for troubleshooting.
Fuse Box Location

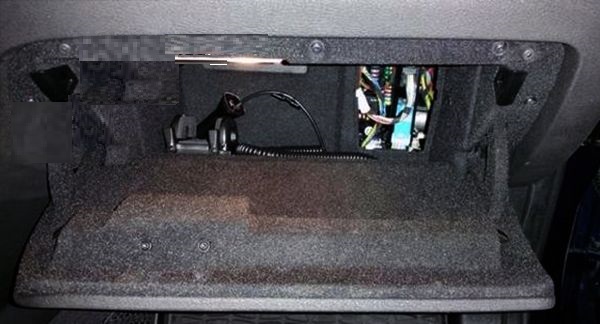

Passenger Compartment Fuse Box
Open the glove compartment; swing the cover down.

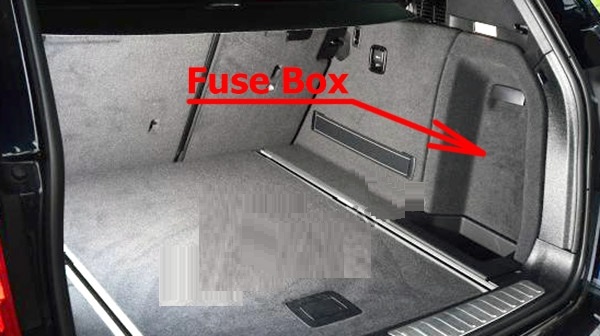

Luggage Compartment Fuse Box
Open the cover on the right side trim, and remove the sound insulation.
Fuse Box Diagrams

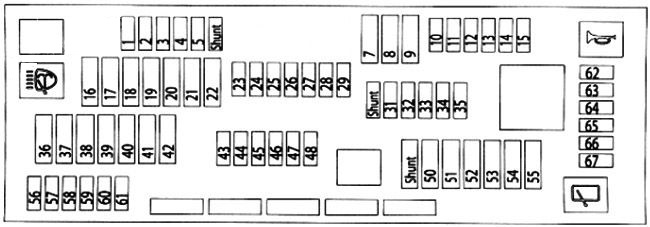

Passenger Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| 1 | 5A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 2 | 5A | Door module / Automatic soft-close |
| 3 | 5A | OBD |
| 4 | 5A | Telephone |
| 5 | 10A | Interior lights |
| 7 | 30A | Power windows with anti-trapping function |
| 8 | 30A | Steering column function control module, Head-Up Display (HUD), Electric mirrors, Main headlights / Rain sensor / Light sensor / Electronic ride height control, Parking sensors / Home link (garage door opener), Horn, Door module / Automatic soft-close, Power windows with anti-trapping function, Rear wiper relay, Washer fluid heater, Instrument cluster, Air conditioner system, Windscreen washers, Headlight washing system |
| 9 | 30A | Power windows with anti-trapping function |
| 10 | 10A | Head-Up Display (HUD), Light module |
| 11 | 7.5A | Air conditioner system |
| 12 | 5A | Instrument cluster |
| 13 | 5A | Steering column function control module, Head-Up Display (HUD), Main headlights / Rain sensor / Light sensor / Electronic ride height control, Light module, Interior lights, Instrument cluster, HiFi Amp, TV tuner, Video module |
| 14 | 15A | Door module / Automatic soft-close |
| 15 | 20A | Door module / Automatic soft-close |
| 16 | 40A | Main headlights / Rain sensor / Light sensor / Electronic ride height control, Light module |
| 17 | 30A | Power windows with anti-trapping function |
| 18 | 30A | Power windows with anti-trapping function |
| 19 | 20A | Trailer module |
| 23 | 5A | Telephone |
| 24 | 10A | Steering column function control module, Main headlights / Rain sensor / Light sensor / Electronic ride height control |
| 25 | 5A | Head-Up Display (HUD) |
| 26 | 5A | Instrument cluster |
| 27 | 5A | Telephone |
| 31 | 5A | Head-Up Display (HUD), Heated seats, Seat adjustment, Air conditioner system, HiFi Amp, TV tuner, Video module |
| 32 | 7.5A | Electric mirrors, Door module / Automatic soft-close, Power windows with anti-trapping function, Seat adjustment |
| 33 | 5A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Steering column function control module, Electric fan |
| 34 | 5A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Air suspension system, Dynamic drive system |
| 35 | 15A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Digital Diesel Electronics (DDE), DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 36 | 30A | Windscreen washers, Headlight washing system |
| 37 | 30A | Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Dynamic drive system |
| 38 | 40A | START-STOP system, Door module / Automatic soft-close |
| 39 | Steering column function control module | |
| 40 | 30A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |
| 43 | 5A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Steering column function control module, Head-Up Display (HUD), , HiFi Amp, TV tuner, Video module |
| 44 | 5A | Heating / Independent aux. heater, Air conditioner system, HiFi Amp, TV tuner, Video module |
| 45 | Steering column function control module, Head-Up Display (HUD), Parking sensors / Home link (garage door opener), Dynamic drive system | |
| 46 | 10A | Electric fan, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| 47 | 5A | Head-Up Display (HUD), Air suspension system, Dynamic drive system |
| 48 | 5A | Heating / Independent aux. heater, Interior lights |
| 51 | 30A | Rear wiper relay |
| 52 | 30A | Seat adjustment |
| 53 | 30A | Seat adjustment |
| 54 | 20A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 55 | 20A | Rear wiper relay |
| 56 | 5A | START-STOP system, Door module / Automatic soft-close |
| 58 | 5A | Alarm, Sunroof, Panorama glass, Convertible top module, Convertible top module / Convertible relay |
| 60 | 5A | Steering column function control module |
| 61 | 20A | Sunroof, Panorama glass, Convertible top module, Electric rear sunshade, Convertible top module / Convertible relay |
| 62 | 15A | Horn |
| 63 | 10A | Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |
| 64 | 7.5A | Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |
| 65 | 15A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 66 | 7.5A | Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD, Main headlights / Rain sensor / Light sensor / Electronic ride height control, Light module, Interior lights |
| 67 | 10A | Seat adjustment |

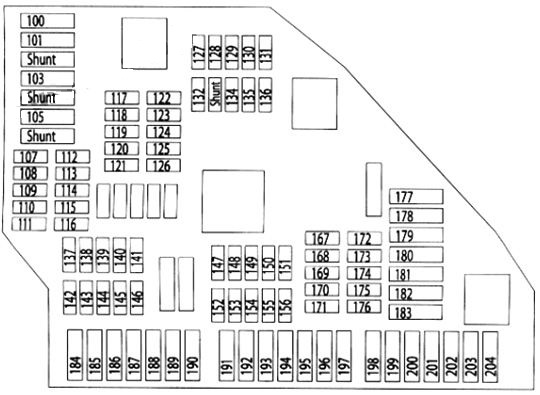

Luggage Compartment Fuse Box
| № | Amps | Description |
|---|---|---|
| 100 | 20A | Trailer module, Electric rear sunshade |
| 101 | 40A | Main headlights / Rain sensor / Light sensor / Electronic ride height control |
| 103 | 30A | START-STOP system |
| 105 | 30A | HiFi Amp, TV tuner, Video module |
| 115 | 5A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control) |
| 117 | 5A | Telephone |
| 118 | 5A | Head-Up Display (HUD), Air suspension system, HiFi Amp, TV tuner, Video module |
| 119 | 15A | Head-Up Display (HUD) |
| 120 | 5A | Head-Up Display (HUD), HiFi Amp, TV tuner, Video module |
| 121 | 5A | Head-Up Display (HUD), Electric fan |
| 125 | 5A | CD changer / Can Gateway module |
| 126 | 15A | HiFi Amp, TV tuner, Video module |
| 132 | 5A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control) |
| 137 | Electric fan | |
| 139 | 5A | Fuel pump relay / Fuel pump control, Tire pressure control RDV |
| 141 | 5A | Main headlights / Rain sensor / Light sensor / Electronic ride height control, Light module |
| 142 | 20A | Heating / Independent aux.heater |
| 143 | 15A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 144 | 15A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 145 | 20A | Trailer module |
| 146 | Trailer module | |
| 148 | 20A | Trailer module |
| 153 | 5A | Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| 154 | 5A | Light module |
| 155 | 15A | Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| 169 | 5A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control) |
| 170 | 5A | Head-Up Display (HUD), HiFi Amp, TV tuner, Video module |
| 171 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) | |
| 175 | 20A | Heating / Independent aux. heater |
| 176 | 15A | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 184 | 20A | Fuel pump relay / Fuel pump control |
| 185 | 30A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), HiFi Amp, TV tuner, Video module |
| 186 | 20A | Heated seats |
| 187 | 20A | Heated seats |
| 188 | 20A | Heated seats |
| 189 | 20A | Heated seats |
| 190 | 30A | ABS (Anti-lock Brake System), DSC (Dynamic Stability Control) |
| 200 | 40A | Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| 201 | 20A | Air suspension system |
| 203 | 30A | Rear window defroster (defogger) |
