BMW X3 G01 (2018 – 2024) Fuse Box Location & Diagrams
The BMW X3 G01 (2018–2024) features multiple fuse boxes that protect essential electrical systems and components. This blog provides accurate fuse box locations, detailed fuse diagrams, and fuse assignments, making it easier to identify, inspect, and replace the correct fuse for maintenance or troubleshooting.
Fuse Box Location

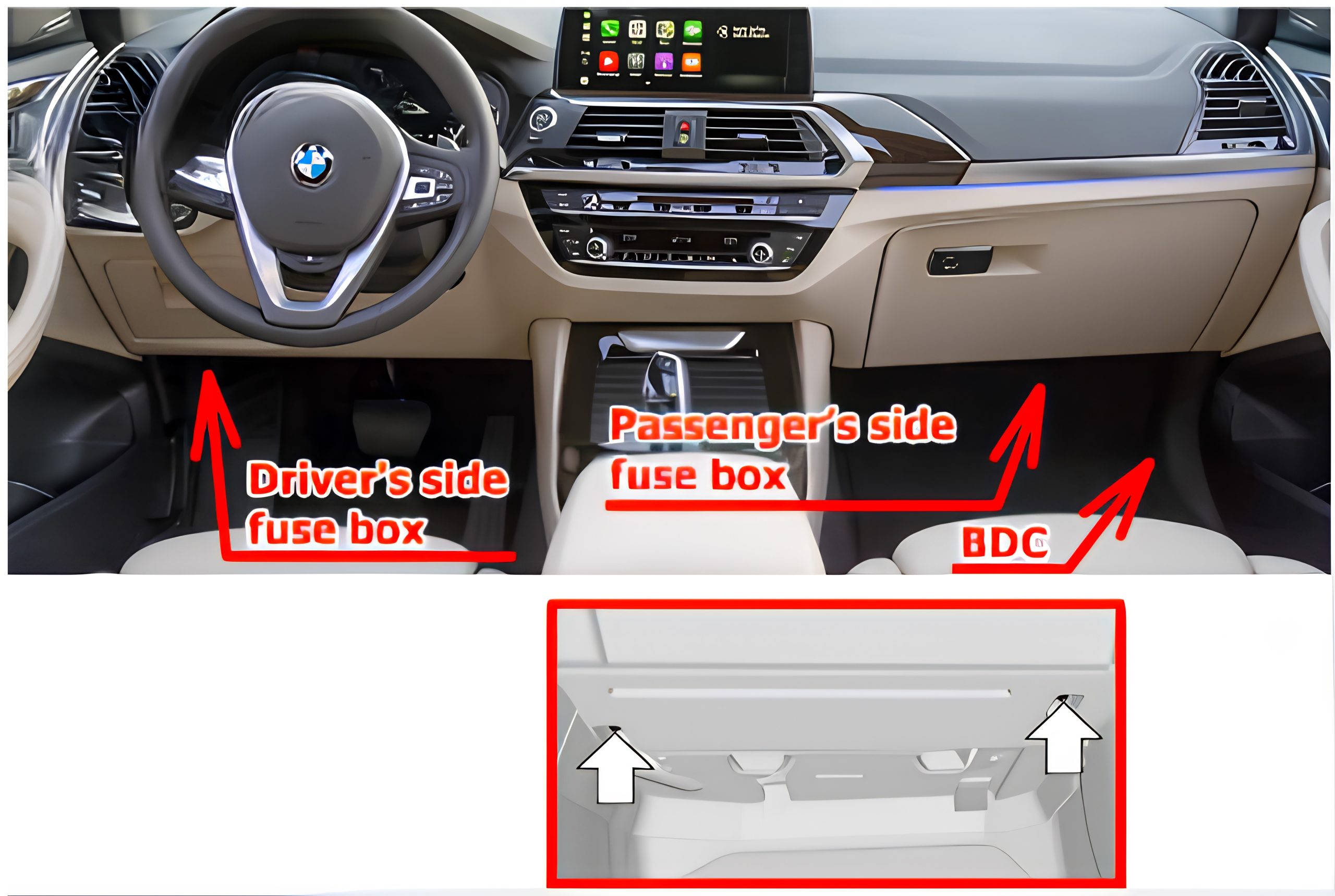

Passenger Compartment Fuse Boxes
Two fuse panels are located under the dashboard – the first on the passenger side, the second on the driver’s side (you may need to remove the protective trim – loosen fasteners, arrows, and open the cover). There are also several fuses on the Body Domain Controller, which is located in the passenger-side pillar, behind the trim.

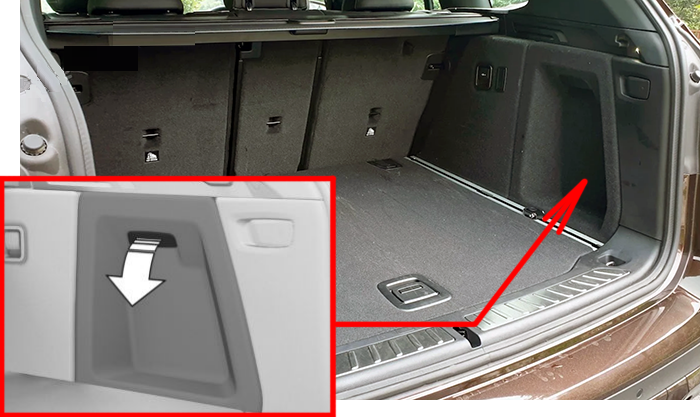

Luggage Compartment Fuse Box
The fuses are located in the cargo area on the right side behind a cover. The fuse box is located behind the sound insulation.
Fuse Box Diagrams
Passenger Compartment Fuse Boxes
Passenger’s side fuse box
| Type | No. | Description |
| Fuse ATO 30A | 20 | Power window actuator, driver’s door with control electronics |
| Fuse ATO 30A | 21 | Front passenger window with control electronics |
| Fuse ATO 30A | 22 | Rear power window driver’s side with control electronics |
| Fuse ATO 30A | 23 | Passenger side rear power window with control electronics |
| Fuse ATO 30A | 24 | Left reversible electromotive automatic reel (seat belt) |
| Fuse ATO 20A | 25 | Roof function center |
| Fuse ATO 20A | 26 | Headlights, rain sensor, light sensor |
| Fuse ATO – | 27 | – |
| Fuse ATO 40A | 28 | Dynamic Stability Control (DSC), ABS, parking |
| Fuse ATO 20A | 29 | Headlights, rain sensor, light sensor |
| Fuse MINI – | 30 | – |
| Fuse MINI – | 31 | – |
| Fuse MINI 5A | 32 | Parking brake, center console control panel |
| Fuse MINI – | 33 | – |
| Fuse MINI 5A | 34 | Instrument cluster control unit |
| Fuse MINI – | 35 | – |
| Fuse MINI 5A | 36 | Roof function center (map lamp, interior lighting, ambient lighting, alarm) |
| Fuse MINI – | 37 | – |
| Fuse MINI – | 38 | – |
| Fuse MAXI 60A | 39 | Body domain controller |
| Fuse MAXI 40A | 40 | Fan motor with output stage |
| Fuse MAXI – | 41 | – |
| Fuse ATO 20A | 46 | Cigarette lighter, thermo electric cup holder |
| Fuse ATO 20A | 47 | Cigarette lighter |
| Fuse ATO 20A | 48 | Seat heating |
| Fuse ATO 10A | 49 | Electric steering column adjustment |
| Fuse ATO 30A | 50 | Tow bar module |
| Fuse ATO 30A | 51 | B46, B48, B58, N63: Electronic transmission control, transfer case, 4*4 |
| Fuse ATO 20A | 52 | Front passenger seat heating electronics |
| Fuse ATO 30A | 53 | Driver’s seat module (with seat module), driver’s side seat adjustment switch block (without seat module) |
| Fuse ATO 20A | 54 | Independent auxiliary heater |
| Fuse ATO 30A | 55 | Front passenger seat module (with seat module), front passenger seat adjustment switch block (without seat module) |
| Fuse ATO 10A | 56 | Battery |
| Fuse ATO 10A | 57 | Driver assistant |
| Fuse MINI 5A | 59 | Electric mirrors, rain and light sensor |
| Fuse MINI 5A | 60 | Driver assistant |
| Fuse MINI 5A | 61 | Glove box light switch, interior lighting |
| Fuse MINI 5A | 62 | Interior lighting, 48V power control unit |
| Fuse MINI 5A | 63 | Air conditioning and ventilation system |
| Fuse MINI 5A | 64 | Driver’s seat back width adjustment valve block, driver’s lumbar support valve block, seat adjustment switch block (driver’s side), footwell taillight (driver’s side). backlight driver’s seat back panel, USB charging port, front left seat inflation module |
| Fuse MINI 5A | 65 | Front passenger back width adjustment valve block, Front passenger lumbar support valve block, Seat adjustment switch block (front passenger side), Rear footwell lighting (front passenger side), Front passenger seat backrest rear panel lighting, USB connector for charging No. 2, front Right seat inflation module |
| Fuse MINI 5A | 66 | Upper center instrument panel light, upper front passenger side instrument panel light. lower center instrument panel light, lower driver/passenger side instrument panel light, front left/right footwell light |
| Fuse MINI 5A | 67 | Driver’s door switch box, Driver’s door seat switch box, Driver’s door interior handle lighting, Driver’s door trim panel lighting (center), Driver’s door pocket lighting, Driver’s door trim panel lighting (top), Front left midrange speaker lighting, Front Left Tweeter Illumination |
| Fuse MINI 5A | 68 | Passenger’s exterior mirror, Passenger’s door switch box, Passenger’s interior door handle illumination, Front passenger’s door trim panel illumination (center), Passenger’s door pocket illumination, Front passenger’s door trim panel illumination (top), Front right midrange speaker illumination, Illuminated front right tweeter |
| Fuse MINI 5A | 69 | Electric fan, DME system, IVM module |
| Fuse MINI 5A | 70 | Rear switchboard, electric fan shutdown relay, electric fan |
| Fuse MINI 5A | 71 | Interior Light. Surround Camera (with Surround Camera), Rear View Camera |
| Fuse MINI 5A | 72 | Speed shift indicator, DSC, SMG |
| Fuse MINI 5A | 73 | Instrument cluster control unit |
| Fuse MINI 5A | 74 | Electric fan, battery, 48V |
| Fuse MINI 10A | 75 | Crash safety module |
| Fuse MINI 10A | 76 | Steering column switch box |
| Relay | R1 | Terminal 30B relay |
Driver’s side fuse box
| Type | No. | Description |
| Fuse MINI 7.5A | 105 | Electronics of electrical machines |
| Fuse MINI 10A | 107 | Hybrid |
| Fuse MINI 15A | 108 | Electronics and engine management |
| Fuse MINI 5A | 110 | Auxiliary electric heater, front midrange speaker lighting |
| Fuse MINI 5A | 111 | Rear switchboard |
| Fuse ATO 30A | 117 | [Hybrid]: Automatic transmission, transfer case |
| Relay | R2 | Terminal 30B relay |

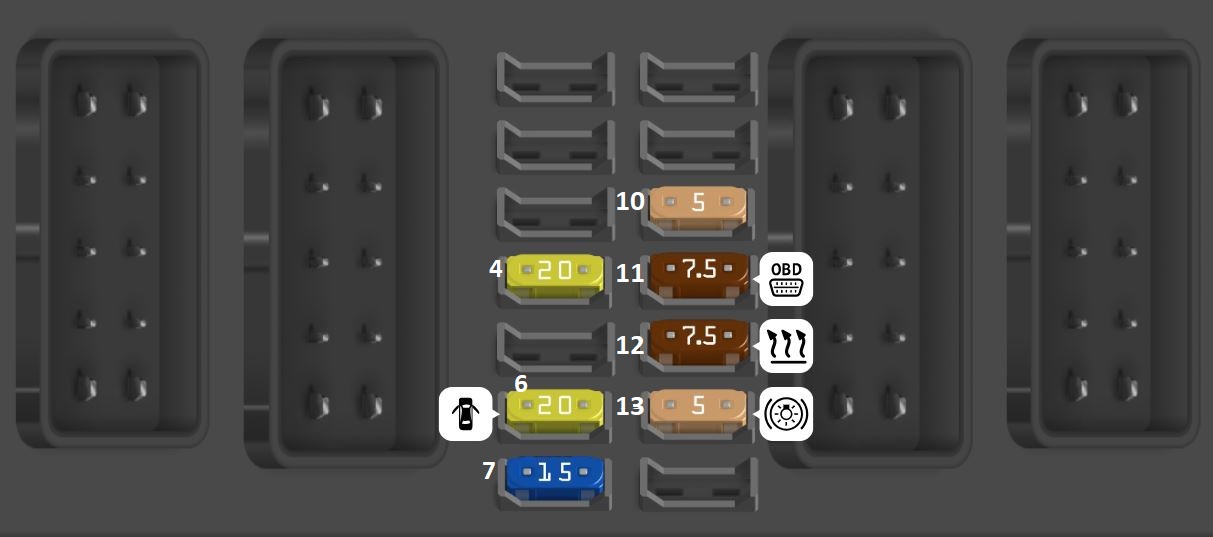

Body Domain Controller
| Type | No. | Description |
| Fuse MINI 20A | 4 | Lock relay, unlock relay (doors, fuel filler cap) |
| Fuse MINI 20A | 6 | Driver’s door lock relay (driver’s door lock, front passenger’s door lock, driver’s side rear door lock, rear passenger’s side door lock, fuel filler door central lock actuator) |
| Fuse MINI 15A | 7 | Signal (beep) |
| Fuse MINI 5A | 10 | Steering column switch block, front center ventilation grille, audio control panel, lighting control unit, head unit |
| Fuse MINI 7.5A | 11 | Diagnostic connector, electronic ride height control, vertical dynamics platform |
| Fuse MINI 7.5A | 12 | Heating / air conditioning system, rear door function module, rain / light / sun / condensation sensor |
| Fuse MINI 5A | 13 | Start/ stop system |

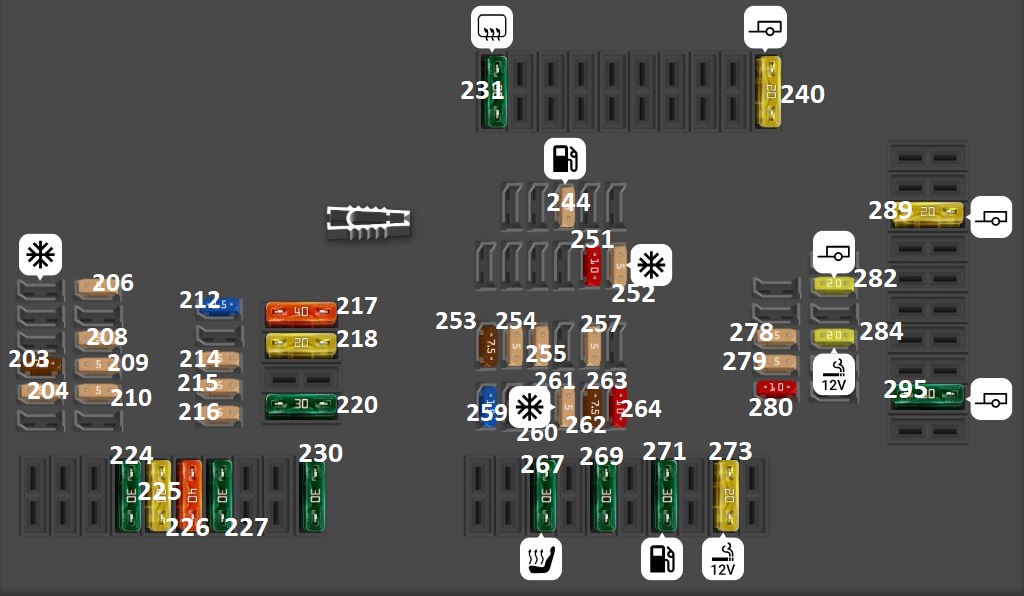

Luggage Compartment Fuse Box
| Type | No. | Description |
| Fuse MINI | 200 | Air-conditioning |
| Fuse MINI 7.5A | 203 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse MINI 5A | 204 | Driving Assistance |
| Fuse MINI 5A | 206 | Driving Assistance |
| Fuse MINI 5A | 208 | Driving Assistance |
| Fuse MINI 5A | 209 | Gear Indicator / DSC – Dynamic Stability Control / SMG – Sequential Manual Gearbox, DME – Digital Motor Electronics / Integrated Voltage Module – IVM, Hybrid system |
| Fuse MINI 5A | 210 | Steering column function control module |
| Fuse MINI 15A | 212 | Head-Up Display (HUD), Rear seat entertainment |
| Fuse MINI 5A | 215 | Rear seat entertainment |
| Fuse MINI 5A | 216 | Rear seat entertainment |
| Fuse ATO 20A | 218 | Rear seat entertainment |
| Fuse ATO 30A | 220 | Rear seat entertainment |
| Fuse ATO 30A | 224 | Level control system (air suspension compressor relay), Dynamic drive system, Air suspension system |
| Fuse ATO 20A | 225 | Main headlights / Rain sensor / Light sensor / Electronic ride height control |
| Fuse ATO 40A | 226 | Electric rear sunshade, Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| Fuse ATO 30A | 227 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO 30A | 230 | Seatbelts |
| Fuse ATO 30A | 231 | Rear window defroster (defogger) |
| Fuse ATO 20A | 240 | Trailer module |
| Fuse MINI 5A | 244 | Alarm, Fuel pump relay / Fuel pump control, Door module / Automatic soft-close, Hybrid system |
| Fuse MINI 5A | 252 | Air-conditioning, Hybrid system, Interior lights |
| Fuse MINI 5A | 254 | Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| Fuse MINI 5A | 255 | Driving Assistance |
| Fuse MINI 5A | 257 | Seatbelts, Steering column function control module |
| Fuse MINI 15A | 259 | DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse MINI 5A | 262 | Air-conditioning |
| Fuse MINI 10A | 264 | Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| Fuse ATO 30A | 267 | Heated seats, Seat adjustment |
| Fuse ATO 30A | 269 | Gear Indicator / DSC – Dynamic Stability Control / SMG – Sequential Manual Gearbox |
| Fuse ATO 30A | 271 | Fuel pump relay / Fuel pump control, DME – Digital Motor Electronics / Integrated Voltage Module – IVM |
| Fuse ATO 20A | 273 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| Fuse MINI 5A | 278 | Hybrid system |
| Fuse MINI 5A | 279 | Boot lid (tailgate) lock / Soft-close automatic for tailgate |
| Fuse MINI 10A | 280 | Hybrid system |
| Fuse MINI 20A | 282 | Trailer module |
| Fuse MINI 20A | 284 | Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V), Trailer module |
| Fuse ATO 20A | 289 | Trailer module |
| Fuse ATO 30A | 295 | Trailer module |
| Fuse puller | FP | Fuse Puller |
