BMW X5 E70 (2007 – 2013) Fuse Box Location & Diagrams
Finding the correct fuse box in your BMW X5 E70 (2007–2013) is essential for diagnosing electrical issues and replacing blown fuses safely. This blog provides fuse box locations, detailed diagrams, and fuse assignments to help you identify the right fuse for every electrical component quickly.
Fuse Box Location

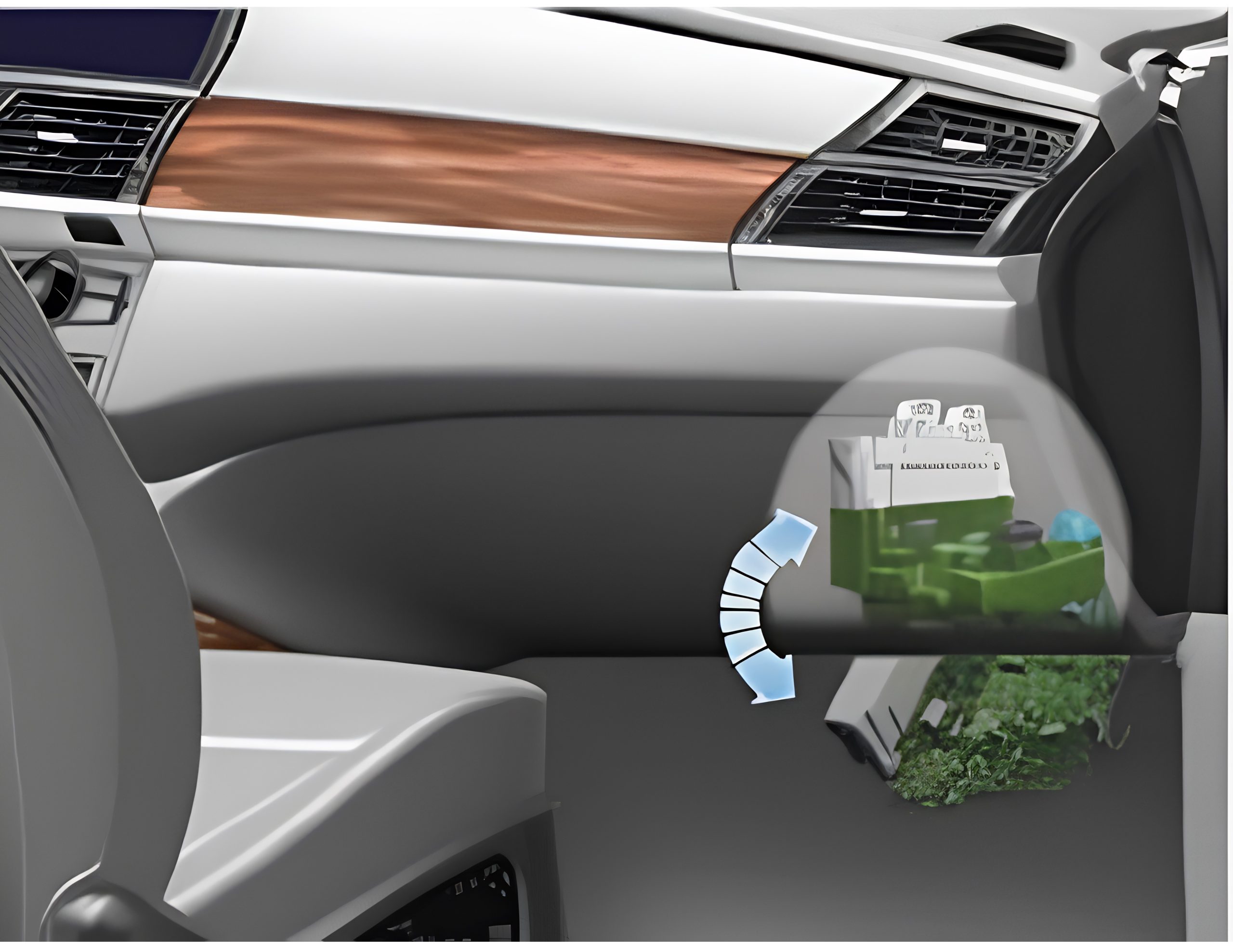

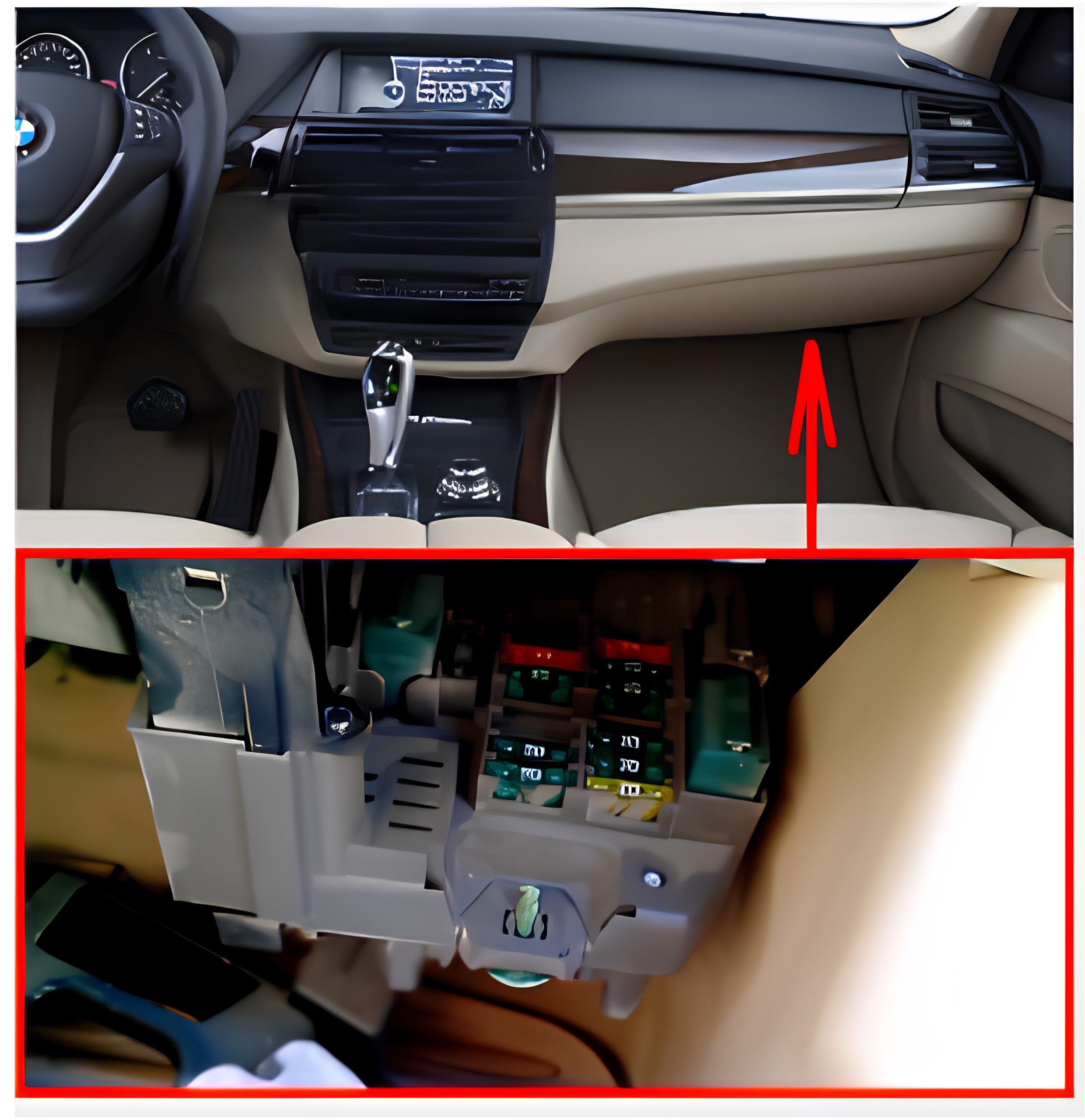

Passenger Compartment Fuse Box
It is located under the glove compartment.
- Unscrew a few screws from the bottom, remove the cover;
- Unscrew the green screw;
- Pull the panel down.

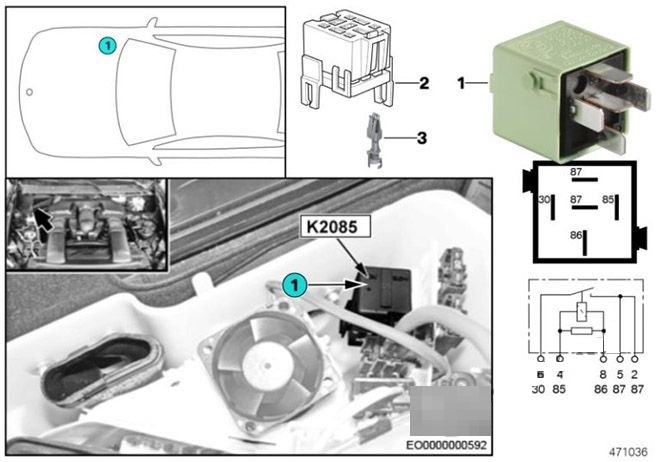

Engine Compartment Fuse Box
The distribution box is located on the right side, it is closed with a protective cover.

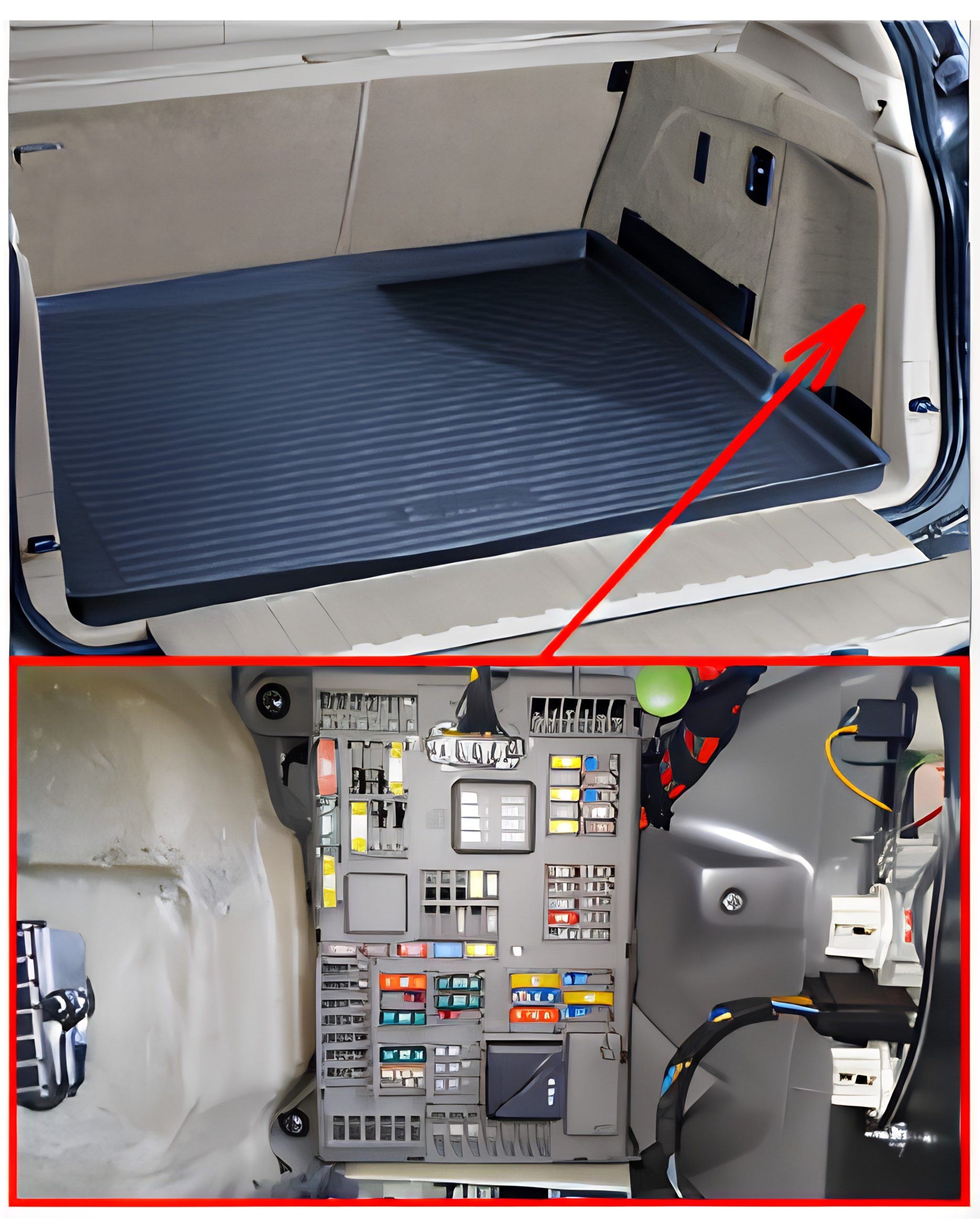

Luggage Compartment Fuse Box
It is located on the right side, behind the cover and sound insulation.

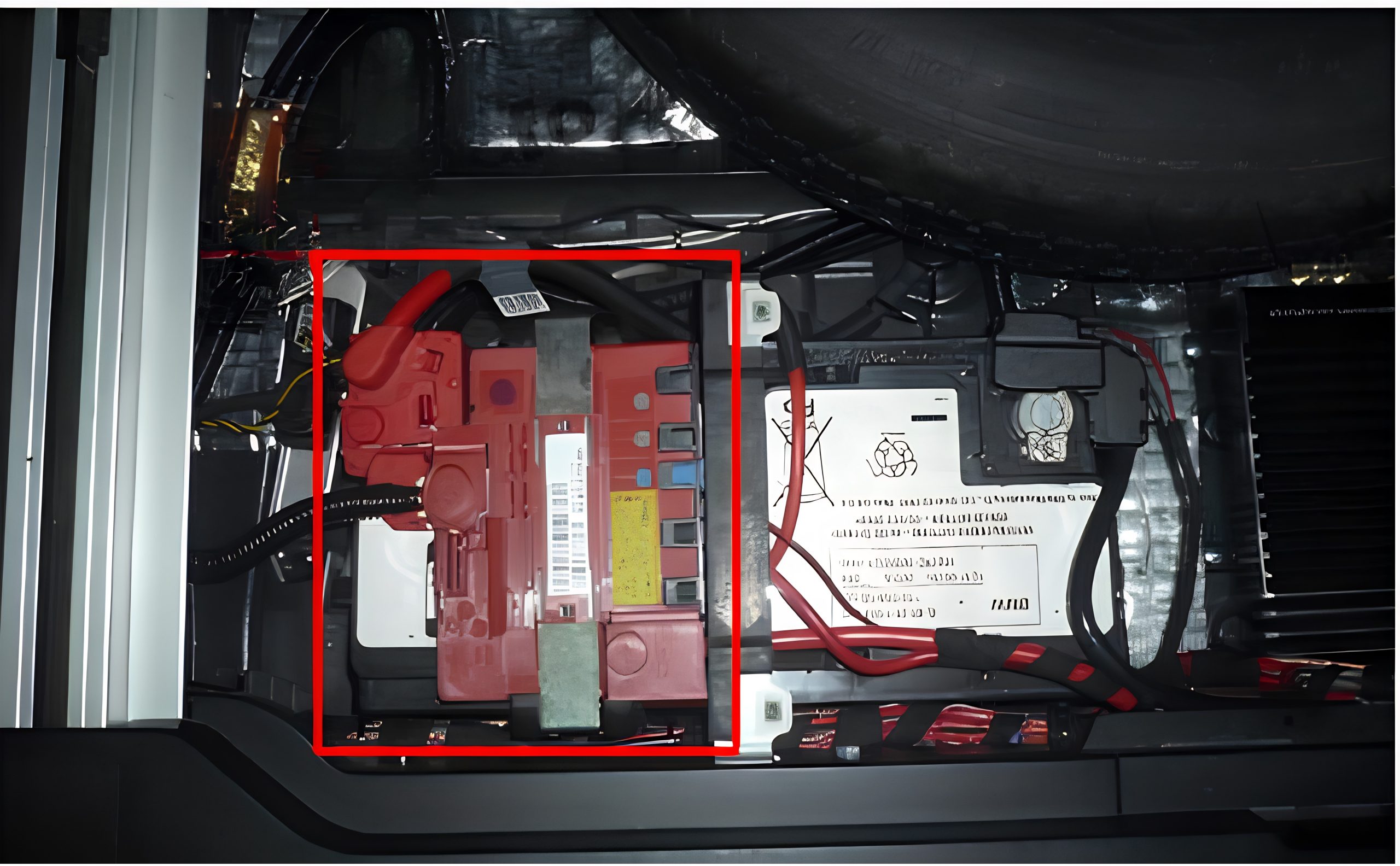

Fuses on the battery
Located on the battery in the luggage compartment, under the lining.
Fuse Box Diagrams

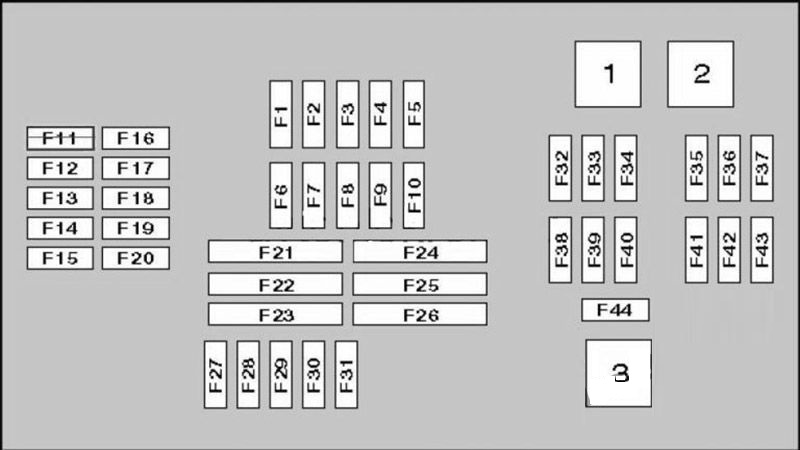

Passenger Compartment Fuse Box
| № | A | Component |
|---|---|---|
| 1 | Suspension compressor motor relay | |
| 2 | Rear screen wiper relay | |
| 3 | Windscreen wiper motor relay | |
| F1 | 20A | – |
| F2 | 10A | Glove box locking motor |
| F3 | 7,5A | – |
| F4 | 10A | Engine control module (ECM) |
| F5 | 10A | – |
| F6 | 10A | – |
| F7 | 5A | – |
| F8 | 7,5A | – |
| F9 | 15A | Horns |
| F10 | 5A | – |
| F11 | 20A | – |
| F12 | 10A | Steering column function control module |
| F13 | 15A | Transmission control module (TCM) |
| F14 | 10A | |
| F15 | 10A | Transmission selector lever |
| F16 | 7,5A | Electric window switch |
| F17 | 7,5A | – |
| F18 | 7,5A | – |
| F19 | 5A | – |
| F20 | – | – |
| F21 | 30A | Heated rear window |
| F22 | – | – |
| F23 | 40A | – |
| F24 | 40A | Active steering |
| F25 | 30A | – |
| F26 | 30A | Head lamp washer pump |
| F27 | 15A | Central locking system |
| F28 | 15A | Central locking system |
| F29 | 40A | Rear electric windows |
| F30 | 30A | Central locking system |
| F31 | 40A | Rear electric windows |
| F32 | 40A | Suspension com pressor pump |
| F33 | 30A | – |
| F34 | 30A | – |
| F35 | 30A | Engine management |
| F36 | 30A | Engine management |
| F37 | 30A | Rear screen wiper motor |
| F33 | 30A | – |
| F39 | 40A | – |
| F40 | 30A | ABS control module |
| F41 | 7.5A | |
| F42 | 30A | Engine management |
| F43 | 30A | Engine management |
| F44 | 30A | Windscreen wiper motor |

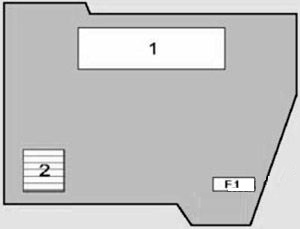

Engine Compartment Fuse Box
| № | Component |
|---|---|
| 1 | Electronic block of the engine management |
| 2 | Valve lift control relay |
| F1 | (40A) Valve lift control relay |

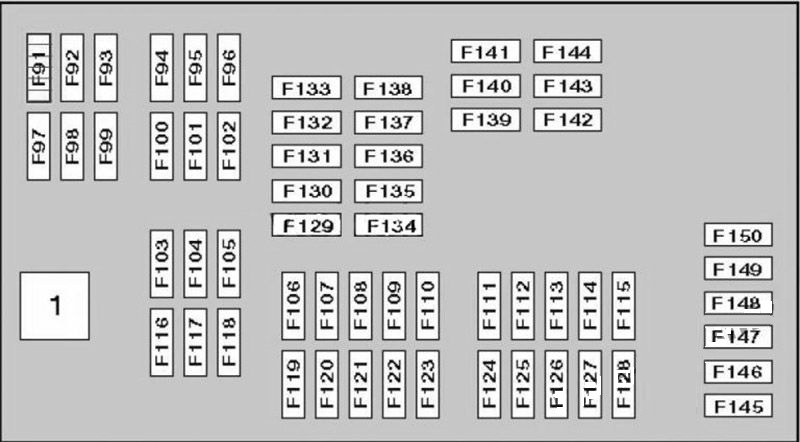

Luggage Compartment Fuse Box
| № | A | Component |
|---|---|---|
| 1 | Circuit cut-off relay | |
| F91 | 30A/40A | – |
| F92 | 25A | Transfer box control module |
| F93 | 40A | – |
| F94 | 30A | (30A) Parking brake control module |
| F95 | 30A/40A | – |
| F96 | 40A | – |
| F97 | 20A | – |
| F98 | 15A/20A | – |
| F99 | 40A | (40A) Tail gate open/close control module |
| F100 | 20A | – |
| F101 | 30A | – |
| F102 | 30A | – |
| F103 | 30A | (30A) Audio unit output amplifier |
| F104 | – | – |
| F105 | 30A | – |
| F106 | 7,5A | – |
| F107 | 10A | – |
| F108 | 5A | – |
| F109 | 10A | Navigation system receiver |
| F110 | 7,5A | – |
| F111 | 20A | cigarette lighter (main ashtray socket) |
| F112 | 5A | – |
| F113 | 20A | cigarette lighter (center armrest console) |
| F114 | 5A | – |
| F115 | – | – |
| F116 | 20A | Trailer socket |
| F117 | 20A | – |
| F118 | 20A | – |
| F119 | 5A | Multimedia control module |
| F120 | 5A | Active suspension control module |
| F121 | 5A | Tailgate open/close control module |
| F122 | – | – |
| F123 | – | – |
| F124 | 5A | Fascia fuse box/relay plate |
| F125 | 5A | Transfer box control module |
| F126 | 5A | – |
| F127 | – | – |
| F128 | – | – |
| F129 | 5A | – |
| F130 | – | – |
| F131 | 5A | – |
| F132 | 7,5A | – |
| F133 | – | – |
| F134 | 5A | Steering column function control module |
| F135 | 20A | Tailgate open/close control module |
| F136 | 5A | – |
| F137 | 5A | Navigation system |
| F138 | – | – |
| F139 | 20A | – |
| F140 | 20A | Sea theater control module, left front |
| F141 | 20A | Seat heater control module, right front |
| F142 | 20A | Multimedia control module |
| F143 | 25A | Trailer control module |
| F144 | 5A | Trailer control module |
| F145 | 10A | Assisted door closing motor, right front |
| F146 | 10A | Assisted door closing motor, left front |
| F147 | 10A | Assisted door closing motor, left rear |
| F148 | 10A | Assisted door closing motor, right rear |
| F149 | 5A | Seat multifunction switch, left front |
| F150 | 5A | Seat multifunction switch, right front |
Fuses on the battery
| № | Component |
|---|---|
| F171 | (100A) |
| F172 | (100A) |
| F173 | (250A) Dashboard fuse block |
| F174 | — |
| F175 | — |
| F176 | (80A) Valve lift control relay |
