BMW X5 E53 (1999 – 2006) Fuse Box Location & Diagrams
The BMW X5 E53 (1999–2006) fuse box blog helps you quickly locate interior and engine compartment fuse boxes with detailed diagrams. Find fuse assignments for electrical components, making troubleshooting, maintenance, and fuse replacement easier while keeping your BMW X5’s electrical system operating properly.
Fuse Box Location
Passenger Compartment Fuse Box

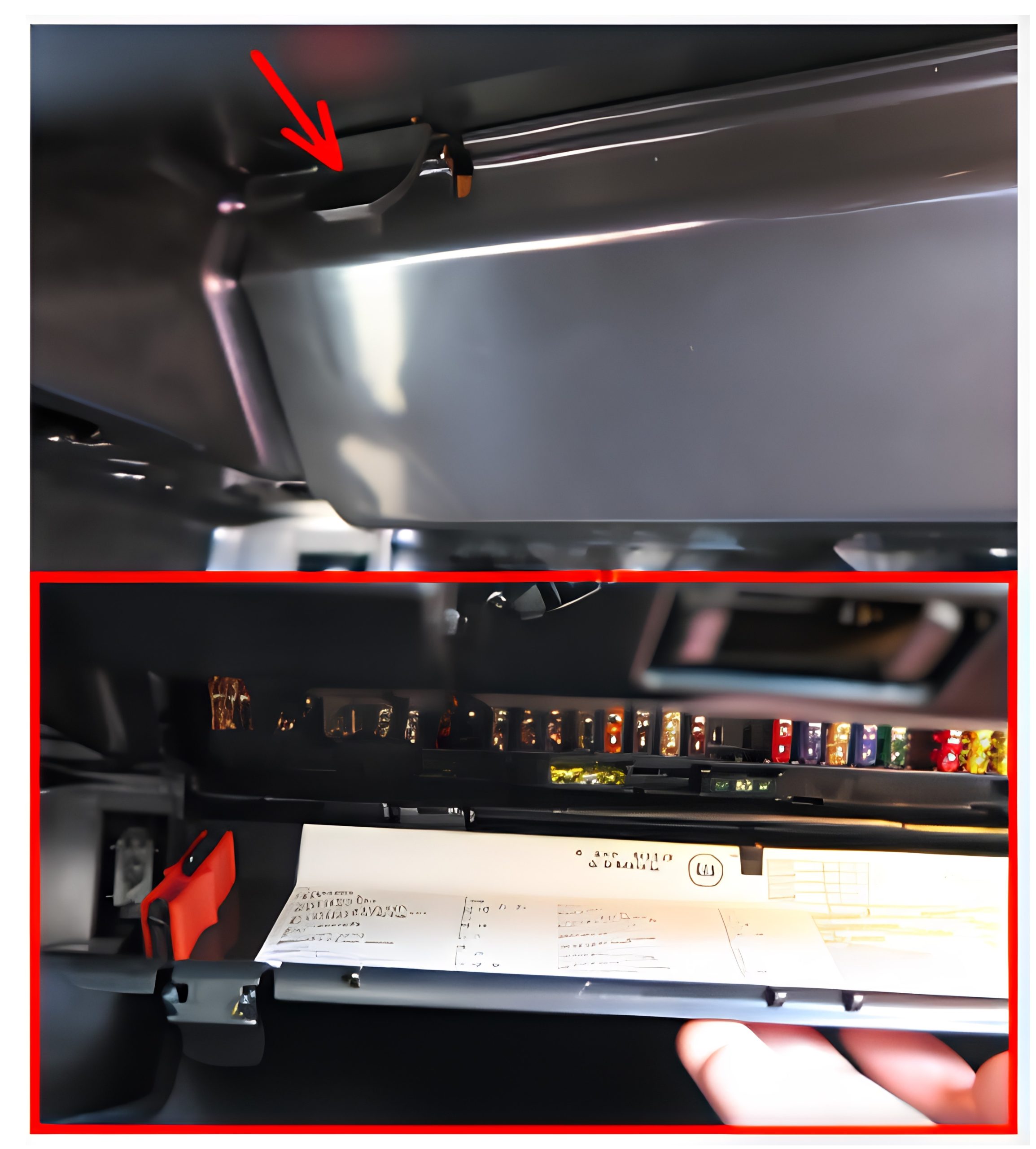

Glove Compartment Fuse Box
Open the glove compartment, unhook the two holders at the top, pull the panel down.

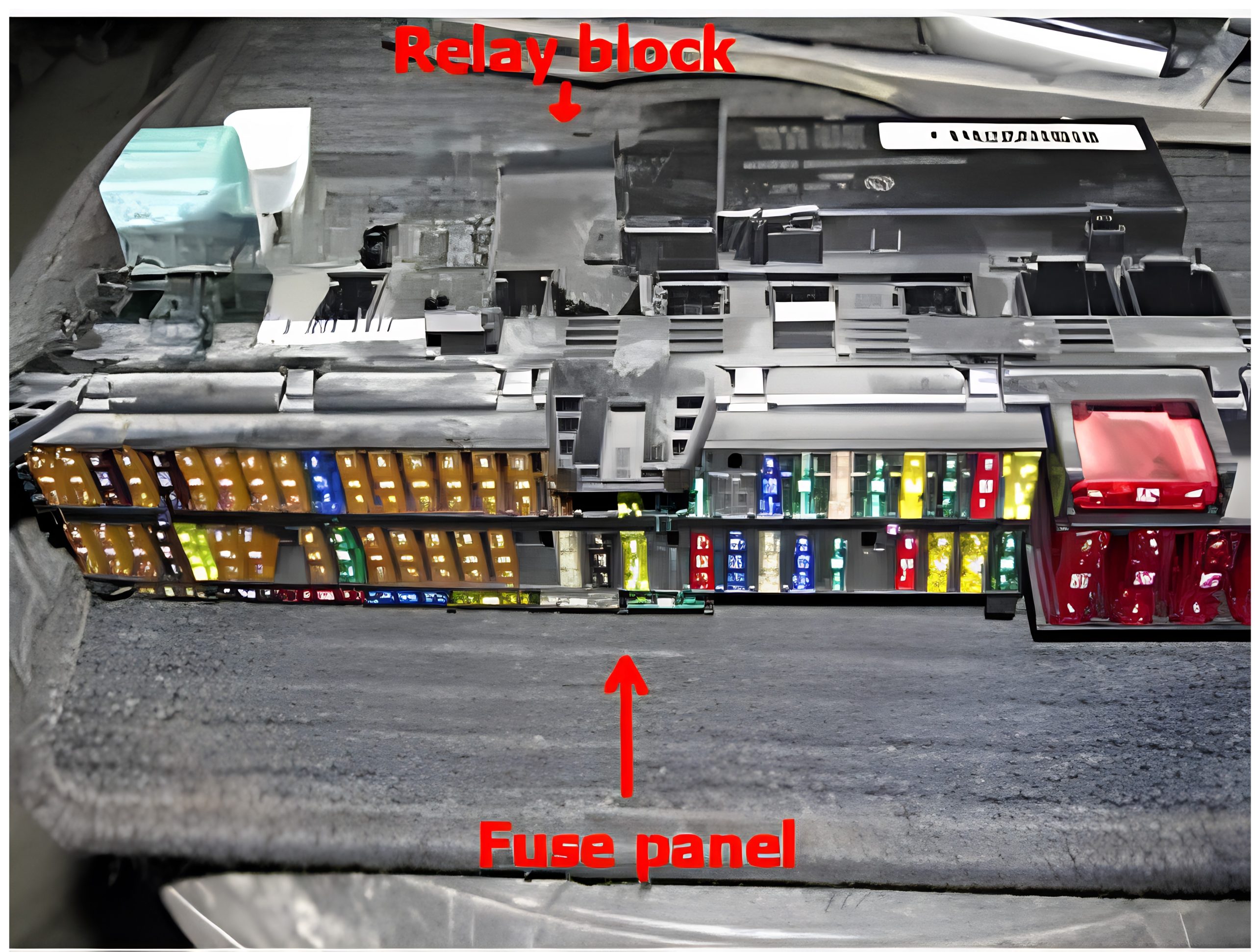

Relay Block
It is located behind the fuse box.

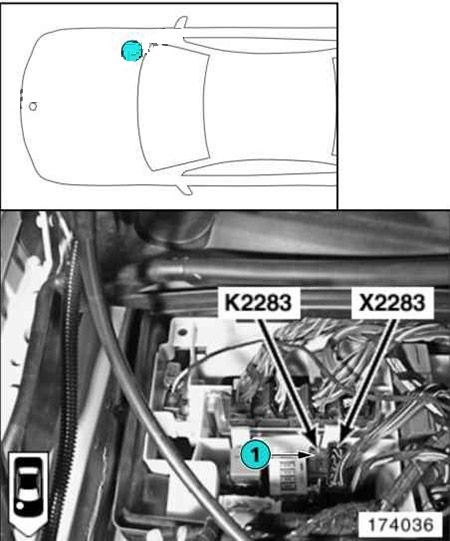

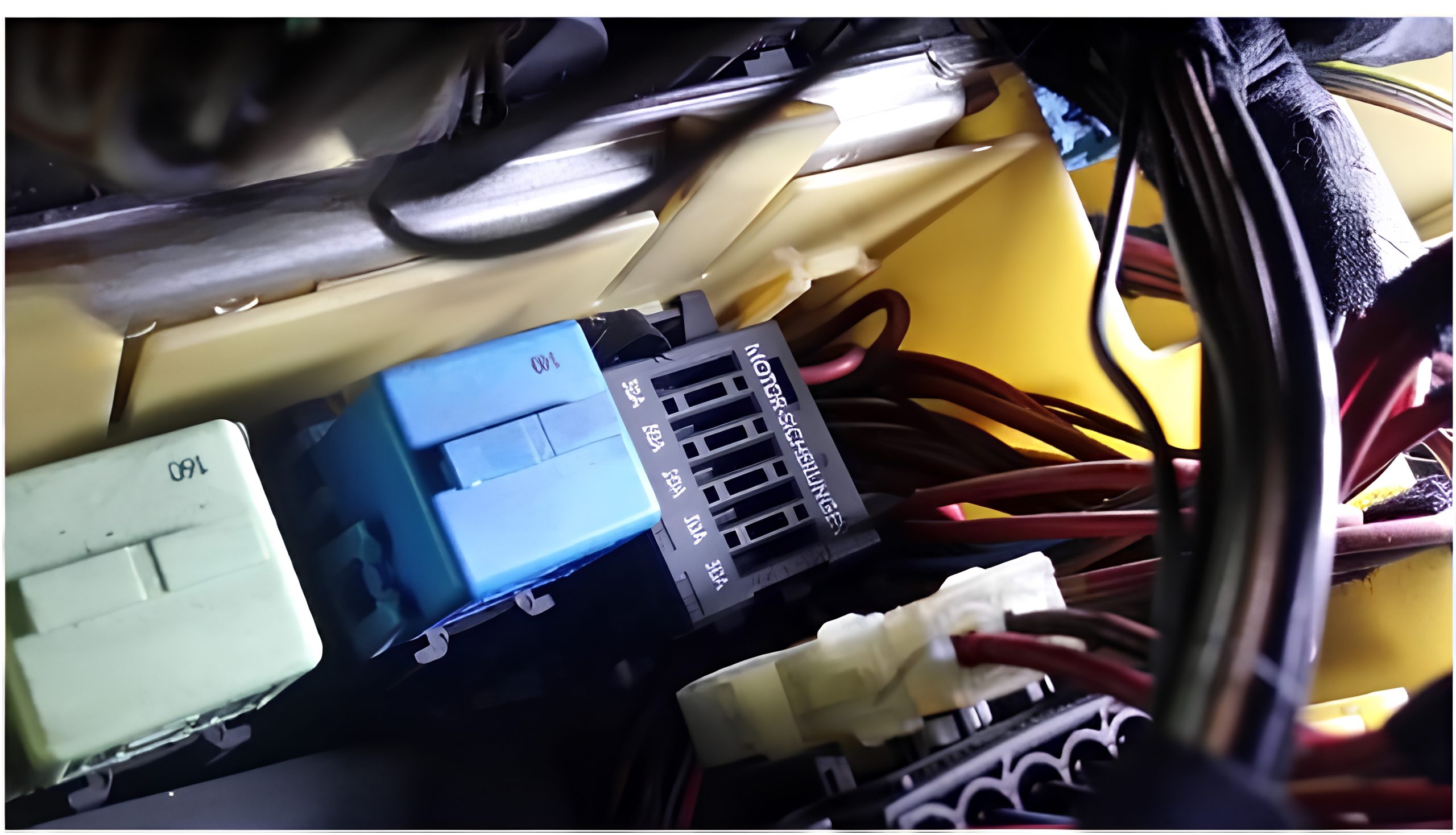

Engine Compartment Fuse Box
Some relays are located in the mounting block, under the hood (horn relay, glow plug relay, fuel pump relay, headlight washer relay, etc.). Depending on the configuration, there may be fuses.

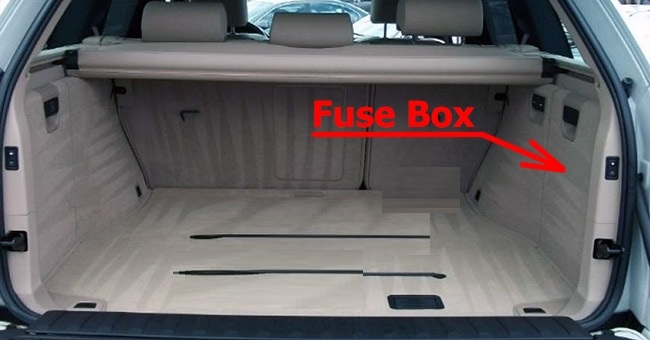

Luggage Compartment Fuse Box
It is located on the right side, behind the cover.
Fuse Box Diagrams
Passenger Compartment Fuse Box

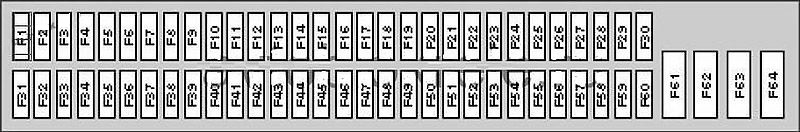

Glove Compartment Fuse Box
| № | A | Component |
|---|---|---|
| F1 | 5A | Data bus connection, instrument panel |
| F2 | 5A | Lamps control module |
| F3 | 5A | Heater/air conditioning (AC) (until 02/01) |
| F4 | 5A | Ignition coil relay |
| F5 | 7,5A | Alternator, engine oil level sensor, fuse box/relay plate cooling fan motor |
| F6 | 5A | Interior rearview mirror, parking aid control module(until 02/04), tyre pressure monitor control module |
| F7 | 5A | Ignition coil relay |
| F8 | 5A | Instrument illumination |
| F9 | 5A | Airbag, brake pedal position (BPP)switch, lamps control module |
| F10 | 15A | Horn |
| F11 | 5A | Immobilizer |
| F12 | 5A | Instrument illumination, steering position sensor |
| F13 | 5A | Alarm system, interior rearview mirror |
| F14 | 5A | Multifunction control module 1 |
| F15 | 5A | Tyre pressure monitor control module (until 02/04) |
| F16 | 5A | Ignition switch |
| F17 | 5A | Interior lamps control module |
| F18 | – | – |
| F19 | – | – |
| F20 | 30A | Door function control module, driver |
| F21 | 30A | Electric seats |
| F22 | – | – |
| F23 | – | – |
| F24 | 30A | Door function control module, passenger |
| F25 | 25A | Charging socket, cigarette lighter |
| F26 | 30A | Ignition main circuits relay |
| F27 | 20A | Multifunction control module 1 |
| F28 | 30A | Headlamp washers |
| F29 | 10A | Airbag |
| F30 | – | – |
| F31 | 5A | Engine management |
| F32 | 5A | Ignition main circuits relay, multifunctioncontrolmodule2 |
| F33 | 5A | Cigarette lighter |
| F34 | 7,5A | Heated rear window, heater/air conditioning (AC) |
| F35 | – | – |
| F36 | 5A | Charging socket |
| F37 | 5A | Multifunction control module 2 |
| F33 | – | – |
| F39 | 5A | Clutch pedal position (CPP) switch, immobilizer |
| F40 | 30A | Windscreen wipers |
| F41 | 5A | Rear screen wash/wipe system, multifunction control module 1 |
| F42 | 5A | Interior lamps |
| F43 | 5A | Instrument panel |
| F44 | 5A | Airbag, electric seats |
| F45 | 5A | Instrument panel |
| F46 | 7,5A | Transfer box control module |
| F47 | 25A | Fuel pump (FP) relay |
| F48 | 7,5A | Heater/air conditioning (AC) |
| F49 | – | – |
| F50 | – | – |
| F51 | 10A | Anti-lock brake system (ABS), engine management |
| F52 | 15A | Datalink connector (DLC) (until 09/00) |
| F53 | 25A | Multifunction control module 2 |
| F54 | 15A | Transmission control module(TCM) |
| F55 | 30A | Anti-lock brake system (ABS) |
| F56 | – | – |
| F57 | 15A | Suspension control module |
| F58 | 20A | Sunroof |
| F59 | 20A | Auxiliary heater |
| F60 | 30A | Multifunction control module 1 |
| F61 | 50A | Engine coolant blower motor |
| F62 | 50A | Secondary air injection (AIR) pump relay |
| F63 | 50A | Anti-lock brake system (ABS) |
| F64 | 50A | Heater/air conditioning (AC) |

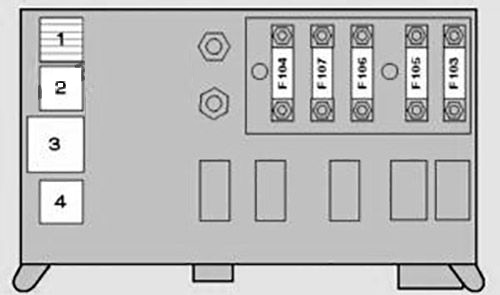

Relay Block
| № | A | Component |
|---|---|---|
| 1 | Fuel lift pump relay – Diesel | |
| 2 | – | |
| 3 | Interior lamps control module | |
| 4 | Horn relay | |
| F103 | – | – |
| F104 | 100A | Glow plugs |
| F105 | 80A | Immobilizer, ignition switch-4,4/4,6 ( until 02/02) |
| F106 | 50A | Ignition switch, lamps control module |
| F107 | 50A | Lamps control module |

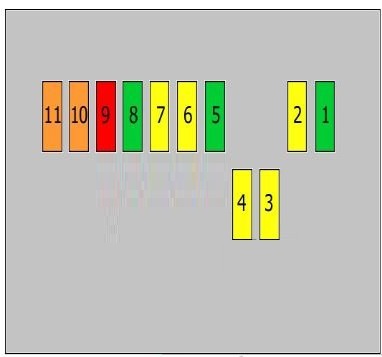

Engine Compartment Fuse Box
| No. | Purpose | A |
| 1 | Injectors (cylinders 5 – 8) | 30 |
| The engine control unit | ||
| Valve timing adjustment unit | ||
| 2 | Cabin carbon filter | 20 |
| Camshaft sensor | ||
| variable valve timing | ||
| 3 | Ignition coils | 20 |
| 4 | 20 | |
| 5 | crankshaft position sensor | 30 |
| Hot Film Air Mass Sensor | ||
| Camshaft position sensor | ||
| MAP-controlled engine cooling thermostat | ||
| 6 | Injectors (cylinders 1 – 6) | 20 |
| 7 | transmission control unit | 20 |
| 8 | Engine control unit (DME) | 30 |
| Catalytic Converter Oxygen Sensors | ||
| 9 | Spare | 10 |
| 10 | Variable valve timing | 40 |
| 11 | Timing mechanism drive unit | 40 |

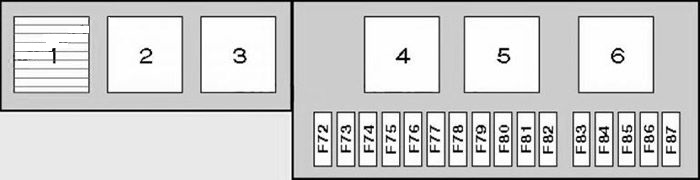

Luggage Compartment Fuse Box
| № | A | Component |
|---|---|---|
| 1 | Seat heater relay- rear | |
| 2 | Heated rear window relay | |
| 3 | Audio unit relay | |
| 4 | Boot lid/tailgate release relay- lower | |
| 5 | Seat adjustment relay, rear | |
| 6 | Boot lid/tailgate release relay- upper | |
| F72 | 30A | Audio system, navigation system |
| F73 | 7.5A | Ignition coil relay |
| F74 | 10A | Telephone |
| F75 | 5A | Audio system, navigation system |
| F76 | – | – |
| F77 | 30A | Electric seats-rear |
| F78 | 20A | Trailer socket |
| F79 | 7.5A | Suspension control module |
| F80 | 20A | Ignition coil relay |
| F81 | 20A | Rear screen wash/wipe system |
| F82 | – | – |
| F83 | 20A | Charging socket-rear |
| F84 | 7.5A | Boot lid/tailgate lock |
| F85 | 30A | Heated rear window |
| F86 | 5A | Auxiliary heater |
| F87 | 30A | Suspension compressor pumpl |
