BMW X5 G05 (2019 – 2024) Fuse Box Location & Diagrams
The BMW X5 G05 (2019–2024) fuse box locations and diagrams help identify every fuse and relay with ease. This guide makes it simple to find the correct fuse, understand its function, and safely troubleshoot or replace blown fuses for reliable vehicle maintenance and repairs.
Fuse Box Location

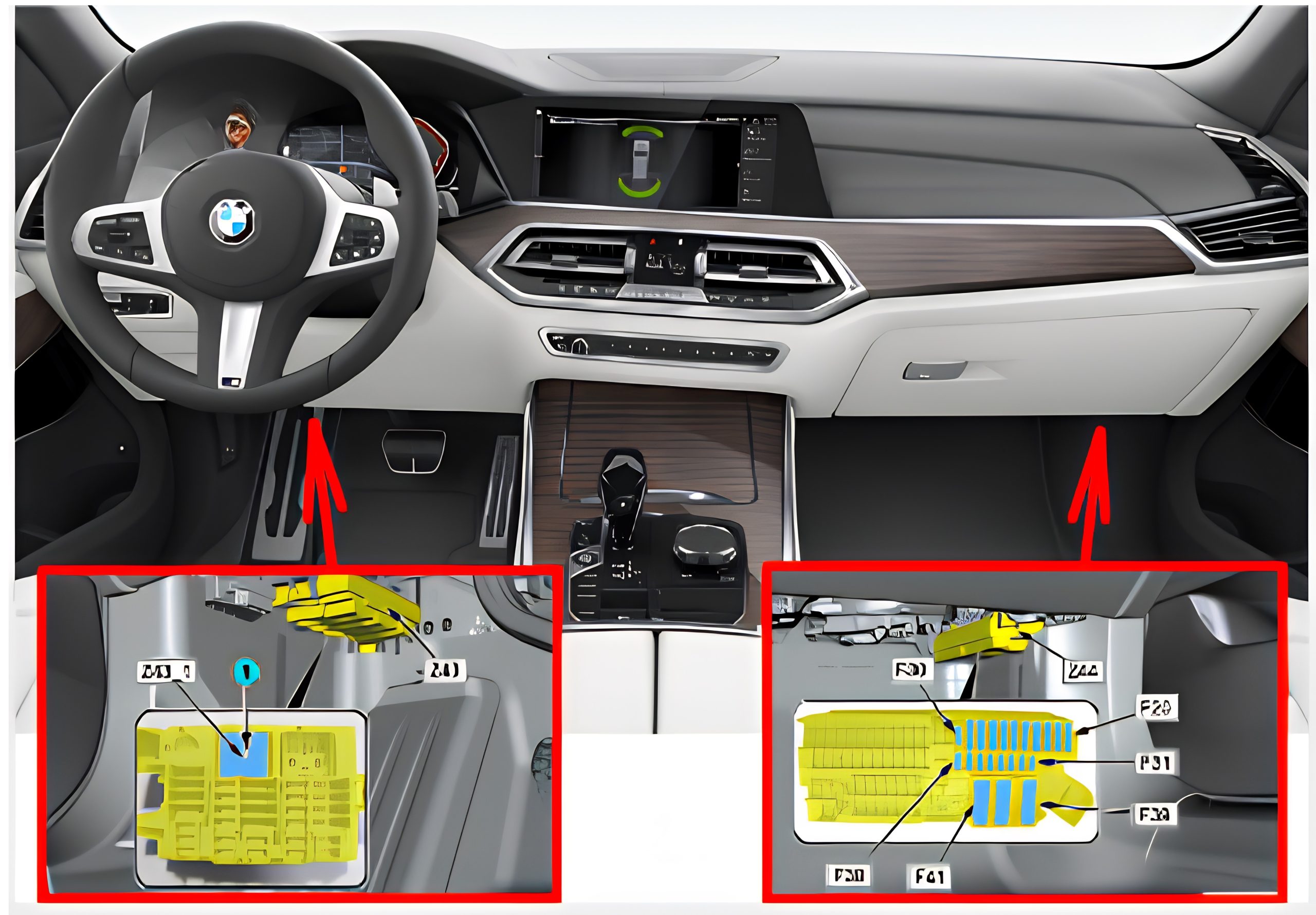

Passenger Compartment Fuse Boxes
The fuse boxes are located on the right and left under the dashboard. The Body Domain Controller is on the right side, below the fuse box.

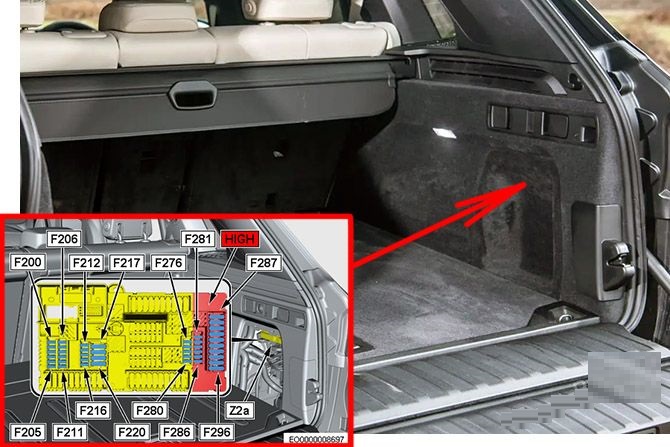

Luggage Compartment Fuse Box
The power distribution box is located behind the trim on the right side of the luggage compartment.
Fuse Box Diagrams
Passenger Compartment Fuse Boxes

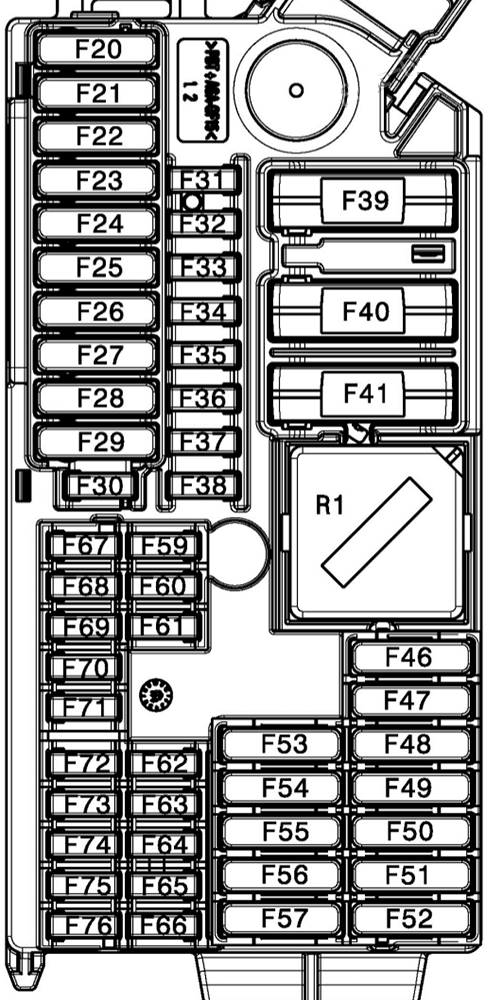

Front Right Side Fuse Box
| № | Amps | Protected Component |
|---|---|---|
| 20 | 30A | Driver’s Door Power Window Drive with Control Electronics 2023-2024: Electric windows |
| 21 | 30A | Front Passenger Door Power Window Drive with Control Electronics 2023-2024: Electric windows |
| 22 | 30A | Driver’s Side Rear Power Window Drive with Control Electronics 2023-2024: Electric windows |
| 23 | 30A | Passenger’s Side Rear Power Window Drive with Control Electronics 2023-2024: Electric windows |
| 24 | 30A | Left Reversible Electromotive Automatic Reel (Seat Belt) |
| 25 | 20A | Roof Function Centre 2023-2024: Replacement top module; Alternating relay |
| 26 | 20A | Body Domain Controller |
| 27 | – 7.5A | – 2023-2024: Instrument cluster |
| 28 | 40A | Dynamic Stability Control (DSC) |
| 29 | 15A 20A | Body Domain Controller 2023-2024: Tailgate |
| 30 | – | – |
| 31 | – 20A | – 2023-2024: Car Alarm |
| 32 | 5A | Centre Console Control Panel 2023-2024: Parking brake |
| 33 | 5A | Driver Electronic Outer Door Handle Module |
| 34 | 5A | Instrument Cluster Control Unit |
| 35 | 5A | Auxiliary Control Unit |
| 36 | 5A | Roof Function Centre (Map Reading Light, Interior Light, Ambient Light) 2023-2024: Car alarm, Replacement top module; Alternating relay, Interior lights |
| 37 | 10A | Output Stage for Rear Compartment Fan Motor (4-zone Air Conditioning) 2023-2024: Air conditioning system, Electric fan |
| 38 | – | – |
| 39 | 60A | Body Domain Controller 2023-2024: Main headlights / Rain sensor / Light sensor / Electronic ride height control |
| 40 | 40A | Blower Motor with Output Stage 2023-2024: Air conditioning system, Electric fan |
| 41 | – 50A | – 2023-2024: Air conditioning system, Electric fan |
| 46 | 20A | Rear Cigarette Lighter, Front Cigarette Lighter (without Thermoelectric Cup Holder), Thermoelectric Cup Holder 2023-2024: Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 47 | 30A | Wiper Module |
| 48 | – 20A | – 2023-2024: Heated seats |
| 49 | 20A 15A | Electric Steering Column Adjustment 2023-2024: Steering column function control module |
| 50 | 15A | Thermoelectric Cup Holder 2023-2024: Air conditioning system |
| 51 | 30A 20A | B46, B48, B58, N63: Electronic Transmission Control, Transfer Box 2023-2024: Dynamic drive system, Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |
| 52 | 20A | Front Passenger Seat Heating Electronics |
| 53 | 30A | Driver’s Seat Module (with Seat Module), Driver’s Side Seat Adjustment Switch Block (without Seat Module) |
| 54 | 20A | Independent Auxiliary Heater (SHZH) 2023-2024: Heating / Independent aux. heater |
| 55 | 30A | Front Passenger Seat Module (with Seat Module), Front Passenger Side Seat Adjustment Switch Block (without Seat Module) 2023-2024: Seat adjustment |
| 56 | 10A | Front Passenger’s Side Control Electronics for Armrest Heating 2023-2024: Heated seats |
| 57 | 10A | Driver’s Side Control Electronics for Armrest Heating 2023-2024: Heated seats |
| 59 | 5A 7.5A | USB Connection №2, Electrochromic Interior Rear View Mirror 2023-2024: Home link (garage door opener), USB, Main headlights / Rain sensor / Light sensor / Electronic ride height control, Electrochromic rear view mirror |
| 60 | 5A | Centre Rear Door Trim Panel Lighting (Driver’s Side), Rear Door Pocket Lighting (Driver’s Side), Rear Inner Door Handle Lighting (Driver’s Side), Rear Driver’s Side Door Trim Panel Lighting (Top), Rear Left Speaker Lighting, Auxiliary Water Pump (Diesel) 2023-2024: Interior lights |
| 61 | 5A | Glove Compartment Light Switch, Driver Camera System, 48 Volt Power Control Unit (PCU48), 48 Volt Battery 2023-2024: 48V, Start-Stop system |
| 62 | – 10A | – 2023-2024: Head-Up Display (HUD) |
| 63 | 5A | Auxiliary Battery, Instrument Panel Speaker Lighting, Air Freshener, CD Drive, Ioniser, Starter Motor Generator 48 Volt (B57, B58) 2023-2024: Air conditioning system, Car alarm, Driving assistance, Interior lights |
| 64 | 10A | Driver’s Seat Backrest width Adjustment Valve Block, Driver Lumbar Support Valve Block, Seat Adjustment Switch Block (Driver’s Side), Rear Footwell Light (Driver’s Side), Driver’s Seat Backrest Rear Panel Lighting, USB Charging Socket, Front Left Seat Inflator Module 2023-2024: Seat adjustment, Interior lights |
| 65 | 10A | Front Passenger Backrest width Adjustment Valve Block, Front Passenger Lumbar Support Valve Block, Seat Adjustment Switch Block (Front Passenger Side), Rear Footwell Light (Front Passenger Side), Front Passenger Seat Backrest Rear Panel Lighting, USB Charging Socket №2, Front Right Seat Inflator Module 2023-2024: Seat adjustment, Interior lights |
| 66 | 5A | Top Centre Dashboard Lighting, Top Front Passenger’s Side Instrument Panel Lighting, Bottom Centre Instrument Panel Lighting, Bottom Driver’s/Passenger’s Side Instrument Panel Lighting, Front Left/Right Footwell Light 2023-2024: Interior lights |
| 67 | 5A | Driver’s Door Switch Block, Seat Switch Cluster on Driver’s Door, Driver’s Door Inner Door Handle Lighting, Driver’s Door Trim Panel Lighting (Centre), Driver’s Door Pocket Lighting, Driver’s Door Trim Panel Lighting (Top), Front Left Mid-Range Speaker Lighting, Front Left Tweeter Lighting 2023-2024: Seat adjustment, Interior lights, Electric mirrors |
| 68 | 5A | Front Passenger Exterior Mirror, Passenger’s Door Switch Block, Passenger’s Door Inner Door Handle Lighting, Front Passenger Door Trim Panel Lighting (Centre), Passenger’s Door Pocket Lighting, Front Passenger Door Trim Panel Lighting (Top), Front Right Mid-Range Speaker Lighting, Front Right Tweeter Lighting 2023-2024: Seat adjustment, Interior lights, Electric mirrors |
| 69 | 5A | Radiator Blind Drive (Top, Bottom) 2023-2024: Electric fan |
| 70 | 5A | Rear Power Distribution Box, Electric Fan Cut-Out Relay, Electric Fan 2023-2024: Electric fan, Fuel injection & similar electronics |
| 71 | 5A 7.5A | All-Round Vision Camera (with Omnidirectional Camera), Reversing Camera 2023-2024: 48V, Parking sensors / Home link (garage door opener), Start-Stop system |
| 72 | – 7.5A | – 2023-2024: USB |
| 73 | 5A 10A | Instrument Cluster Control Unit 2023-2024: Head-Up Display (HUD) |
| 74 | 10A | Steering Column Switch Cluster 2023-2024: Steering column function control module |
| 75 | 10A | Crash Safety Module 2023-2024: Seatbelts |
| 76 | – 15A | – 2023-2024: Air conditioning system |

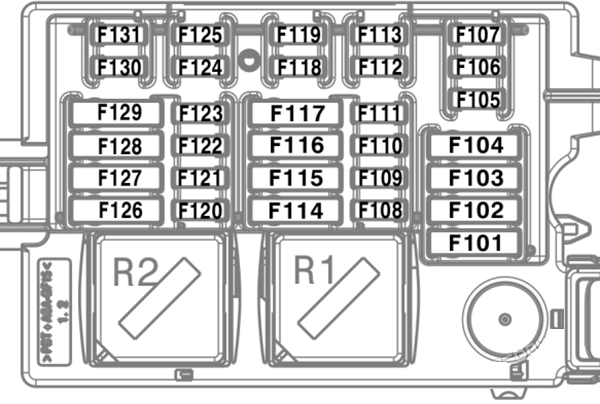

Front Left Side Fuse Box
| № | Amps | Protected Component |
|---|---|---|
| 101 | – | – |
| 102 | – | – |
| 103 | – | – |
| 104 | – | – |
| 105 | 7.5A | Electric Machine Electronics 2023-2024: Hybrid system, Battery system |
| 106 | – 5A | – 2023-2024: Hybrid system, Battery system |
| 107 | 10A | Hybrid: Pressurised Fuel Tank Control Module |
| 108 | – | – |
| 109 | – | – |
| 110 | 5A | Electric Auxiliary Heater, Lighting of Front Mid-Range Speaker 2023-2024: Heating / Independent aux. heater, Hybrid system |
| 111 | 5A | Rear Power Distribution Box |
| 112 | – | – |
| 113 | – 7.5A | – 2023-2024: Hybrid system |
| 114 | – | – |
| 115 | – | – |
| 116 | – | – |
| 117 | 30A | Hybrid: Automatic Transmission, Transfer Box 2023-2024: Hybrid system, Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |
| 118 | – | – 2023-2024: Hybrid system |
| 119 | – 7.5A | – 2023-2024: Hybrid system, Fuel injection & similar electronics |
| 120 | – | – |
| 121 | – | – |
| 122 | – | – |
| 123 | – | – |
| 124 | – | – |
| 125 | – | – |
| 126 | – | – |
| 127 | – | – |
| 128 | – | – |
| 129 | – | – |
| 130 | – | – |
| 131 | – | – |

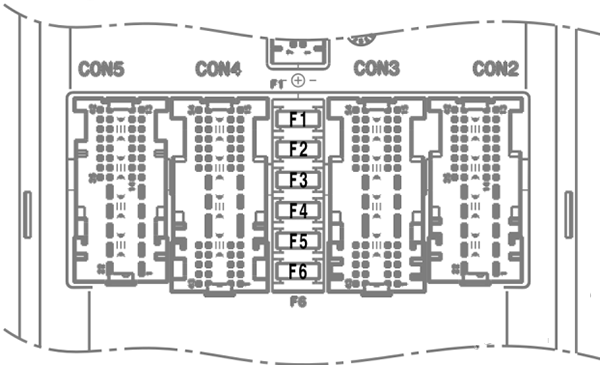

Body Domain Controller
| № | Amps | Protected Component |
|---|---|---|
| 1 | 5A | Steering Column Switch Cluster, Front Centre Ventilation Grille, Audio Control Panel, Light Operating Unit, Headunit 2023-2024: Steering column function control module, Main headlights / Rain sensor / Light sensor / Electronic ride height control |
| 2 | 7.5A | Diagnosis Socket, Electronic Ride-Height Control, Vertical Dynamics Platform 2023-2024: On-board system (OBD), Air suspension compressor relay, Dynamic drive system, Load level |
| 3 | 7.5A | Heating/Air Conditioning System, Tailgate Function Module, Rain/Light/Solar/Condensation Sensor 2023-2024: Air conditioning system, Electric rear sunshade, Tailgate |
| 4 | 5A | Passenger Electronic Outer Door Handle Module, Rear Driver’s Side Outer Door Handle Electronic Module, Rear Passenger’s Side Outer Door Handle Electronic Module, Power Control Unit, Telematic Communication Box 2023-2024: Dynamic drive system, Door module / Automatic soft-close |
| 5 | 20A | Locking Relay, Unlocking Relay (Doors, Fuel Filler Flap) 2023-2024: Door module / Automatic soft-close |
| 6 | 20A | Driver’s Door Locking Relay, Deadlocking Relay (Driver’s Door Lock, Front Passenger Door Lock, Rear Driver’s Side Doorl Lock, Rear Passenger’s Side Door Lock, Fuel Filler Flap Central Locking Locking Drive) 2023-2024: Door module / Automatic soft-close |

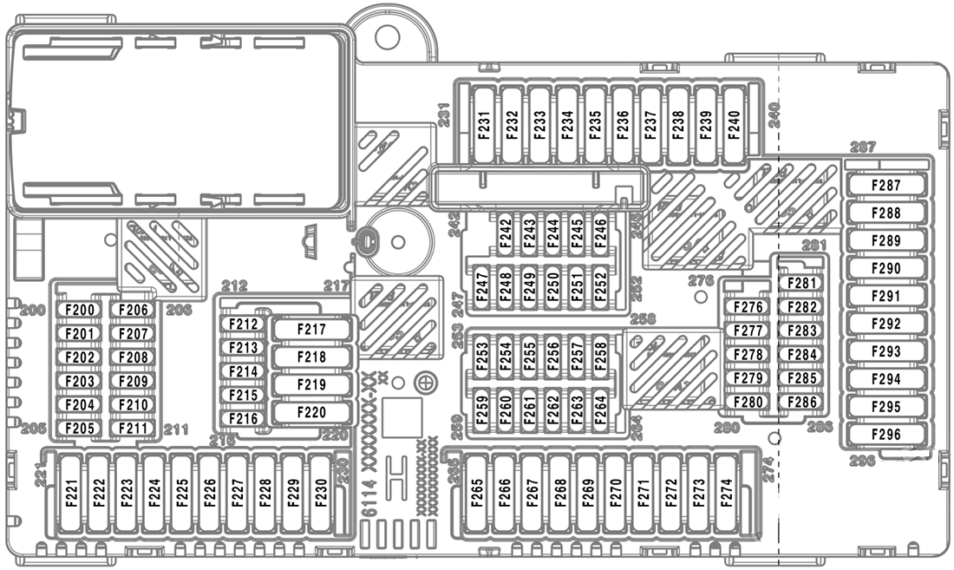

Luggage Compartment Fuse Box
| № | Amps | Protected Component |
|---|---|---|
| 200 | – | – |
| 201 | – | – |
| 202 | – | – |
| 203 | 7.5A | Electrical Exhaust Flap (B46, B46, B58, N63, S63), Electrical Exhaust Flap №2 (N63, S63) 2023-2024: Fuel injection & similar electronics |
| 204 | 5A | Rear Axle King Pin Inclination Control, AUC Sensor, Regulated Rear Axle Differential Lock 2023-2024: Air conditioning system, Driving assistance |
| 205 | – | – |
| 206 | – | – |
| 207 | 5A | Front Left/Right Side Radar Sensor Near Range, Rear Left/Right Radar Sensor Near, Optional Extra System 2023-2024: Car alarm, Driving assistance |
| 208 | 5A | Electromechanical Power Steering 2023-2024: Steering column function control module |
| 209 | 5A | Long-Distance Range Front Radar Sensor (Active Cruise Control (High Version)), Front Radar Sensor (Basic Cruise Control (High Version)), Front Electric Active Roll Stabilisation, Rear Electric Active Roll Stabilisation 2023-2024: ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Dynamic drive system |
| 210 | 5A | Electric Fuel Pump Control Electronics |
| 211 | 5A | Electronic Night Vision Module (BMW Night Vision) 2023-2024: Driving assistance |
| 212 | 15A | Headunit 2023-2024: Sound system |
| 213 | 15A | Trailer Socket 2023-2024: Trailer module, Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 214 | 5A | Booster 2023-2024: Sound system |
| 215 | 10A 5A | Rear Seat Entertainment 2023-2024: Car alarm, Driving assistance |
| 216 | 5A 7.5A | Wireless Charging Oddments Tray Aerial Amplifier 2023-2024: USB |
| 217 | 40A | Booster |
| 218 | 20A | 12V Connection №2 (Luggage Compartment) |
| 219 | – | – |
| 220 | 30A | Receiver Audio Module 2023-2024: Sound system |
| 221 | – | – |
| 222 | – | – |
| 223 | – | – |
| 224 | 20A | Vertical Dynamics Platform (Executive Drive Pro) 2023-2024: Air suspension compressor relay, Dynamic drive system, Load level |
| 225 | – | – |
| 226 | 40A | Tailgate Function Module |
| 227 | 30A | Selective Catalytic Reduction (SCR) Control Unit 2023-2024: Fuel injection & similar electronics |
| 228 | – 30A | – 2023-2024: Fuel pump |
| 229 | – | – |
| 230 | 30A | Right Reversible Electromotive Automatic Reel (Seat Belt) |
| 231 | 30A | Rear Window Defogger 2023-2024: Rear window defroster (defogger) |
| 232 | – 40A | – 2023-2024: Rear window defroster (defogger) |
| 233 | – 20A | – 2023-2024: Air conditioning system, Electric fan |
| 234 | – | – |
| 235 | – | – |
| 236 | – | – |
| 237 | – | – |
| 238 | – | – |
| 239 | – | – |
| 240 | 20A | Trailer Module |
| 242 | – 5A | – 2023-2024: Door module / Automatic soft-close |
| 243 | – | – |
| 244 | 5A | Remote Control Receiver, Natural Vacuum Leak Detection, Siren with Tilt Alarm Sensor, High-Voltage Battery Unit (Hybrid), Safety Battery Terminal Gas Generator (with Dual Storage System, with 48V System) 2023-2024: Door module / Automatic soft-close |
| 245 | – | – |
| 246 | – | – |
| 247 | 15A | Anti-Slip Rails Control Electronics 2023-2024: Air conditioning system |
| 248 | 15A | Retractable Roller Cover for Luggage Compartment Control Electronics 2023-2024: Electric rear sunshade |
| 249 | 10A | Passenger’s Door Automatic Soft-Close Drive 2023-2024: Door module / Automatic soft-close |
| 250 | 5A | Interior Lights, Vanity Mirror Lights, Glass Sunroof Lighting 2023-2024: Interior lights |
| 251 | 10A | Driver’s Door Automatic Soft-Close Drive 2023-2024: Door module / Automatic soft-close |
| 252 | 5A | Auxiliary Battery 2023-2024: Hybrid system |
| 253 | 7.5A
10A | Parking Assistant, Automatic Rear Air Conditioning Operating Facility, Camera-Based Drive Assistance System, Rear Right Seat Heating Switch, Rear Left Seat Heating Switch 2023-2024: Air conditioning system, Heated seats, Parking sensors / Home link (garage door opener) |
| 254 | 5A | Luggage Compartment Lights, Tailgate Button for Lower Tailgate, Rear Lid Button on Inside of Rear Lid 2023-2024: Tailgate, Interior lights |
| 255 | 5A 7.5A | Switch Block of Luggage Compartment 2023-2024: Air conditioning system, Seat adjustment, Interior lights |
| 256 | 10A 5A | Rear Passenger’s Side Automatic Soft Close Drive 2023-2024: Electric rear sunshade, Door module / Automatic soft-close |
| 257 | 5A | Rear Right Speaker Lighting, Rear Passenger’s Side Door Pocket Lighting, Rear Passenger’s Side Inner Door Handle Lighting, Centre Rear Passenger’s Side Door Trim Panel Lighting, Top Rear Passenger Door Trim Panel Lighting, Left/Right Reversible Electromotive Automatic Reel 2023-2024: Seatbelts, Electric windows, Interior lights |
| 258 | 10A | Rear Driver’s Side Automatic Soft-Close Drive 2023-2024: Electric rear sunshade, Door module / Automatic soft-close |
| 259 | 15A | Selective Catalytic Reduction (SCR) Control Unit 2023-2024: Fuel injection & similar electronics |
| 260 | 10A | Soft-Close Automatic for Left Lower Tailgate 2023-2024: Driving assistance |
| 261 | – 7.5A | – 2023-2024: USB |
| 262 | 5A | Controller, Self-Leveling Suspension Button, Wireless Charging Oddments Tray, Lighting for Centre Console, Front Centre Armrest Light 2023-2024: Air suspension compressor relay, Head-Up Display (HUD), Interior lights |
| 263 | 10A 7.5A | Soft-Close Automatic for Right Lower Tailgate 2023-2024: USB |
| 264 | 10A 5A | Boot Lid/Tailgate Lock 2023-2024: Interior lights |
| 265 | 30A | Regulated Rear Axle Differential Lock 2023-2024: Indicator Cutie Viteze Automata, Sistem EDC, Sistemul de tractiune integrala / Gear indicator, EDC, Gear Automatic Transmission Control, AWD |
| 266 | 20A | Trailer Module 2023-2024: Trailer module, Front & rear cigarette lighter, 12V socket / Glove box charging socket (12V) |
| 267 | 30A | Trailer Module 2023-2024: ABS (Anti-lock Brake System), DSC (Dynamic Stability Control), Trailer module, Main headlights / Rain sensor / Light sensor / Electronic ride height control |
| 268 | – | – |
| 269 | 30A | Rear Driver’s Side Seat Module 2023-2024: Seat adjustment |
| 270 | 30A | Electric Fuel Pump Control Electronics |
| 271 | 30A | Rear Passenger’s Side Seat Heating Module, Rear Driver’s Side Seat Heating Module 2023-2024: Heated seats, Seat adjustment |
| 272 | – | – |
| 273 | – | – |
| 274 | – 30A | – Heated seats |
| 276 | – | – |
| 277 | – | – |
| 278 | 5A | Hybrid: Charging Controller for Auxiliary Battery |
| 279 | 5A | Contactfree Tailgate Opening Evaluation Electronics 2023-2024: Dynamic drive system, Tailgate |
| 280 | 5A 7.5A | Convenience Charging Electronics 2023-2024: Hybrid system |
| 281 | – | – |
| 282 | – | – |
| 283 | – | – |
| 284 | – | – |
| 285 | – | – |
| 286 | – | – |
| 287 | – | – |
| 288 | – | – |
| 289 | 20A | Trailer Module |
| 290 | – | – |
| 291 | – | – |
| 292 | – | – |
| 293 | – | – |
| 294 | – | – |
| 295 | – | – |
| 296 | – | – |
