Fiat Scudo (2007 – 2016) Fuse Box Location & Diagrams
Looking for the fuse box in your Fiat Scudo (2007–2016)? This guide shows the exact locations of all fuse boxes and provides detailed fuse box diagrams to help you identify each fuse and relay. Whether you’re troubleshooting an electrical issue or replacing a blown fuse, you’ll find everything you need for your Fiat Scudo.
Fuse Box Location

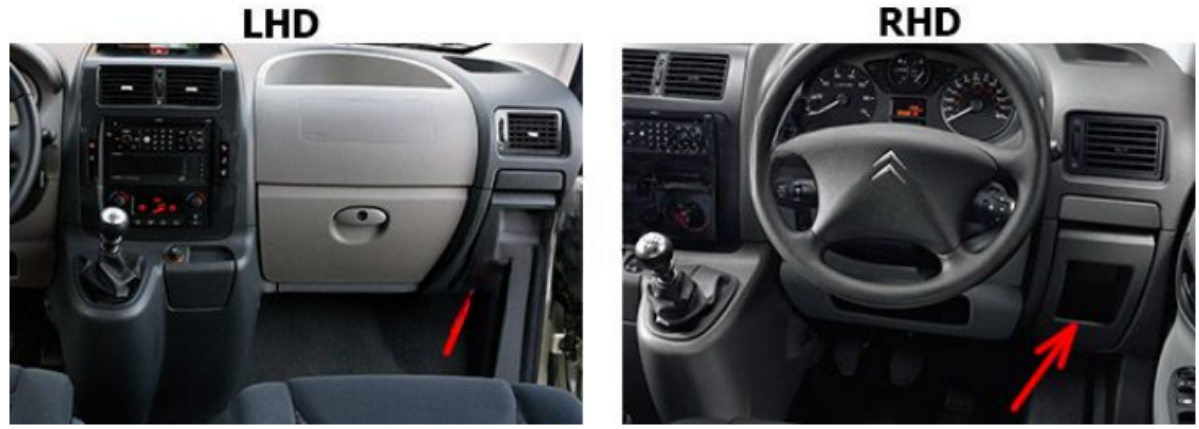

Passenger Compartment Fuse Box
It is located in the fascia panel on the right-hand side (behind the storage compartment, retractable).Tilt the object holding compartment and forcibly pull it out so as to access the fuses.

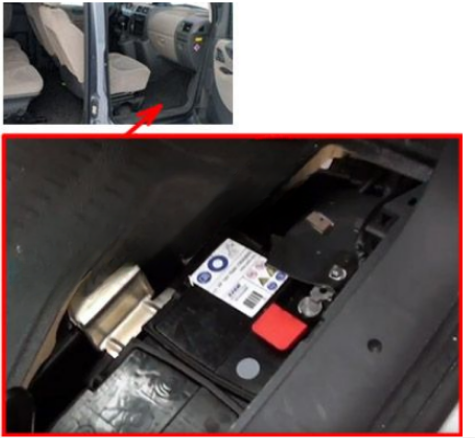

(on battery)
Unhook the cover of the battery compartment, remove the terminal of the red battery (+)

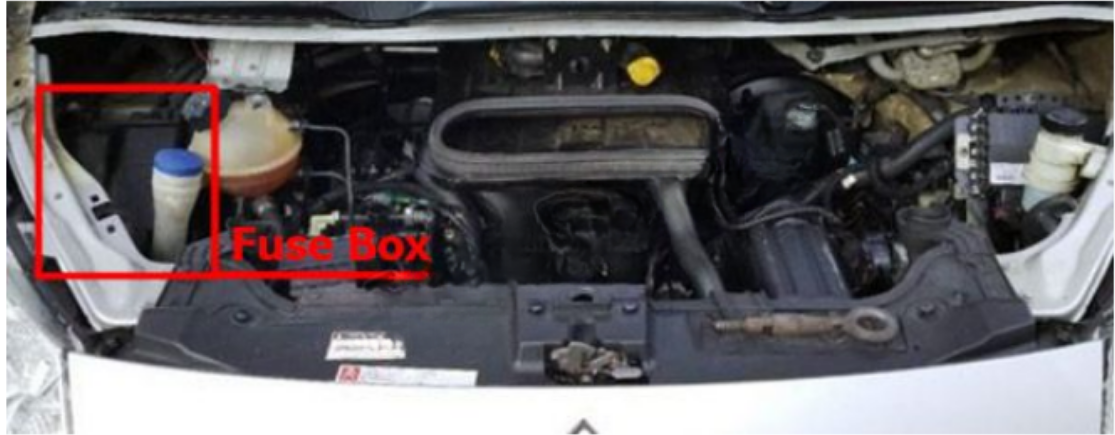

Engine Compartment Fuse Box
Unhook and turn the fusebox upside down to access.
Fuse Box Diagrams

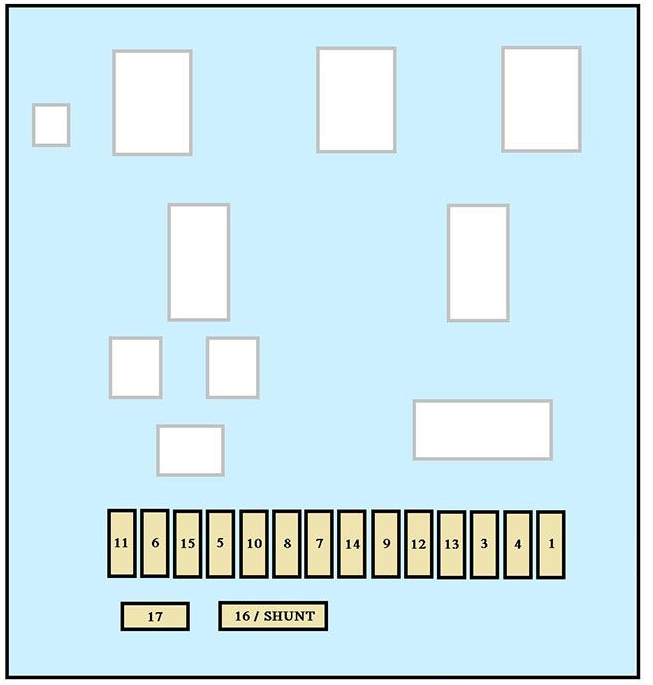

Passenger Compartment Fuse Box
Dashboard Fuse box
| № | Ampere rating [A] | Users |
|---|---|---|
| F1 | 15 | Rear window wiper |
| F2 | — | Free |
| F3 | 5 | Airbag control unit |
| F4 | 10 | Headlight aiming device, diagnostic socket ESP control unit ventilation, particulate filter pump, steering sensor |
| F5 | 30 | Power rearview mirror, passenger power window |
| F6 | 30 | Front window power |
| F7 | 5 | Ceiling lights, glovebox light |
| F8 | 20 | Multi-function Display, anti-theft alarm siren, sound system, CD-Changer, Radiotelephone, trailer services control unit, Panel workers protection control unit |
| F9 | 10 | Cigar lighter, load compartment outlet |
| F10 | 30 | Rear trimming strip, starting device, instrument panel |
| F11 | 15 | Diagnostic socket, anti-theft system control unit |
| F12 | 15 | Kit main libre, airbag control unit |
| F13 | 5 | Engine utilities control unit, trailer utilities control unit |
| F14 | 15 | Rain sensor, automatic acclimatiser instrument panel, ventilation rear part of passenger compartment (combined fittings) |
| F15 | 30 | Door locking/unlocking |
| F16 | — | Free |
| F17 | 40 | Rear heated window and door mirrors defroster |

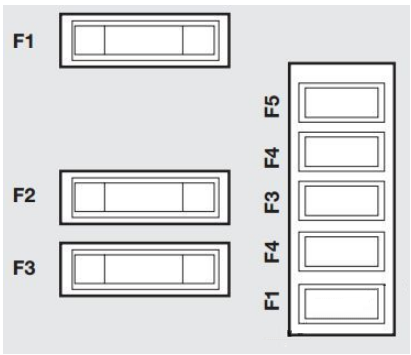

Fuses on the battery
| № | Ampere rating [A] | Users |
|---|---|---|
| F1 | 30 | Seat warming system |
| F2 | — | 12V socket -third row seats (combined fittings) |
| F3 | 40/50 | Trailer services control unit and (where provided) Panel workers protection control unit |
| F4 | — | Free |
| F36 | 15 | Swing-door locks |
| F37 | 10 | Swing-door locks |
| F3S | 20 | Rear window wiper on swing-door |
| F39 | — | Ventilation rear part of passenger compartment (combined fittings) |
| F40 | 5 | Folding mirrors |

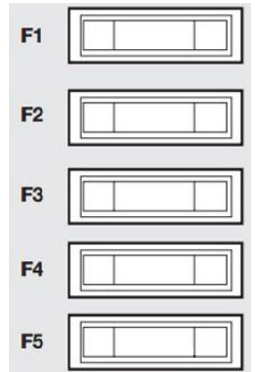

Additional fusebox
| № | Ampere rating [A] | Users |
|---|---|---|
| F1 | 15 | Free |
| F2 | 15 | Optional generator and contact relay |
| F3 | 15 | Trailer power |
| F4 | 15 | Permanent power for converters |
| F5 | 40 | Hazard lights |

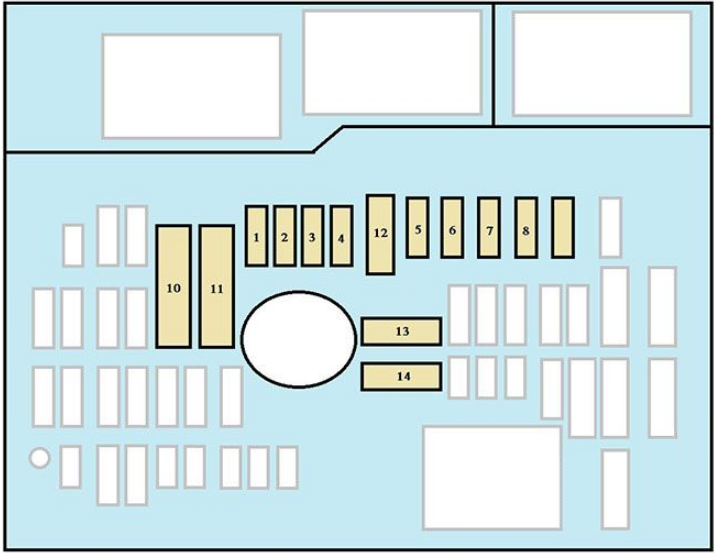

Engine Compartment Fuse Box
| № | Ampere rating [A] | Users |
|---|---|---|
| F1 | 20 | Engine control unit, fuel and air supply device, fan unit |
| F2 | 15 | Horn |
| F3 | 10 | Windscreen and rear window washing pump |
| F4 | 20 | Headlight washing pump |
| F5 | 15 | Fuel supply device |
| F6 | 10 | Secondary brake pedal contact, power steering |
| F7 | 10 | ABS/ESP |
| F8 | 20 | Ignition switch |
| F9 | 10 | Main brake pedal contact |
| F10 | 30 | Fuel and air supply device |
| F11 | 40 | Front ventilation |
| F12 | 30 | Windscreen wiper |
| F13 | 40 | Utilities control unit |
| F14 | 30 | Free |
