Fiat Tipo (1990 – 1995) Fuse Box Location & Diagrams
The Fiat Tipo (1990–1995) fuse box blog helps you quickly locate interior and engine compartment fuse boxes, identify fuse assignments, and understand circuit protection. Clear diagrams and fuse information make it easier to diagnose electrical issues, replace blown fuses, and keep your Fiat Tipo operating reliably.
Fuse Box Location

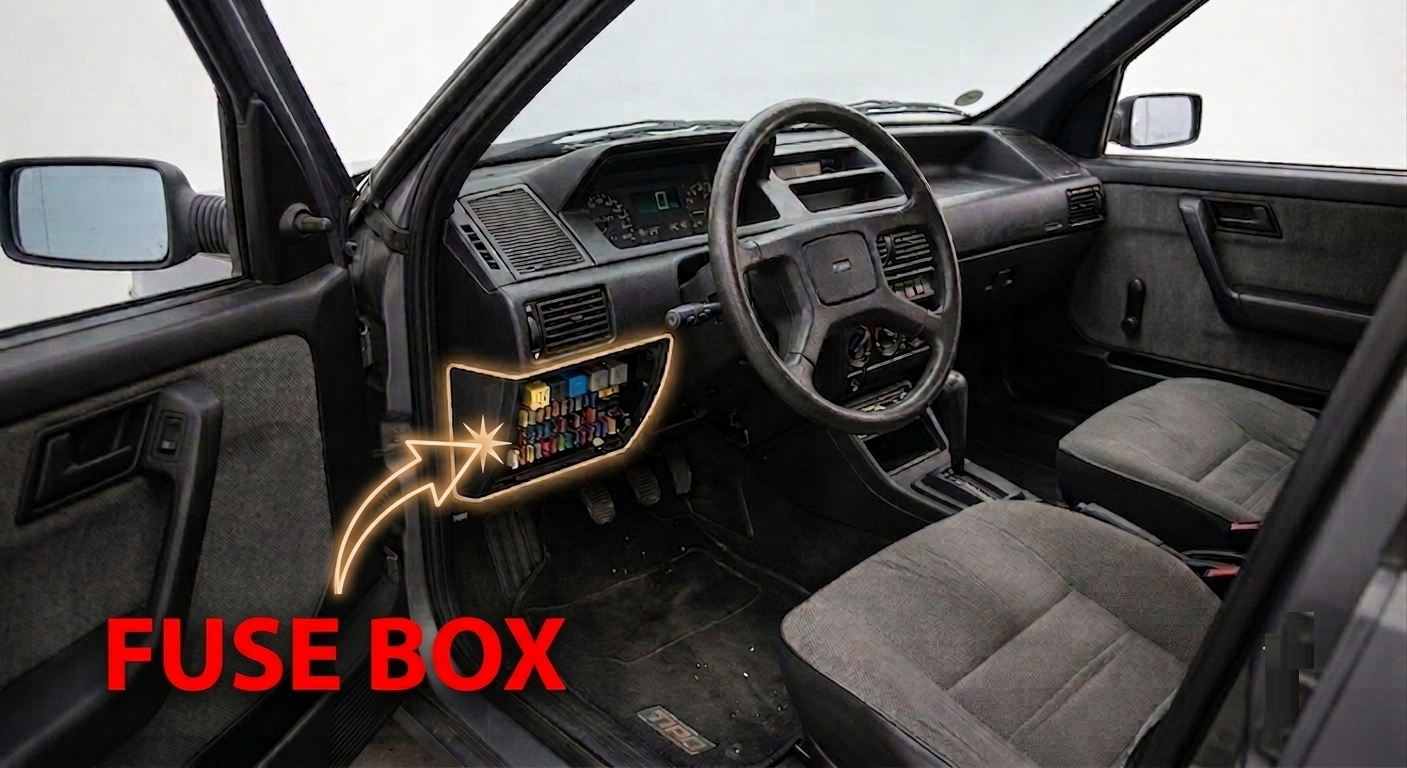

Passenger Compartment Fuse Box
The main fuse box and relay panel are located under the dashboard on the driver’s side.
Fuse Box Diagrams

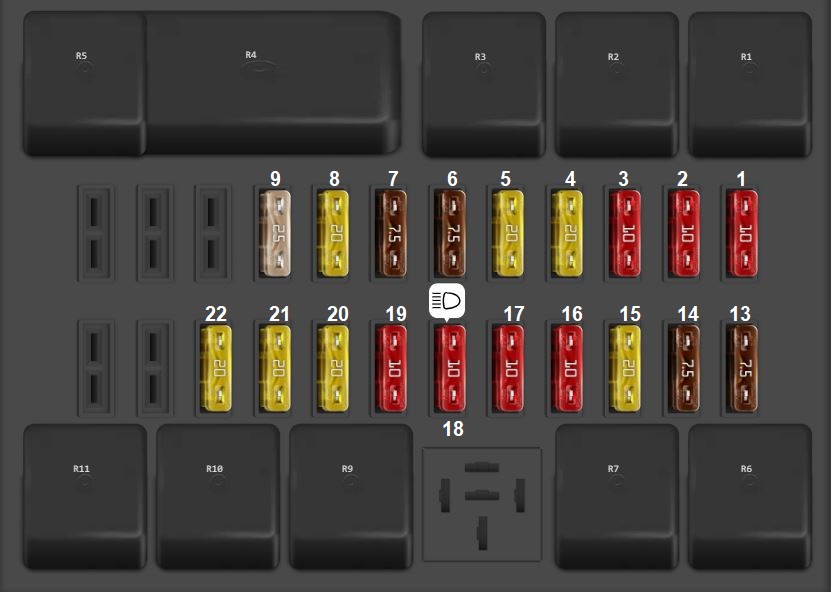

Passenger Compartment Fuse Box
| Type | No. | Description |
| Fuse ATO 10A | 1 | Instrument panel power supply / Windshield washer pump / Rear window washer / Reverse lights / Steering column lever illumination |
| Fuse ATO 10A | 2 | Instrument panel illumination / Left rear position light / Right license plate light / Right front position light |
| Fuse ATO 10A | 3 | Control illumination / Right rear position light / Left license plate light / Left front position light |
| Fuse ATO 20A | 4 | Horn / Cigarette lighter / Stop signal light |
| Fuse ATO 20A | 5 | Optional electric door lock |
| Fuse ATO 7.5A | 6 | Interior lighting lamp / Clock power supply (With key in stop position) |
| Fuse ATO 7.5A | 7 | Heated rear window and related indicator |
| Fuse ATO 20A | 8 | Emergency lights (Hazard lights) |
| Fuse ATO 25A | 9 | Engine cooling fan |
| Fuse ATO | 10 | Not used |
| Fuse ATO | 11 | Not used |
| Fuse ATO | 12 | Not used |
| Fuse ATO 7.5A | 13 | Turn signal lights / Optional right external rearview mirror with electric adjustment |
| Fuse ATO 7.5A | 14 | Rear fog light and related indicator |
| Fuse ATO 20A | 15 | Front fog light and related indicator |
| Fuse ATO 10A | 16 | Right low beam headlight |
| Fuse ATO 10A | 17 | Left low beam headlight |
| Fuse ATO 10A | 18 | Left high beam headlight and indicator / High beams |
| Fuse ATO 10A | 19 | Right high beam headlight |
| Fuse ATO 20A | 20 | Windshield wiper |
| Fuse ATO 20A | 21 | Rear window wiper |
| Fuse ATO 20A | 22 | Vehicle’s internal heater fan |
| Relay | R1 | Rear wiper relay |
| Relay | R2 | Low beam headlight relay |
| Relay | R3 | Horn relay |
| Relay | R4 | Electric lock relay |
| Relay | R5 | Rear window defogger relay |
| Relay | R6 | Emergency signal relay (Hazard lights) / Turn indicators |
| Relay | R7 | Rear fog light relay |
| Relay | R9 | Front wiper relay |
| Relay | R10 | High beam headlight relay |
| Relay | R11 | Internal fan relay |
| Relay | R12 | Main relay |
| Relay | R13 | Fuel pump relay |
