Mazda 626 (2000 – 2002) Fuse Box Location & Diagrams
The Mazda 626 (2000–2002) fuse box protects important electrical systems and components. This guide covers fuse box locations, fuse ratings, protected components, and clear diagrams for easy fuse identification.
Fuse Box Location

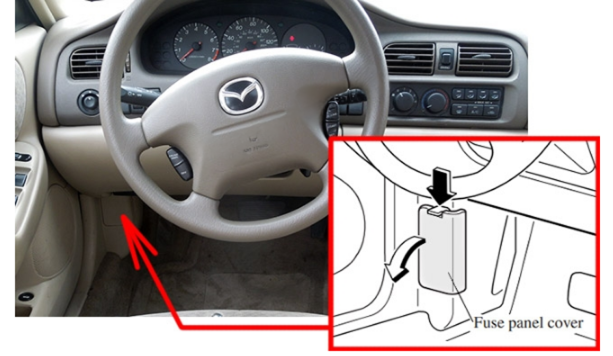

Passenger Compartment Fuse Box
The fuse box is located on the left side of the vehicle, behind the cover.

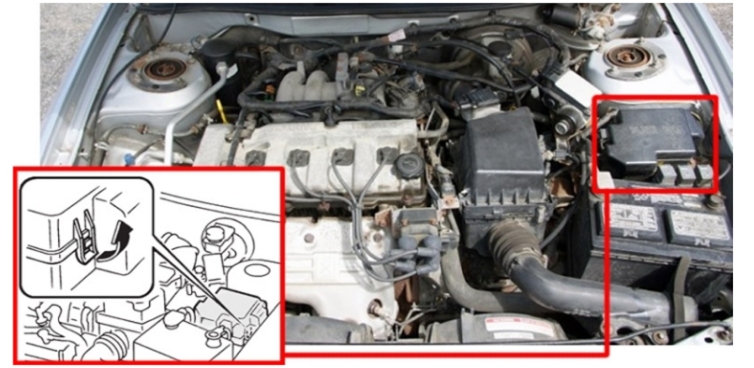

Engine Compartment Fuse Box
Fuse Box Diagrams

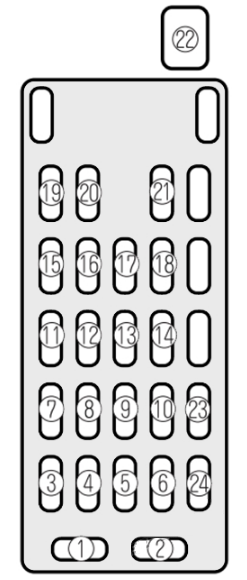

Passenger Compartment Fuse Box
| № | Name | Amp Rating | Description |
|---|---|---|---|
| 1 | AUDIO | 15A | Audio system |
| 2 | ROOM | 15A | Interior lights, Trunk light |
| 3 | S.ROOF | 15A | Sunroof |
| 4 | METER | 10A | Gauges, Reverse lights |
| 5 | D.LOCK | 30A | Power door lock |
| 6 | HAZARD | 15A | Hazard warning lights |
| 7 | A/B&ABS | 10A | Air bag system, Antilock brake system |
| 8 | — | — | Not Used |
| 9 | A/C | 10A | Air conditioner |
| 10 | — | — | Not Used |
| 11 | TURN | 10A | Turn signals |
| 12 | WIPER | 20A | Windshield wipers and washer |
| 13 | P.WIND | 30A | Power windows |
| 14 | — | — | Not Used |
| 15 | RADIO | 15A | Audio system, Socket, Outside mirror |
| 16 | ENGINE | 10A | Engine control system |
| 17 | ILLUMI | 10A | Taillights, License plate lights, Parking lights, Dashboard illumination |
| 18 | STOP | 15A | Brake lights, Horn, Cruise control |
| 19 | CIGAR | 15A | Accessory socket, Clock, Radio, Outside mirror |
| 20 | — | — | Not Used |
| 21 | — | — | Not Used |
| 22 | P.SEAT | 30A | Power seat |
| 23 | M.DEF | 15A | Mirror defroster |
| 24 | P.POINT | 15A | Power point |

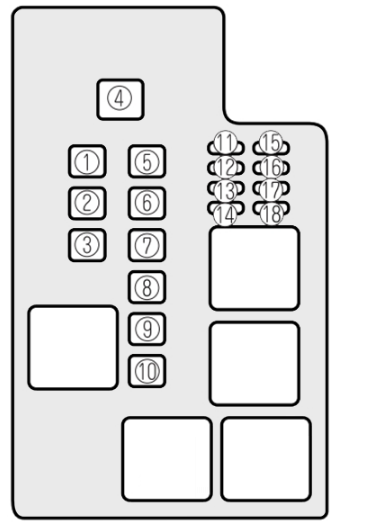

Engine Compartment Fuse Box
| № | Name | Amp Rating | Description |
|---|---|---|---|
| 1 | EGI INJ | 30A | Fuel injection system |
| 2 | DEFOG | 40A | Rear window defroster |
| 3 | — | — | Not Used |
| 4 | MAIN | 100 A | For protection of all circuits |
| 5 | IG KEY | 30A | RADIO, SUNROOF, TURN, METER, ENGINE, POWER WINDOW, WIPER fuses, Ignition system |
| 6 | HEATER | 40A | Heater, Air conditioner |
| 7 | BTN | 40A | TAIL, STOP, ROOM, DOOR LOCK, HAZARD, POWER SEAT fuses |
| 8 | COOLING FAN | 30A | Cooling fan |
| 9 | AD FAN | 30A | Additional fan |
| 10 | ABS | 60A | Antilock brake system |
| 11 | TAIL | 15A | Taillights, Parking lights, Dashboard illumination, License plate lights, Switches illumination |
| 12 | HORN | 15A | Horn |
| 13 | ABS | 20A | Antilock brake system |
| 14 | — | — | Not Used |
| 15 | ST. SIGN | 10A | 2000-2001: Starter signal 2002: Not Used |
| 16 | H/L-L | 15A | Headlight (Left) |
| 17 | H/L-R | 15A | Headlight (Right) |
| 18 | ABS | 20A | Antilock brake system |
