The Vauxhall Insignia A (2009–2016) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Insignia A.

Fuse Box Location

Passenger Compartment Fuse Box

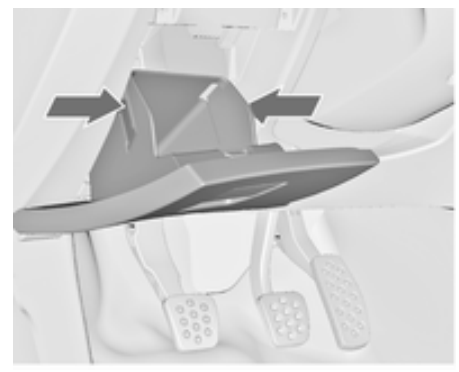

The fuse box is behind the storage compartment in the instrument panel. Open compartment, compress the locking tabs, fold compartment down and remove.

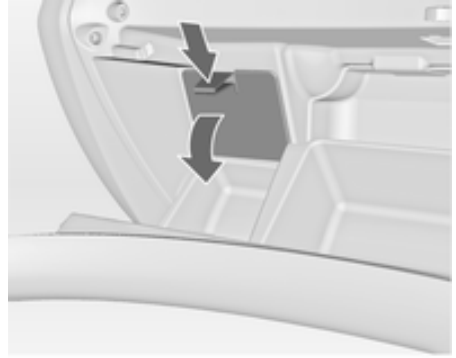

In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover.

Engine Compartment Fuse Box

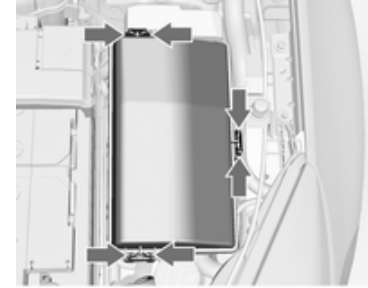

The fuse box is at the front left of the engine compartment. Disengage the cover, lift it upwards and remove.

Load Compartment Fuse Box

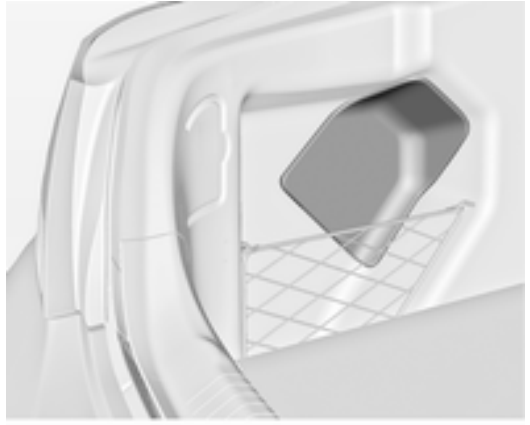

The fuse box is on the left side of the load compartment behind a cover. Remove the cover.

Fuse Box Diagrams

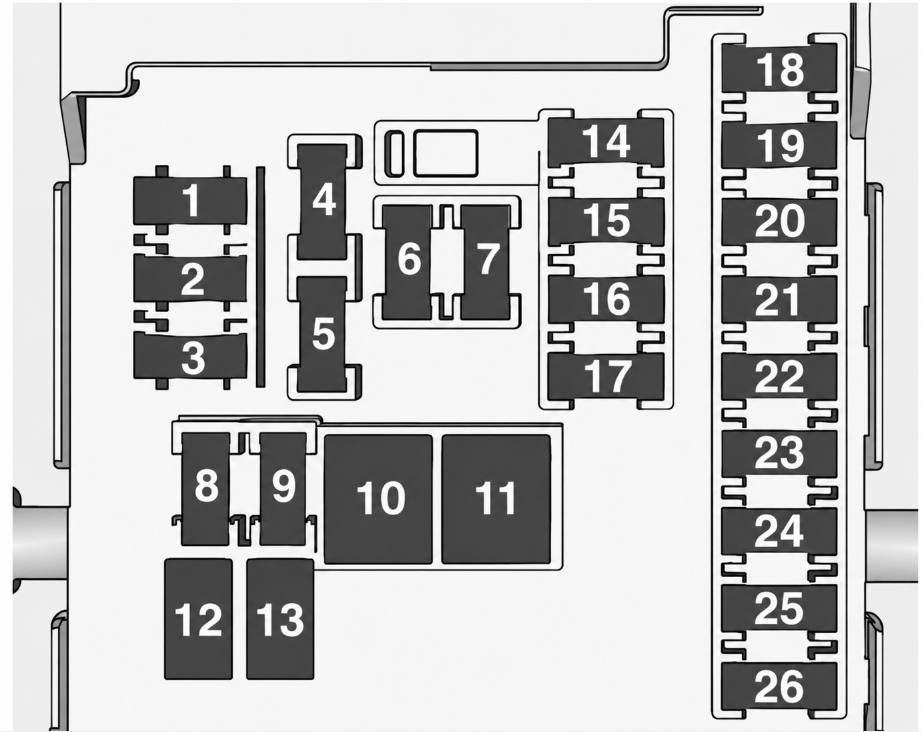

Passenger Compartment Fuse Box

Fuse No.	Circuit
1	2009–2015: Infotainment system / Info display. 2016: Infotainment system / Info display / Anti-theft alarm system
2	Body control unit — 2009–2016
3	Body control unit — 2009–2016
4	Infotainment system / Info display — 2009–2016
5	2009–2015: Infotainment system / Info display. 2016: Infotainment system / Info display / High beam assist
6	Cigarette lighter — 2009–2016
7	Power outlet — 2009–2016
8	Body control unit — 2009–2016
9	Body control unit — 2009–2016
10	Body control unit — 2009–2016
11	Interior fan — 2009–2016
12	2009–2011: Power seats. 2012–2016: –
13	2009–2011: Power seats. 2012–2016: –
14	Diagnostic connector — 2009–2016
15	Airbag — 2009–2016
16	Central locking system / Tailgate — 2009–2016
17	Air conditioning system — 2009–2016
18	Transportation fuse — 2009–2016
19	Memory — 2009–2016
20	2009–2011: Automatic occupant sensing system. 2012–2016: –
21	Instrument — 2009–2016
22	2009–2015: Ignition. 2016: Ignition / Central locking system / Electronic key system
23	Body control unit — 2009–2016
24	Body control unit — 2009–2016
25	2009–2011: Ignition switch. 2012–2015: –. 2016: Steering wheel control
26	Power outlet, load compartment — 2009–2016

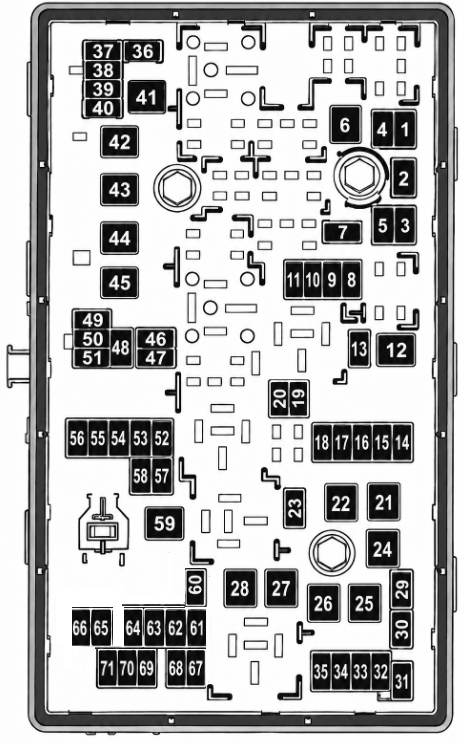

Engine Compartment Fuse Box

Fuse No.	Circuit
1	Transmission control module
2	Engine control module
3	–
4	–
5	Ignition, Transmission control module, Engine control module
6	Windscreen wiper
7	–
8	Fuel injection, ignition system
9	Fuel injection, ignition system
10	Engine control module
11	Lambda probe
12	Starter
13	Sensor throttle heating
14	Lighting
15	Rear window wiper
16	2009–2011: Vacuum pump, compass module; 2012–2016: Vacuum pump, mass air flow meter, water in fuel sensor, DC transformer
17	2009–2013: Ignition, airbag; 2014–2015: –; 2016–2016: Additional tail lights (type B)
18	Adaptive forward lighting
19	Adaptive forward lighting
20	2009–2011: Ignition; 2012–2016: Fuel pump
21	Rear power windows
22	ABS
23	Variable effort steering
24	Front power windows
25	2009–2015: Power outlets; 2016: Power outlets (type A), Additional tail lights (type B)
26	ABS
27	Electric/Electrical parking brake
28	Heated rear window
29	Left power seat
30	Right power seat
31	Air conditioning system
32	Body control module
33	Heated front seats
34	2009–2015: Sunroof; 2016: Sunroof (type A), Tailgate locking (type B)
35	2009–2015: Infotainment system; 2016: Infotainment system (type A), Tailgate locking (type B)
36	–
37	Right high beam
38	Left high beam
39	–
40	2009–2011: After-boil pump; 2012–2016: –
41	Vacuum pump
42	Radiator fan
43	2009–2011: –; 2012–2013: Battery, DC transformer (only on vehicles with stop-start system); 2014–2016: Vehicle battery, DC transformer (only on vehicles with stop-start system);
44	Headlamp washer system
45	Radiator fan
46	Terminal 87, main relay
47	Lambda probe
48	Fog lights
49	Right low beam
50	Left low beam
51	Horn
52	Ignition
53	Ignition, ventilated front seats
54	Ignition
55	Power windows, mirror folding
56	Windscreen washer
57	2009–2011: Ignition; 2012–2016: –
58	–
59	2009–2011: Diesel fuel heating; 2012–2016: Diesel fuel heating, emission control system
60	Mirror heating
61	Mirror heating
62	2009–2011: Canister vent solenoid; 2012–2015: –; 2016: Heated steering wheel (only vehicles without load compartment fuse box)
63	Rear window sensor
64	Adaptive forward lighting
65	2009–2011: Horn; 2012–2016: Auxiliary pump (only on vehicles with stop-start system)
66	Rear window washer system
67	Fuel system control module
68	–
69	2009–2013: Battery sensor; 2014–2016: Vehicle battery sensor;
70	Rain sensor
71	2009–2011: Body electronic supply; 2012–2013: Battery sensor; 2014–2016: Vehicle battery sensor;

After changing of defective fuses close the fuse box cover and engage it by pressing. If the fuse box cover is not closed correctly, malfunctions may occur.

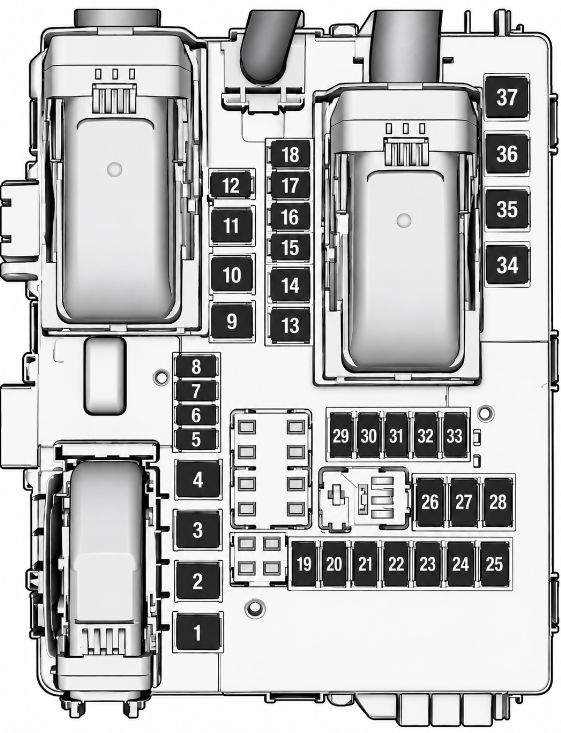

Load Compartment Fuse Box

Fuse No.	Circuit
1	2009–2015: Central locking system / Power tailgate. 2016: Central locking system / Electronic key system.
2	2009–2011: Air conditioning system. 2012–2015: Trailer module. 2016: Trailer module (Type A) / Infotainment system (Type B).
3	2009–2013: Trailer module. 2014–2016: –
4	–
5	Trailer socket
6	2009–2011: –. 2012–2015: Steering wheel heating. 2016: Heated steering wheel (only vehicles with load compartment fuse box).
7	2009–2011: –. 2012–2013: Rear power windows. 2014: –. 2015–2016: Selective catalytic reduction system.
8	2009–2011: Trailer outlet. 2012–2016: Trailer socket.
9	2009–2011: –. 2012–2016: Sunroof.
10	2009–2011: Coolant heater. 2012–2015: Central locking system / Tailgate. 2016: Central locking system / Tailgate (Type A) / Sunroof (Type B).
11	2009–2011: Power seats. 2012–2016: –
12	2009–2011: Memory seat. 2012–2014: Air conditioning system. 2015–2016: Selective catalytic reduction system.
13	2009–2011: Level control system. 2012–2016: –
14	–
15	2009–2011: –. 2012–2016: Power tailgate lock.
16	2009–2011: –. 2012–2016: Air conditioning system.
17	2009–2011: Seat heating. 2012–2014: –. 2015–2016: Selective catalytic reduction system.
18	2009–2013: Power tailgate lock. 2014: –. 2015–2016: Selective catalytic reduction system.
19	2009–2011: Sunshade switch. 2012–2016: Side obstacle detector.
20	2009–2011: Cooling fan, driver seat. 2012–2016: Side obstacle detector / Ventilated front seats.
21	2009–2011: Ignition. 2012–2015: Active damping system / High beam assist / Cruise control / Traffic sign assistant / Lane departure warning / Trailer module. 2016: Active damping system / Cruise control / Traffic sign assistant / Lane departure warning / Trailer module.
22	2009–2011: Sunshade. 2012–2015: Anti-theft alarm system. 2016: –
23	2009–2011: Anti-theft alarm system. 2012–2016: All-wheel drive / Anti-theft alarm system.
24	2009–2013: Sidelight left. 2014–2016: –
25	2009–2013: Sidelight right. 2014–2016: –
26	2009–2013: Lighting / Cornering light. 2014–2016: –
27	2009–2013: Lighting / Cornering light. 2014–2016: –
28	–
29	2009–2011: Transportation fuse. 2012–2014: Trailer module / Transportation fuse. 2015: Trailer module / Transportation fuse. 2016: Trailer module / Transportation fuse (Type A).
30	2009–2011: Transportation fuse. 2012–2016: Side obstacle detector.
31	2009–2011: Active damping system / High beam assist / Cruise control / Traffic sign assistant or detection / Lane departure warning. 2012–2013: Active damping system / High beam assist / Cruise control / Traffic sign assistant / Lane departure warning. 2014–2016: –
32	2009–2013: Side obstacle detector. 2014–2016: –
33	2009–2013: All-wheel drive. 2014–2016: –
34	Sunroof
35	2009–2013: Central locking system. 2014–2016: –
36	2009–2013: Power seats. 2014–2016: –
37	–
