The Vauxhall Mokka (2012–2016) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Mokka.

Fuse Box Location

Passenger Compartment Fuse Box

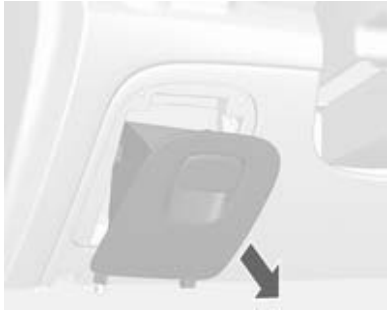

Interior fuse block is located on the underside of the driver’s side instrument panel. To access the fuses, remove the storage. To remove the storage, open and pull it.

Vauxhall Mokka (2012–2016) Passenger Compartment Fuse Box Location

Engine Compartment Fuse Box

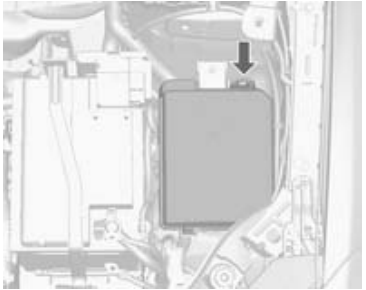

The fuse box is in the engine compartment. Disengage the cover, lift it upwards and remove.

Vauxhall Mokka (2012–2016) Engine Compartment Fuse Box Location

Load compartment fuse box

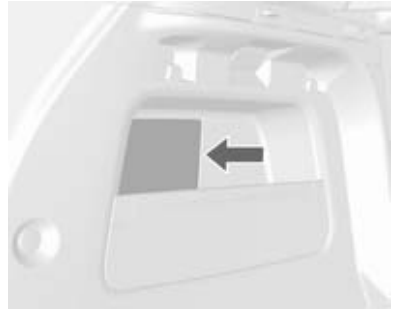

It is located in the left side of rear compartment. To access the fuses, remove the cover.

Vauxhall Mokka (2012–2016) Load compartment fuse box Location

Fuse Box Diagrams

Passenger Compartment Fuse Box

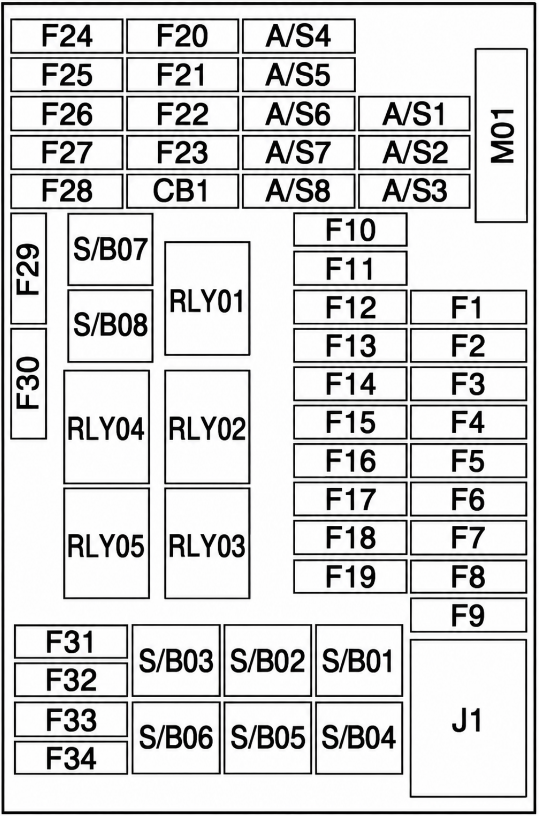

Vauxhall Mokka (2012–2016) Passenger Compartment Fuse Box Diagrams

Fuse No.Function
1Body control module
2Body control module
3Body control module
4Body control module
5Body control module
6Body control module
7Body control module
8Body control module
92012–2014: Door locks; 2015–2016: Ignition switch
10Safety diagnosis module
112012–2014: Door locks; 2015–2016: Data link connector
12Climate control
13Tailgate
14Park/Parking assist
15Lane departure warning / Interior mirror
16Adaptive forward lighting
17Power window – driver
18Rain sensor
192012–2014: Spare; 2015–2016: Body control module / Regulated voltage control
20Steering wheel
212012–2014: Transmission control module; 2015–2016: AC accessory power outlet / Automatic transmission
222012–2014: Cigarette lighter; 2015–2016: Cigarette lighter / DC accessory power outlet
23Spare
24Spare
25Spare
262012: Safety diagnosis module; 2013–2014: Display; 2015–2016: Spare
272012–2014: Instrument panel cluster; 2015–2016: Instrument panel cluster / Auxiliary heater / Clutch switch
282012–2014: Adaptive forward lighting; 2015–2016: Adaptive forward lighting / Voltage converter / Headlamp switch
29Spare
30Spare
31Instrument panel cluster
322012–2014: Infotainment / Auxiliary / Power outlet; 2015–2016: Infotainment system / Chime
33Display / Infotainment system
34OnStar UHP/DAB
S/B 01Spare
S/B 02Spare
S/B 03Power windows – front
S/B 04Power windows – rear
S/B 05Logistic mode
S/B 06Spare
S/B 07Spare
S/B 08Spare

Engine Compartment Fuse Box

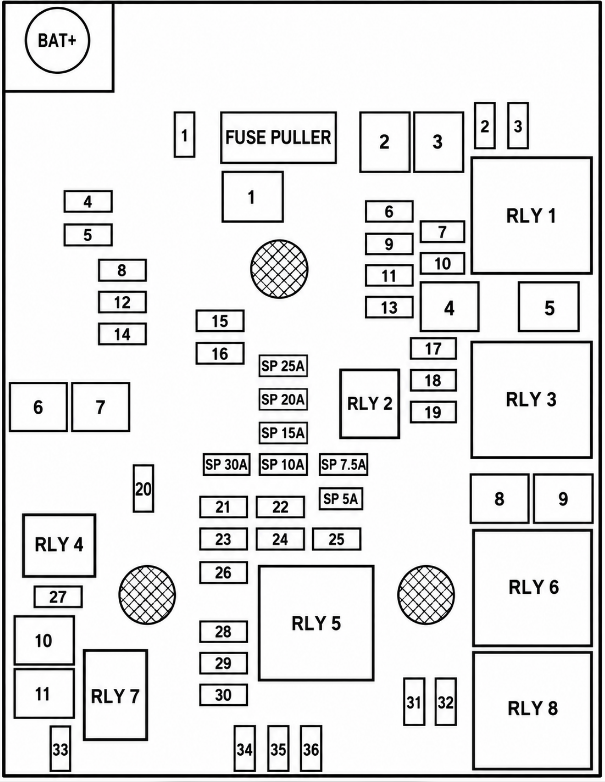

Vauxhall Mokka (2012–2016) Engine Compartment Fuse Box Diagrams

Fuse No.Function
Mini 1Sunroof
Mini 2Exterior mirrors
Mini 3–
Mini 4–
Mini 5Electrical brake control module
Mini 6Intelligent battery sensor
Mini 7–
Mini 8Transmission control module
Mini 92012–2014: Body control module; 2015–2016: –
Mini 10Headlight levelling
Mini 11Rear window wiper
Mini 12Heated rear window
Mini 13Headlight actuator (left hand)
Mini 14Heated exterior mirrors
Mini 15–
Mini 16Seat heating
Mini 17Transmission control module
Mini 18Engine control module
Mini 19Fuel pump
Mini 20–
Mini 21Cooling fan
Mini 22–
Mini 23Ignition coil / Engine control module
Mini 24Washer pump
Mini 25Headlamp actuator (right hand)
Mini 262012–2014: Engine control module; 2015–2016: Engine control sensors
Mini 27–
Mini 282012–2014: Engine control module; 2015–2016: Ignition
Mini 292012–2014: Engine control module; 2015–2016: Ignition
Mini 30Exhaust system
Mini 31Left-hand high beam
Mini 32Right-hand high beam
Mini 33Engine control module
Mini 34Horn
Mini 352012–2014: Climate control, air conditioning system; 2015–2016: Air conditioning system
Mini 36Front fog lamp
J-Case 1Electrical brake control module
J-Case 2Front wiper
J-Case 32012–2014: Engine control module; 2015–2016: Power module
J-Case 42012–2014: Engine control module; 2015–2016: Power terminal of instrument panel fuse box
J-Case 5–
J-Case 6Fuel heater
J-Case 7–
J-Case 8Cooling fan
J-Case 9Cooling fan
J-Case 10Engine control module / Glow plug
J-Case 11Starter

Load compartment fuse box

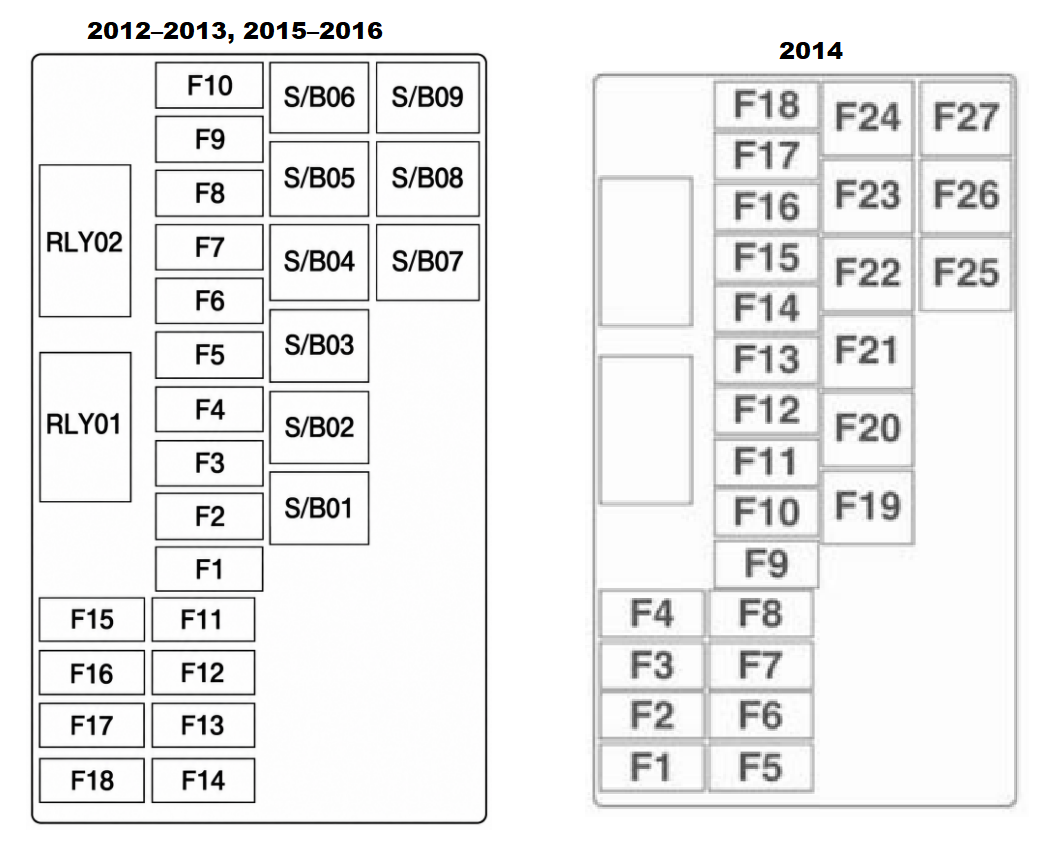

Vauxhall Mokka (2012–2016) Load compartment fuse box Diagrams

Fuse No.Function
1Seat, lumbar support, driver (2012–2013, 2015–2016); LPG system (2014)
2Seat, lumbar support, passenger (2012–2013, 2015–2016); Interior mirror / Rear view camera (2014)
3Amplifier (2012–2013, 2015–2016); Water in fuel sensor (2014)
4Trailer socket (2012–2013, 2015–2016); Spare (2014)
5All-wheel drive (2012–2013, 2015–2016); Trailer socket (2014)
6Display (2012–2013); Heated steering wheel (2014); Spare (2015–2016)
7Spare (2012–2014); LPG system (2015–2016)
8Trailer (2012–2013); Trailer control module (2014); Spare (2015–2016)
9Spare (2012–2013, 2015–2016); Seat, lumbar support, driver (2014)
10Spare (2012–2013, 2015–2016); Seat, lumbar support, passenger (2014)
11Trailer (2012–2013); Amplifier (2014); Trailer control module (2015–2016)
12Navigation (2012–2013); Trailer socket (2014); Spare (2015–2016)
13Heated steering wheel (2012–2013, 2015–2016); All-wheel drive (2014)
14Trailer socket (2012–2013, 2015–2016); Spare (2014)
15Steering wheel (2012–2013); LPG system (2014); Spare (2015–2016)
16Water in fuel sensor (2012–2012013, 2015–2016); Spare (2014)
17Interior mirror (2012–2013); Spare (2014); Interior mirror / Rear view camera (2015–2016)
18Spare (2012–2014); LPG system (2015–2016)
(S/B) 1 / 19Power seat, driver
(S/B)2 / 20Power seat, passenger
(S/B) 3 / 21Trailer control module
(S/B) 4 / 22Voltage converter
(S/B) 5 / 23Battery (2012–2013, 2015–2016); Ignition system (2014)
(S/B) 6 / 24Headlight washer
(S/B) 7 / 25Spare
(S/B)8 / 26Spare
(S/B) 9 / 27Spare
