Vauxhall Insignia B (2020-2022) Fuse Box Location & Diagrams
The Vauxhall Insignia B (2020–2022) uses fuse boxes to protect important electrical circuits and components. Knowing the correct fuse locations and assignments makes troubleshooting electrical problems easier. This guide covers fuse box locations, diagrams, fuse ratings, and protected components for the Vauxhall Insignia B.
Fuse Box Location
Passenger Compartment Fuse Box

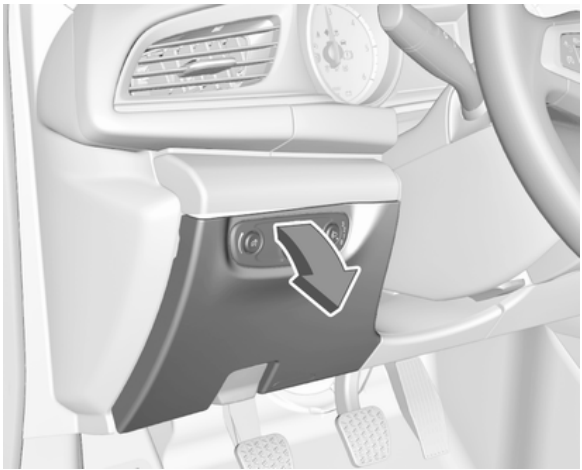

In left-hand drive vehicles, the fuse box is behind a cover in the instrument panel. Disengage cover at the side and remove.

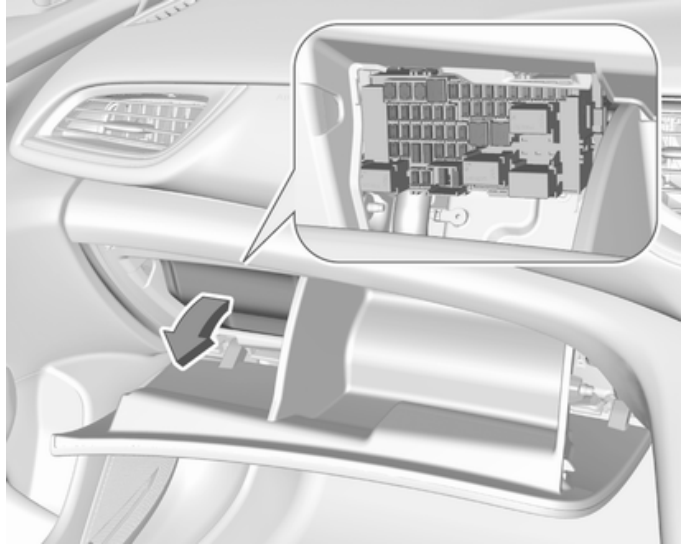

In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover.

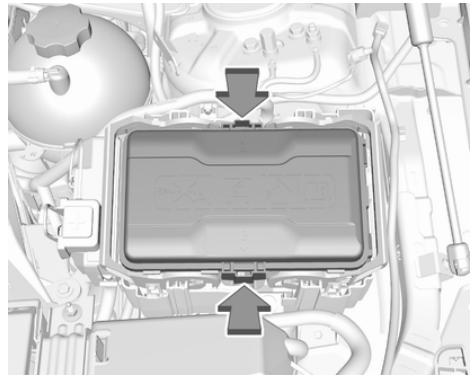

Engine Compartment Fuse Box
The fuse box is in the front left of the engine compartment. Disengage the cover and remove it.

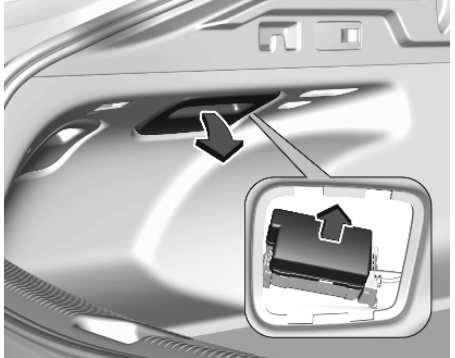

Load Compartment Fuse Box
The fuse box is located on the left side of the load compartment behind a cover. Remove the cover. Disengage the fuse box cover and remove it.
Notice: Not all fuses in this fuse box may be fitted.
Fuse Box Diagrams

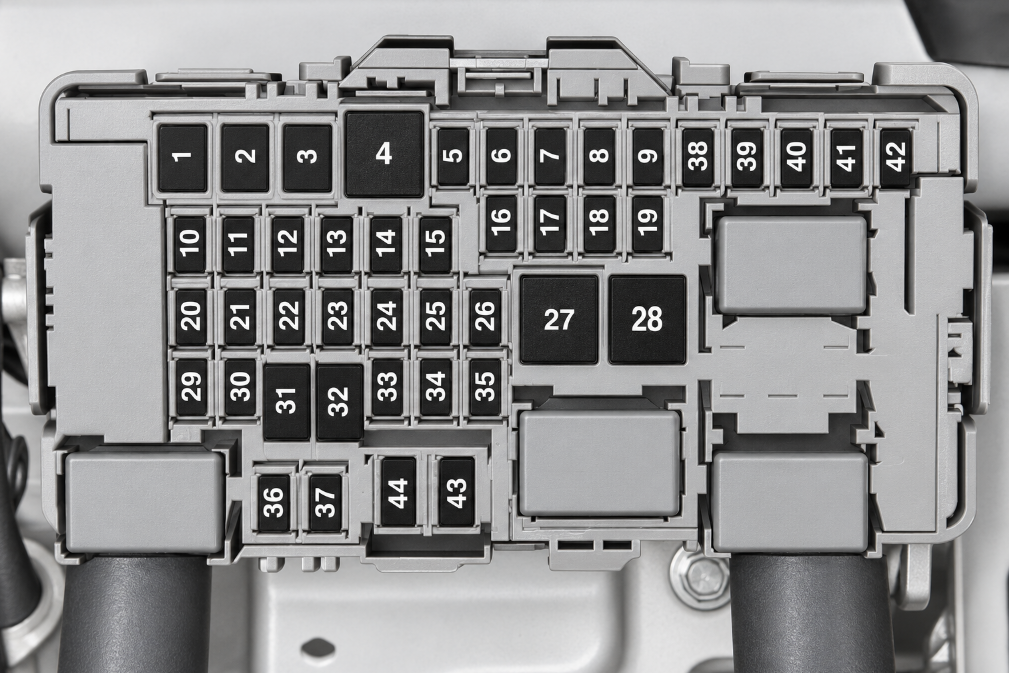

Passenger Compartment Fuse Box
| No. | Circuit |
|---|---|
| 1 | Left power window |
| 2 | Right power window |
| 3 | Body control module |
| 4 | Climate control fan |
| 5 | Body control module |
| 6 | Trailer provisions |
| 7 | LED headlight left |
| 8 | Body control module |
| 9 | Engine control module |
| 10 | Head-up display |
| 11 | NOx reduction / Pipe heater |
| 12 | NOx reduction / Soot sensor |
| 13 | AdBlue module |
| 14 | Heated steering wheel |
| 15 | Transmission control module |
| 16 | Amplifier |
| 17 | LED headlight right |
| 18 | Body control module |
| 19 | AdBlue module |
| 20 | Body control module |
| 21 | Body control module |
| 22 | Body control module |
| 23 | Electric steering wheel lock |
| 24 | Airbag |
| 25 | Diagnostic connector |
| 26 | Power outlet load compartment |
| 27 | ABS |
| 28 | Police or taxi provision |
| 29 | Fuel pump |
| 30 | Fuel pump |
| 31 | Steering wheel controls |
| 32 | Ignition switch |
| 33 | Climate control |
| 34 | Central gateway module |
| 35 | AUX / USB connector |
| 36 | Wireless charger |
| 37 | Rear wiper |
| 38 | Emergency call |
| 39 | Display |
| 40 | Parking assist |
| 41 | Overhead console |
| 42 | Infotainment System |
| 43 | Police car systems |
| 44 | Power outlet |

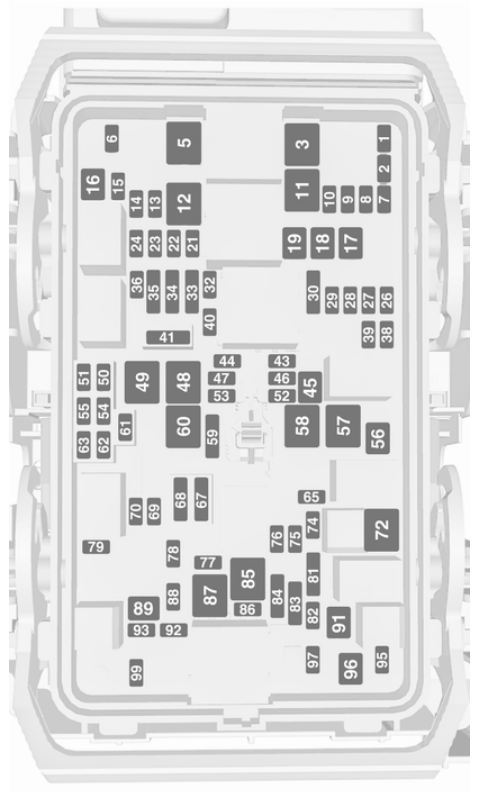

Engine Compartment Fuse Box
| No. | Circuit |
|---|---|
| 1 | – |
| 2 | – |
| 3 | ABS |
| 4 | – |
| 5 | Load compartment fuse box |
| 6 | Tailgate |
| 7 | Rear fog light / Front fog lights |
| 8 | Memory module |
| 9 | Heated windscreen |
| 10 | Seat lumbar |
| 11 | DC / DC battery |
| 12 | Heated rear window |
| 13 | Heated mirror |
| 14 | – |
| 15 | LED headlights |
| 16 | Front wiper |
| 17 | Power seat, passenger |
| 18 | Sunblind |
| 19 | Power seat, driver |
| 20 | – |
| 21 | Sunroof |
| 22 | Rear wiper |
| 23 | Rear seat power folding |
| 24 | – |
| 25 | – |
| 26 | Transmission control module |
| 27 | Ignition / Instrument panel |
| 28 | – |
| 29 | Rear view camera / Air vent |
| 30 | Malfunction indicator light / Trailer |
| 31 | – |
| 32 | – |
| 33 | Seat heating front |
| 34 | Seat heating rear |
| 35 | Damping / All-wheel drive |
| 36 | Fuel system |
| 37 | – |
| 38 | – |
| 39 | – |
| 40 | Steering wheel lock |
| 41 | – |
| 42 | – |
| 43 | Heated steering wheel |
| 44 | Headlight range adjustment |
| 45 | – |
| 46 | Engine control module |
| 47 | – |
| 48 | DC/DC converter |
| 49 | Rear door control module |
| 50 | – |
| 51 | – |
| 52 | – |
| 53 | – |
| 54 | – |
| 55 | – |
| 56 | Starter |
| 57 | Load compartment fuse box |
| 58 | – |
| 59 | Alarm siren |
| 60 | Cooling fan |
| 61 | – |
| 62 | – |
| 63 | – |
| 64 | – |
| 65 | Climate control |
| 66 | – |
| 67 | – |
| 68 | – |
| 69 | – |
| 70 | – |
| 71 | – |
| 72 | Starter |
| 73 | – |
| 74 | Transmission control module / Engine cooling |
| 75 | Engine control module |
| 76 | Exhaust reduction system |
| 77 | – |
| 78 | Horn |
| 79 | Washer system |
| 80 | – |
| 81 | Engine control module |
| 82 | – |
| 83 | Ignition coil |
| 84 | Ignition coil |
| 85 | Other fuse area |
| 86 | – |
| 87 | Diesel fuel heating |
| 88 | Air shutter |
| 89 | – |
| 90 | – |
| 91 | – |
| 92 | – |
| 93 | Electronic key system |
| 94 | – |
| 95 | Coolant pump |
| 96 | Diesel fuel heating |
| 97 | – |
| 98 | – |
| 99 | – |
After having changed defective fuses, close the fuse box cover and press until it engages. If the fuse box cover is not closed correctly, malfunction may occur.

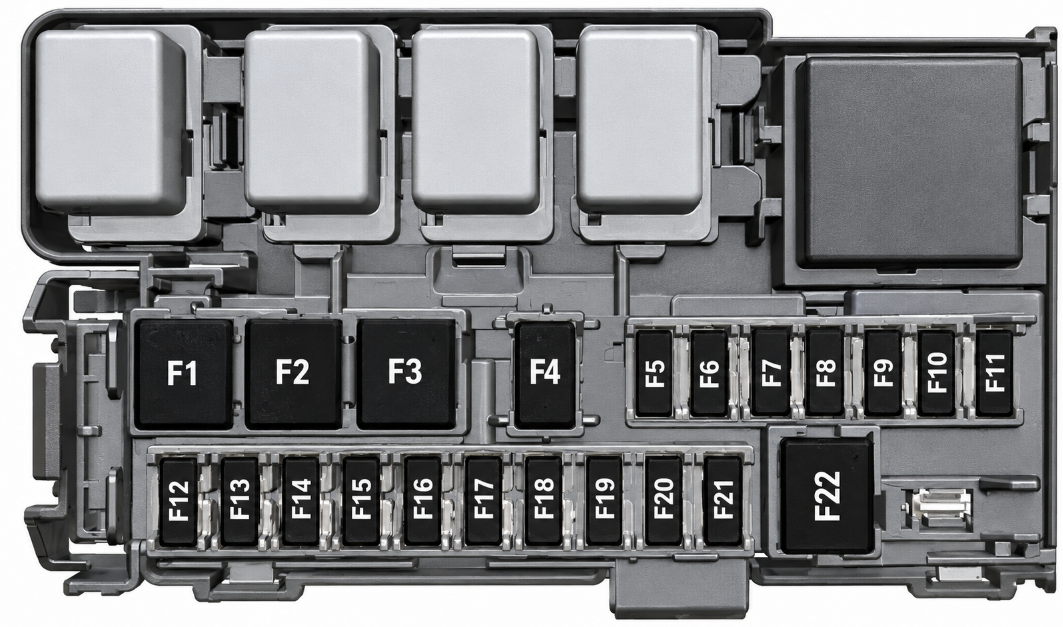

Load Compartment Fuse Box
| No. | Circuit |
|---|---|
| 1 | – |
| 2 | – |
| 3 | Trailer interface module |
| 4 | – |
| 5 | Power tailgate hands-free sensor |
| 6 | – |
| 7 | – |
| 8 | Power tailgate |
| 9 | – |
| 10 | – |
| 11 | Trailer outlet |
| 12 | Seat heating front left |
| 13 | Seat heating front right |
| 14 | – |
| 15 | Seat heating rear 1 |
| 16 | Seat heating rear 2 |
| 17 | – |
| 18 | Trailer outlet |
| 19 | – |
| 20 | – |
| 21 | – |
| 22 | Power tailgate |
After having changed defective fuses, close the fuse box cover and press until it engages.
